Запчасти Case IH 1644 (7-02) - MASTER BRAKE, CONTROLS (5.1) - BRAKES

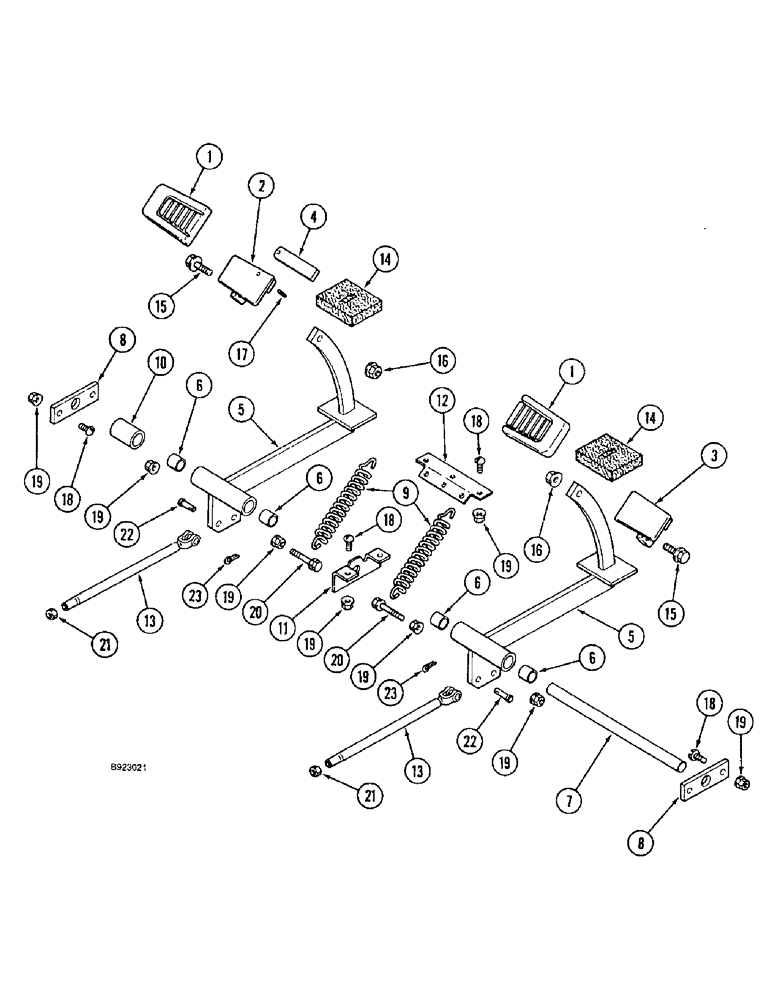

Схема запчастей Case IH 1644 - (7-02) - MASTER BRAKE, CONTROLS (5.1) - BRAKES
20
15
16
6
14
19
2
9
5
13
15
21
1
19
6
3
7
19
1
8
20
8
14
23
19
23
19
13
4
16
21
18
18
17
11
12
6
19
18
22
19
22
10
19
5
18
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

863426R1

PAD

pedal brake

2шт.

2

1321926C1

PEDAL

brake, left hand

1шт.

3

1321927C1

PEDAL

brake, right hand

1шт.

4

614251R1

BAR

brake locking

1шт.

5

1321925C91

SUPPORT

ASSEMBLY brake pedal, Includes: Ref. 6

2шт.

6

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

3/4 inch (19 mm) diameter pedal support

2шт.

7

1280117C1

SHAFT

support pivot

1шт.

8

1281794C1

PLATE

pivot shaft support

2шт.

9

398763R2

SPRING

pedal return

2шт.

10

1280116C1

SPACER

support pivot

1шт.

11

1321383C1

ANGLE

support pivot shaft

1шт.

12

1327560C1

ANGLE

spring hook

1шт.

13

1281882C2

LINK ASSY.

brake

2шт.

14

1321935C1

SEAL

pedal

2шт.

15

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT hex flange, polyseal, 3/8 NC x 1-1/4 inch

2шт.

16

1327765C1

LOCK NUT

hex flange, self-locking, 3/8 inch NC

2шт.

17

19938R1

PIN,1/8" x 7/8", Coiled

1/8" x 7/8", Coiled

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

9шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

13шт.

20

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

829-1310

NUT,M10, Cl 10

Hex

2шт.

22

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

Hardened

2шт.

23

432-612

COTTER PIN,3/32" x 3/4"

2шт.
