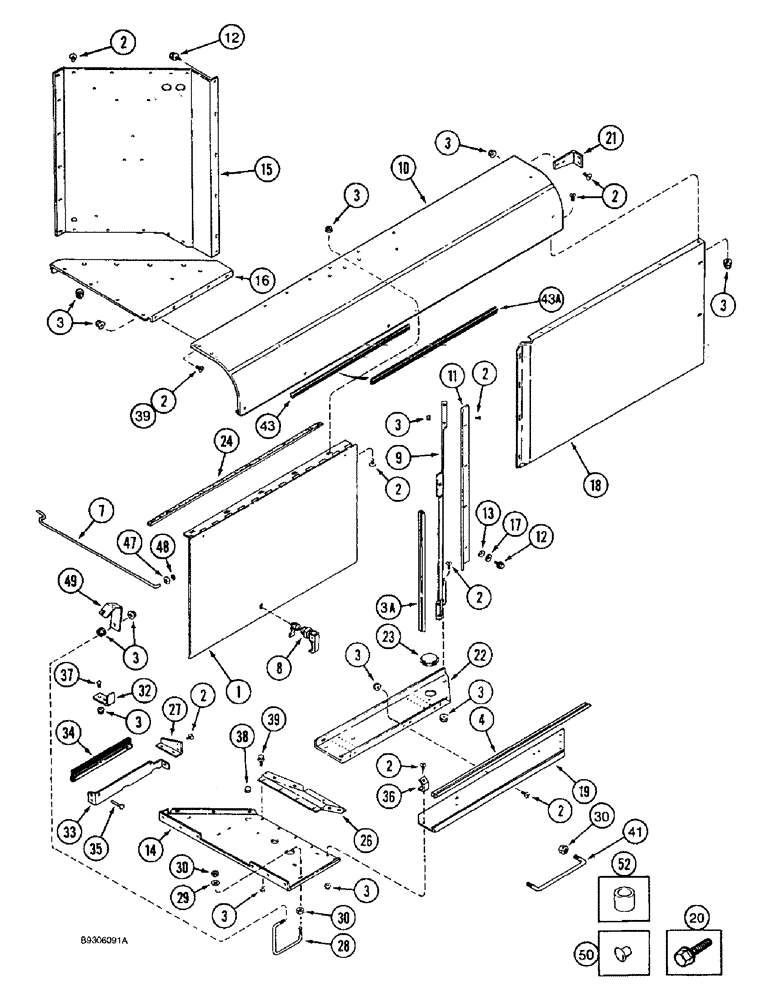

Запчасти Case IH 1644 (2-10) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1979861C2

TRAP DOOR

radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

57шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

90шт.

3a

1347460C1

DOOR SEAL,648mm L

25-1/8 inch (648 mm) long radiator access door side

2шт.

4

1347459C2

DOOR SEAL

36 inch (916 mm) long radiator access door side

1шт.

7

1979919C1

STEM

ROD door

1шт.

8

1302494C2

LATCH

access door

1шт.

9

1979856C2

DEFLECTOR

screen chute

1шт.

10

1977122C7

CHUTE (DOWNWARD)

air sceen, upper

1шт.

11

1970200C1

SUPPORT

deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

20шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

14

1541788C3

SUPPORT

lower, rear replaces 1541788C2

1шт.

15

1979227C1

SHEET

SUPPORT screen chute, rear

1шт.

16

1541858C2

SUPPORT

screen, upper replaces 1541858C1

1шт.

17

492-11031

LOCK WASHER,5/16"

5шт.

18

1979854C1

SHEET ASSY.

PANEL - radiator inlet

1шт.

19

1979853C2

CHUTE (DOWNWARD)

bottom rear outlet

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

13шт.

21

1317704C1

SUPPORT

upper chute mounting

1шт.

22

1979471C4

SUPPORT

radiator clean out

1шт.

23

1302758C1

PLUG

plastic 89 mm OD

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - 37-1/2 inch long, door hinge, cut from 1338148CX bulk seal, in this Figure

1шт.

26

1315674C2

SUPPORT

chute, lower rear

1шт.

27

1968548C1

SUPPORT

BRACKET chute, discharge side

1шт.

28

1979918C1

HANDLE

assist

1шт.

29

495-81024

WASHER,17/32" x 1 1/4" x .060"

flat 17/32 x 1-1/4 x 1/16 inch

1шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

32

1347430C1

SUPPORT

BRACKET latch retainer door

1шт.

33

1968546C2

SUPPORT

discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH block off

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

mandrel

1шт.

36

561915R1

BRACKET

lower front

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head 5/16 NC x 3/4 inch

2шт.

38

1970461C1

GROMMET

rubber 1-3/8 x 2 x 5/16

5шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

41

1251832C2

HANDLE

assist

1шт.

43

1315670C3

SEAL

29 inch (738 mm) long radiator upper and lower, if used

2шт.

43a

128719A1

SEAL

RUBBER SEAL 31-7/8 inch (810 mm) long, cut from F43996 bulk seal if used, in this Figure, radiator upper and lower

2шт.

47

95-21044

WASHER,3/8"

flat 7/16 x 1 x 5/64 inch

3шт.

48

437157R1

SNAP RING,#37, Ext

#37, Ext

1шт.

49

1347199C2

GUIDE

radiator door

1шт.

50

205-82

HOLE PLUG BUTTON,13/32"

button 13/32 inch ID if used

2шт.

50

205-77

HOLE PLUG BUTTON,11/32"

button 11/32 inch ID

2шт.

52

D81147

SPACER

1/2 x 3/4 x 1-1/4 inch door

1шт.

1338148CX

SEAL

bulk, foam, adhesive-backed 600 inch (15240 mm) long

1шт.

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

RUBBER SEAL bulk, adhesive-backed 3/4 (19) x 1 (25) x 36-3/4 inch (932 mm) long

1шт.
