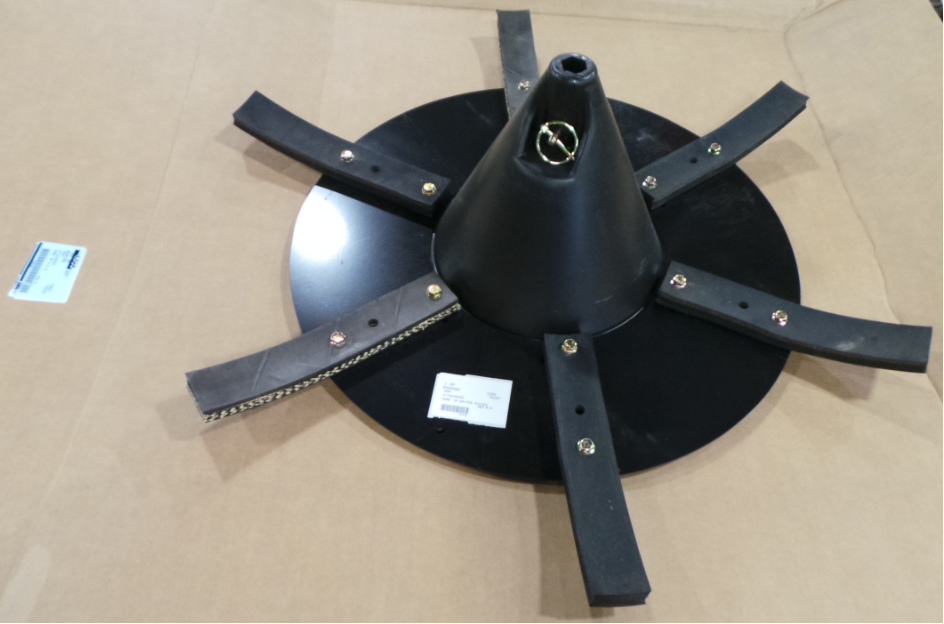

Запчасти Case IH 1644 (9F-18[01]) - KIT ATTACH STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

B94086

ATTACHMENT

Incl 2 - 9

1шт.

2

120270A2

PIN,9.52mm OD x 78mm L

1шт.

3

188218C6

CONE,Spreader Support

1шт.

4

192252C1

RETAINER

1шт.

5

194198C2

SKID/SHOE

6шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

12шт.

7

86512169

BOLT,Hex Flg, 5/16" - 18 x 1 1/4"

6шт.

8

86512170

BOLT,Hex Flg, 5/16" - 18 x 1 1/2"

6шт.

9

86508947

LINCH PIN,18.8mm OD

2шт.
