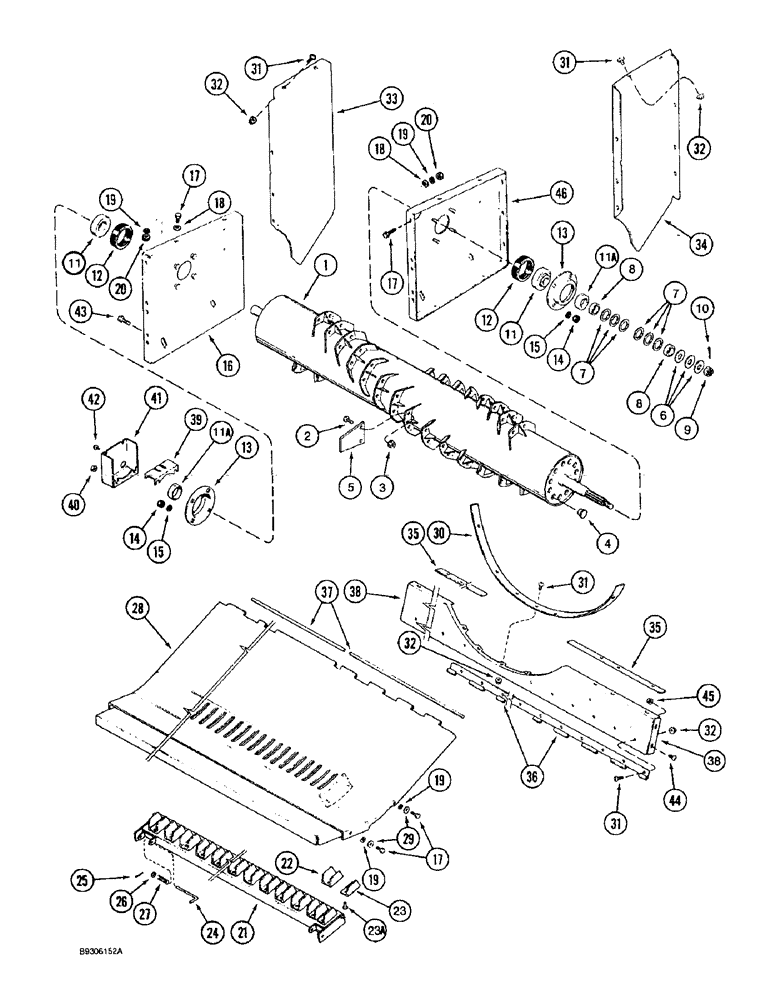

Запчасти Case IH 1644 (9F-16) - STRAW CHOPPER, ROTOR AND CONCAVE (19) - STRAW SPREADER & CHOPPER

1

185099C93

ROTOR ASSY.

straw chopper, Includes: Ref. 2 - 4

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

plastic closure

18шт.

5

197124C1

PACKAGE

BLADE straw chopper rotor, set of 2

14шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

flat, 29/32 x 2 x 5/32 inch

2шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

flat, 29/32 x 2 x 7/64 inch

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

flat, 1-11/32 x 2 x 7/64 inch

6шт.

8

181156C1

SPACER

SPACER rotor

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

ball flange

2шт.

11a

455112R11

COLLAR

locking, bearing

2шт.

12

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

bearing

2шт.

13

936130R2

FLANGE

bearing, replaces 936130R1

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

8шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

16

181096C1

SUPPORT

rotor, left hand

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

19шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

185135C91

BAR

ASSEMBLY, straw chopper concave, Includes: Ref. 22 - 23A

1шт.

22

1302763C1

KNIFE

BLADE double chopper concave

12шт.

23

1302764C1

KNIFE

BLADE single chopper concave

1шт.

23a

104236

RIVET,4.76mm OD x 15.88mm L

26шт.

24

186736C3

ROD

PIN latch, replaces 186736C2 and 186736C2

2шт.

25

432-616

COTTER PIN,3/32" x 1"

2шт.

26

495-51041

WASHER,3/8"

flat, 13/32 x 47/64 x 1/16 inch

1шт.

27

540815R1

SPRING

lock pin concave bar latch

2шт.

28

185141C3

PLATE

PAN straw chopper deflector, replaces 185141C2 bottom

1шт.

29

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

30

182898C1

SUPPORT

PLATE filler cage, rear

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

29шт.

32

231-5146

FLANGE NUT,3/8"-16

29шт.

33

182946C1

DEFLECTOR

discharge, left hand

1шт.

34

182947C1

DEFLECTOR

discharge, right hand

1шт.

35

182891C1

PLATE

bulkhead filler, rear

2шт.

36

182894C1

HINGE

pan, lower hinge

1шт.

37

182977C1

ROD

lower hinge

1шт.

38

182929C1

SUPPORT

cage, lower rear

1шт.

39

181209C1

SUPPORT

sensor

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

4шт.

41

181208C3

SUPPORT

COVER sensor

1шт.

42

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self tapping, hex washer head, 1/4-14 x 1/2 inch

2шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

44

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

46

181097C1

SUPPORT

rotor, right hand

1шт.
