Запчасти Case IH 1644 (9F-08) - STRAW SPREADER, CORN COMBINE, PULLEY SHIELD AND BELT GUIDE (19) - STRAW SPREADER & CHOPPER

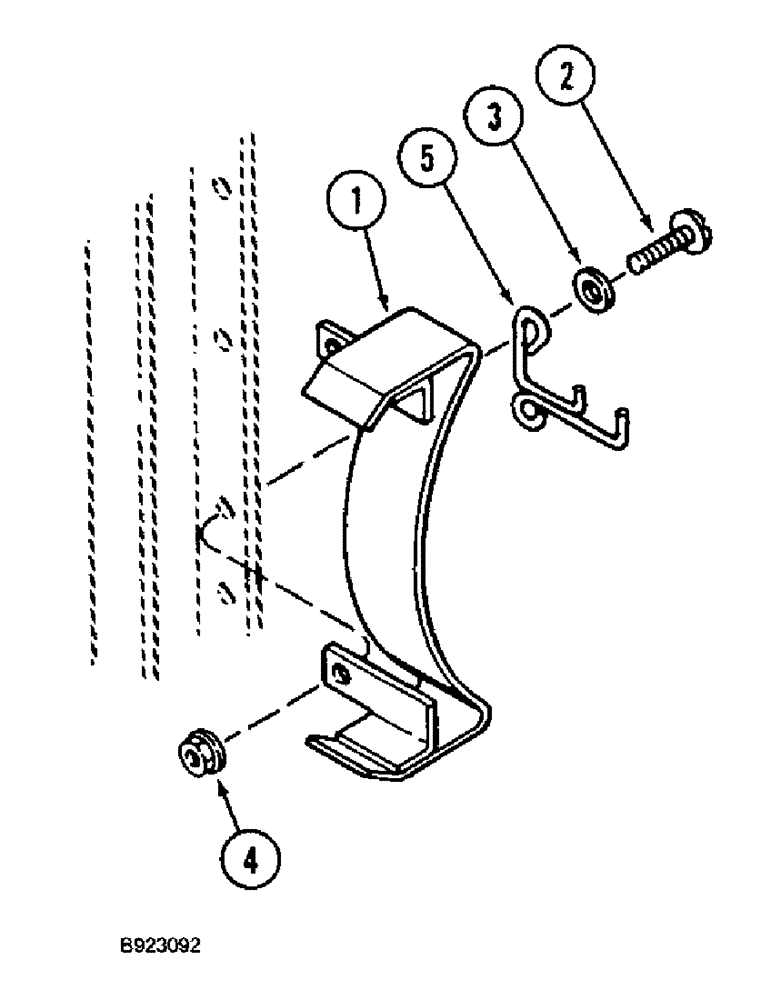

Схема запчастей Case IH 1644 - (9F-08) - STRAW SPREADER, CORN COMBINE, PULLEY SHIELD AND BELT GUIDE (19) - STRAW SPREADER & CHOPPER
1
3
5
2
4

Артикул

Название

Примечание

Количество

1

1324423C1

GUARD

straw spreader pulley

1шт.

2

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

4

231-5146

FLANGE NUT,3/8"-16

3шт.

5

1324419C1

GUIDE

belt

1шт.

Выбрано товаров: 5
