Запчасти Case IH 1644 (9F-04) - STRAW SPREADER, DRIVE (19) - STRAW SPREADER & CHOPPER

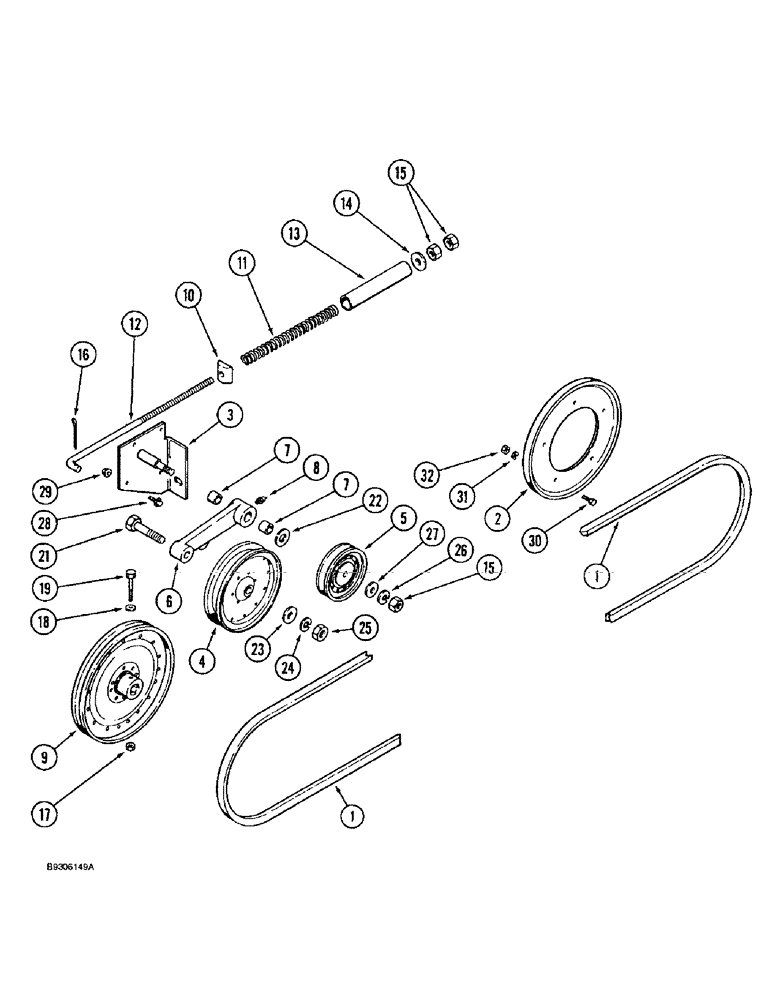

Схема запчастей Case IH 1644 - (9F-04) - STRAW SPREADER, DRIVE (19) - STRAW SPREADER & CHOPPER
21
6
30
17
24
1
2
22
26
18
29
15
31
19
28
4
16
5
25
14
7
27
23
8
1
11
12
15
13
7
10
3
9
32

Артикул

Название

Примечание

Количество

1

196371C1

BELT,0.630" W x 222.59" L

Drive

1шт.

2

566516R92

PULLEY,256.46mm OD

drive, 9-3/4 inch O.D.

1шт.

3

1315275C1

SUPPORT ASSY.

drive tightener

1шт.

4

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

drive tightener, 6-3/4 inch O.D.

1шт.

5

1315269C1

PULLEY

drive, 4-3/8 inch O.D.

1шт.

6

1979591C1

LEVER

ASSEMBLY, tightener arm, Includes: Ref. 7

1шт.

7

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

tightener lever

2шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

181196C2

PULLEY

driven, 10 inch O.D. spreader

1шт.

10

194652C1

PIVOT

rod

1шт.

11

1315223C1

SPRING

spreader drive

1шт.

12

181152C1

ROD

adjusting spreader drive idler

1шт.

13

1315197C1

SPACER

spreader drive

1шт.

14

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

16

432-816

COTTER PIN,1/8" x 1"

1шт.

17

232-4115

LOCK NUT,5/16"-18, GC

1шт.

18

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

flat, 11/32 x 11/16 x 3/32 inch, hardened

1шт.

19

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

1шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

1шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

1шт.

23

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

31

492-11031

LOCK WASHER,5/16"

5шт.

32

425-105

NUT,5/16"-18, G5

5шт.

Выбрано товаров: 31
