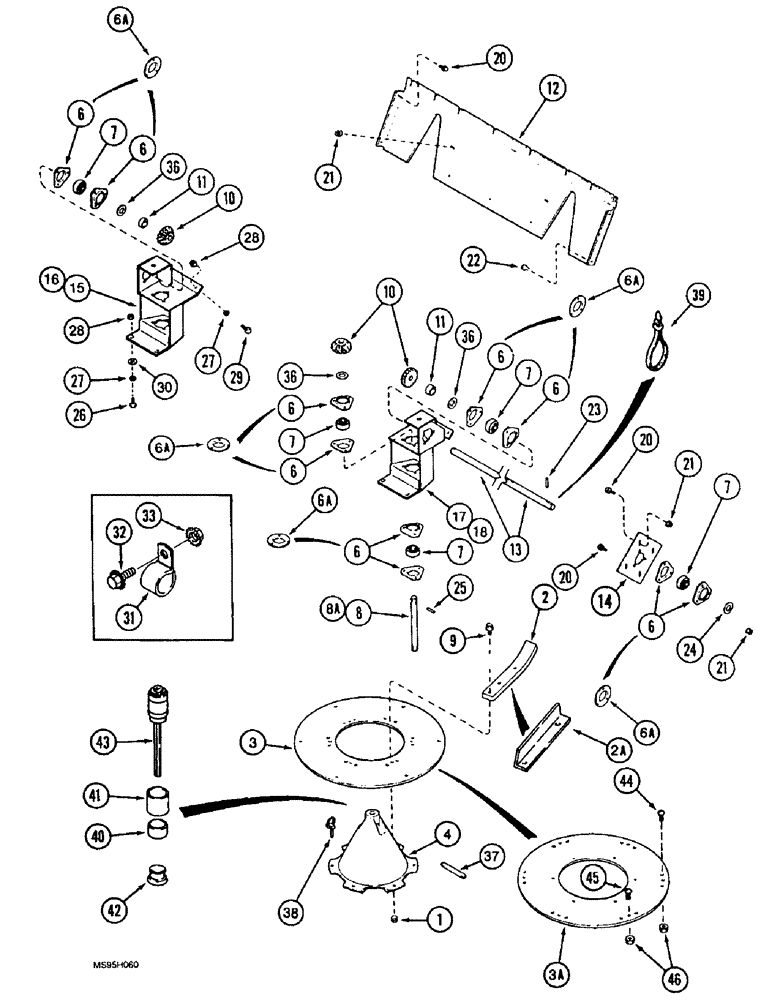

Запчасти Case IH 1644 (9F-02) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

24шт.

2

194198C2

SKID/SHOE

STRAP rubber models with straw spreader

12шт.

2a

111179A1

BAT

models with straw and chaff spreader

12шт.

3

192252C1

RETAINER

strap models with straw spreader

2шт.

3a

140190A1

DISC

RETAINER bat models with straw and chaff spreader

2шт.

4

188218C6

CONE,Spreader Support

SUPPORT straw spreader, replaces 188218C5, and 188218C4

2шт.

6

571424R1

FLANGE

bearing used with Refs. 15 and 17 supports

14шт.

6a

462360R1

FLANGED BEARING

bearings used with Refs. 16 and 18 supports

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

straw spreader

7шт.

8

192240C1

SHAFT

straw spreader 10-1/2 inch long used with Ref. 15 and 17

2шт.

8a

128440A1

SHAFT

straw spreader, 12 inch long, used with Ref. 16 and 18 supports

2шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

BOLT hex serrated flange, 5/16 NC x 1-1/4 inch

24шт.

185410C1

GEAR-SET

two piece, 14 teeth spreader drive, Includes: Ref. 10

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR spreader drive, 14 tooth

2шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

1-1/4 x 5/8 inch tube, cross bar

2шт.

12

195138C5

SUPPORT

dust shield

1шт.

13

192242C4

SHAFT

BAR cross

1шт.

14

186506C1

SUPPORT

PLATE bearing spreader

1шт.

15

1345024C1

SUPPORT

spreader drive, left hand, Serial Range: -JJC0098060

1шт.

16

109487A1

SUPPORT

spreader drive, left hand, Start Serial: JJC0098060

1шт.

17

1345025C1

SUPPORT

spreader drive, right hand, Serial Range: -JJC0098060

1шт.

18

109488A1

SUPPORT

spreader drive, right hand, Start Serial: JJC0098060

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

38-32424

PIN,3/8" x 1 1/2", Coiled

3/8" x 1 1/2", Coiled

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

flat, 1-1/32 x 1-1/2 x 1/32 inch

1шт.

25

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

27

492-11031

LOCK WASHER,5/16"

8шт.

28

425-105

NUT,5/16"-18, G5

8шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

30

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

31

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

lock retainer

2шт.

38

A33497

LINCH PIN,4.76mm OD Pin

lock klik

4шт.

39

702093C1

CABLE TIE

CABLE STRAP

6шт.

40

140430A1

COUPLING

anti wrap models with straw and chaff spreader

2шт.

41

140431A1

TUBE,48.26 mm OD, 75 mm Length

PIPE, 1-3/4 (45) ID x 1-15/16 (48) O.D. x 3 inch (75 mm) long, models with straw and chaff spreader

2шт.

42

140432A1

BOOT

BOOT coupler models with straw and chaff spreader

2шт.

43

108000A1

COUPLING

vertical shaft models with staw and chaff spreader

2шт.

44

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch used with Ref. 2A bat and 3A retainer

12шт.

45

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch used with Ref. 2 a bat and 3A retainer

12шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with Ref. 2A bat and 3A retainer

24шт.
