Запчасти Case IH 1644 (2-08) - ROTARY AIR SCREEN (01) - ENGINE

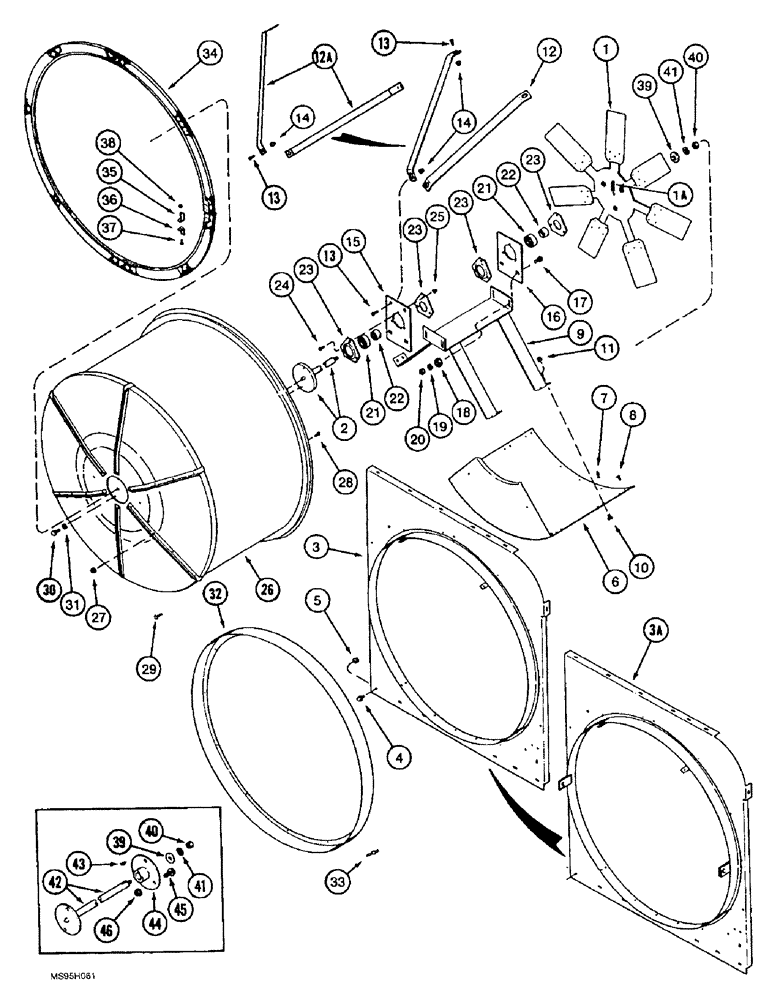

Схема запчастей Case IH 1644 - (2-08) - ROTARY AIR SCREEN (01) - ENGINE
1
3
7
11
30
28
40
26
45
3
38
39
31
42
23
21
34
39
19
13
4
13
1a
22
23
25
8
23
37
13
33
23
5
12
24
14
15
3a
41
32
43
44
12a
9
46
36
40
2
29
21
22
14
18
20
6
10
17
41
16
35

Артикул

Название

Примечание

Количество

1347257C1

FAN,7 Blades, 685.8mm OD

ASSEMBLY rotary air screen, Includes: Ref. 1 and 1A

1шт.

1

1957272C2

FAN

rotary air screen

1шт.

1a

Q5024

KEY,3/16" Sq x 1", Par

Welded on

1шт.

2

1347255C1

SHAFT

fan

1шт.

3

1317755C4

SUPPORT

rotary air screen, Replaced by 1317755C6

1шт.

3a

1317755C6

ADAPTER

SUPPORT rotary air screen, Replaces 1317755C4

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

17шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

19шт.

6

194224C1

BAFFLE ASSY.

rotary air screen

1шт.

7

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 1/2 inch

3шт.

8

104235

RIVET,FH, 3/16" x 1/2"

4шт.

9

194226C2

SUPPORT

bearing, lower

1шт.

10

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

8шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

12

194221C2

STAY

SUPPORT bearing, upper

2шт.

12a

175258A1

SUPPORT

rear bearing

2шт.

13

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

164605C1

LARGE PLATE

PLATE, LARGE SUPPORT bearing flange, rear

1шт.

16

164604C1

BAR

SUPPORT bearing flange, front

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

18

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

4шт.

19

492-11031

LOCK WASHER,5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

4шт.

21

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

ball shaft, rotary air screen

2шт.

22

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

lock, bearing, Replaces 455958R11

2шт.

23

H333534

FLANGED BEARING

bearing

4шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

26

1977217C1

SIEVE

ASSEMBLY rotary screen, fine

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

28

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

12шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 inch, flat head solid

12шт.

30

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

1338011C1

SEALING RING

RETAINER brush, seal

1шт.

33

201946C1

RIVET,Pop, 3/16" x .325"

mandrel, steel, 3/16 diameter x 1/4 inch

12шт.

34

164615C92

BRUSH, COMMUTATOR

BRUSH ASSEMBLY rotary air screen, Includes: Ref. 35 - 38

1шт.

35

164616C1

ANGLE

CLIP brush, short

1шт.

36

164617C1

ANGLE

CLIP brush, long

1шт.

37

470-11016

SCREW,Pan HD, #10 - 24 x 1"

machine, pan head slotted, No. 10 NC x 1 inch

1шт.

38

86625057

NUT,#10-24, GB

1шт.

1338452C1

SET OF PARTS

KIT repair, fan hub and shaft, Includes: Ref. 39 - 40

1шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

40

125-10002

SPECIAL NUT,3/8"-16, G5, LH

1шт.

41

632019R1

LOCK WASHER,3/8"

L.H. twist 3/8"

1шт.

42

1968544C2

SHAFT ASSY.

rotary air screen fan

1шт.

43

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

44

1338442C1

HUB ASSY.

rotary screen fan

1шт.

45

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

Выбрано товаров: 52
