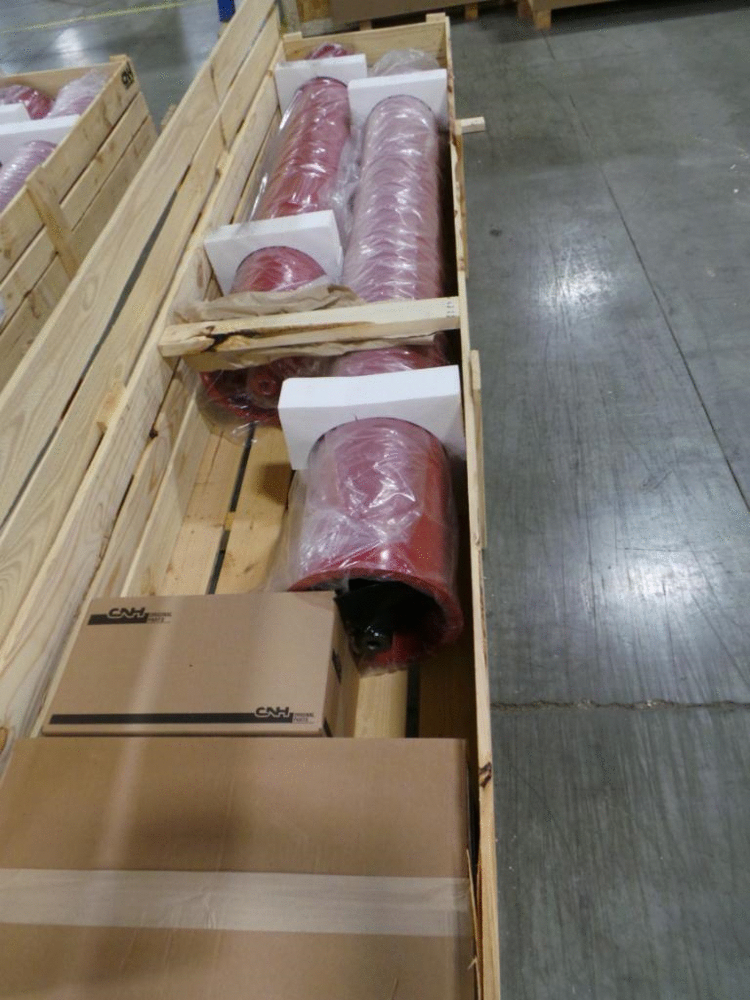

Запчасти Case IH 1644 (9E-34) - KIT AUGER 208 IN 2 PC W/PLN TUBE (17) - GRAIN TANK & UNLOADER

1

B94095

AUGER

Incl 2 - 35

1шт.

2

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

3

113488A1

SPOUT, DISCHARGE

1шт.

4

115867A1

DOOR

1шт.

5

1277949C1

SPACER

4шт.

6

1317738C1

TUBE,2285 mm Length

1шт.

7

1317859C1

SUPPORT

1шт.

8

1317899C4

TUBE,2998 mm Length

1шт.

9

1338869C2

SPRING,162mm Free Length

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

1шт.

11

178158C1

PLATE

1шт.

12

1989314C1

DECAL

1шт.

13

198987A2

AUGER

1шт.

14

87379141

AUGER

1шт.

15

47577191

BALL BEARING

1шт.

16

220040A2

SHAFT

1шт.

17

280736

NUT,5/16"-18, GC

4шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

26шт.

20

360936R1

RING

1шт.

21

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

22

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

4шт.

23

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

18шт.

24

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

6шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

2шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

8шт.

29

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

30

87327194

SERRATED SCREW,Sl Truss Head, 1/4" - 20 x 1", Gr 8

10шт.

31

10516674

LOCK WASHER,M8

2шт.

32

86625239

WASHER,0.34" ID x 1.5" OD x 0.06" Thk

18шт.

33

50591

FLANGE,52mm

2шт.

34

47508394

COLLAR

1шт.

35

87580899

SUPPORT

1шт.
