Запчасти Case IH 1644 (2-06) - RADIATOR CLEANING FAN (01) - ENGINE

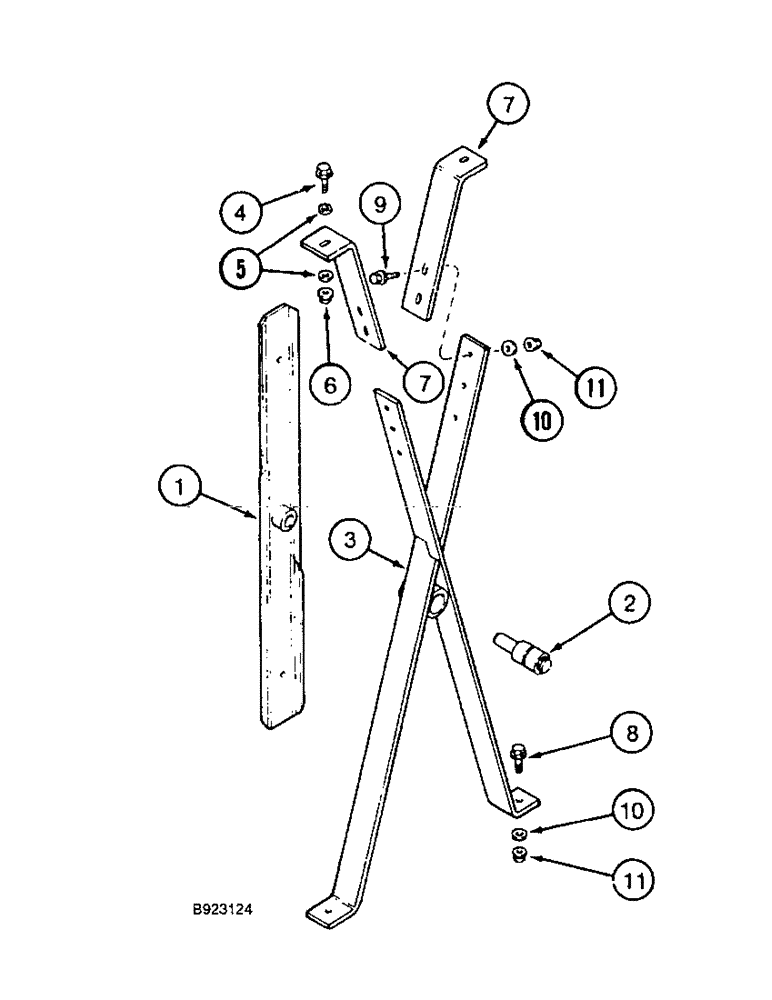

Схема запчастей Case IH 1644 - (2-06) - RADIATOR CLEANING FAN (01) - ENGINE
10
3
9
2
4
8
7
11
7
10
5
6
1
11

Артикул

Название

Примечание

Количество

1

1345399C1

FAN

BLADE cleaning

1шт.

2

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

blade

1шт.

3

1345404C1

SUPPORT

BRACKET mounting, blade

1шт.

4

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

5

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

flat, 11/32 x 7/8 x 1/16 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

1345403C1

SUPPORT

adjustable, wiper blade

2шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

BOLT hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

10

495-81253

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

flat, 11/32 x 7/8 x 1/16 inch

8шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

Выбрано товаров: 11
