Запчасти Case IH 1644 (9E-22) - UNLOADER, UPPER TUBE (17) - GRAIN TANK & UNLOADER

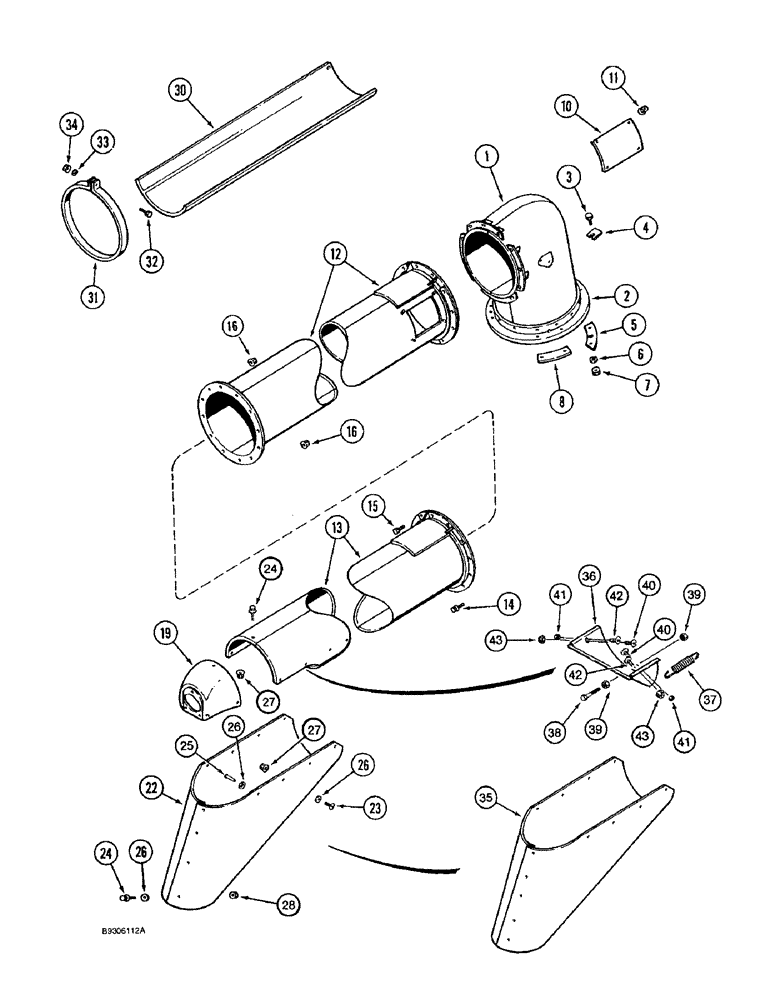

Схема запчастей Case IH 1644 - (9E-22) - UNLOADER, UPPER TUBE (17) - GRAIN TANK & UNLOADER
2
31
42
40
16
3
34
11
13
40
42
26
24
12
25
4
27
23
43
39
7
33
32
39
10
16
41
37
5
19
26
15
8
14
1
30
43
24
6
22
41
35
27
36
38
26
28

Артикул

Название

Примечание

Количество

1

193417C94

ELBOW

ASSEMBLY, unloader, upper tube, Includes: Ref. 2

1шт.

2

193418C3

FLANGE

unloader elbow

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

SHIM, 0.036 inch

1шт.

5

186657C2

SUPPORT

front keeper

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

unloader tube keeper

1шт.

10

178158C1

PLATE

inspection, front tube

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1317738C1

TUBE,2285 mm Length

unloader, plain, front blank, 89.96 in.

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

unloader, perforated, front, 89.96 in.

1шт.

13

1317734C4

TUBE,1170 mm Length

unloader, rear, 136 inch, replaces 1317734C2

1шт.

13

1317783C4

TUBE,2084 mm Length

unloader, rear, 82.47 inch, replaces 1317783C2

1шт.

13

1317899C3

TUBE,2998 mm Length

unloader, rear, 118.031 inch, replaces 1317899C2

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

18шт.

15

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

CAP end, unloader tube

1шт.

22

1321150C1

SPOUT, DISCHARGE

SPOUT down unloader tube, 16 holes

1шт.

23

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch (4-6)

4шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch (16-18)

16шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(11-13)

11шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

auger tube, perforated

1шт.

31

178166C1

CLAMP

tube retaining

4шт.

32

185856C1

ADJUSTMENT SCREW

hex, special, 5/16 NC x 2 inch full thread

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT down unloader tube, 18 holes

1шт.

36

115867A1

DOOR

grain saver

1шт.

37

1338869C1

SPRING

compressor tension

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 40
