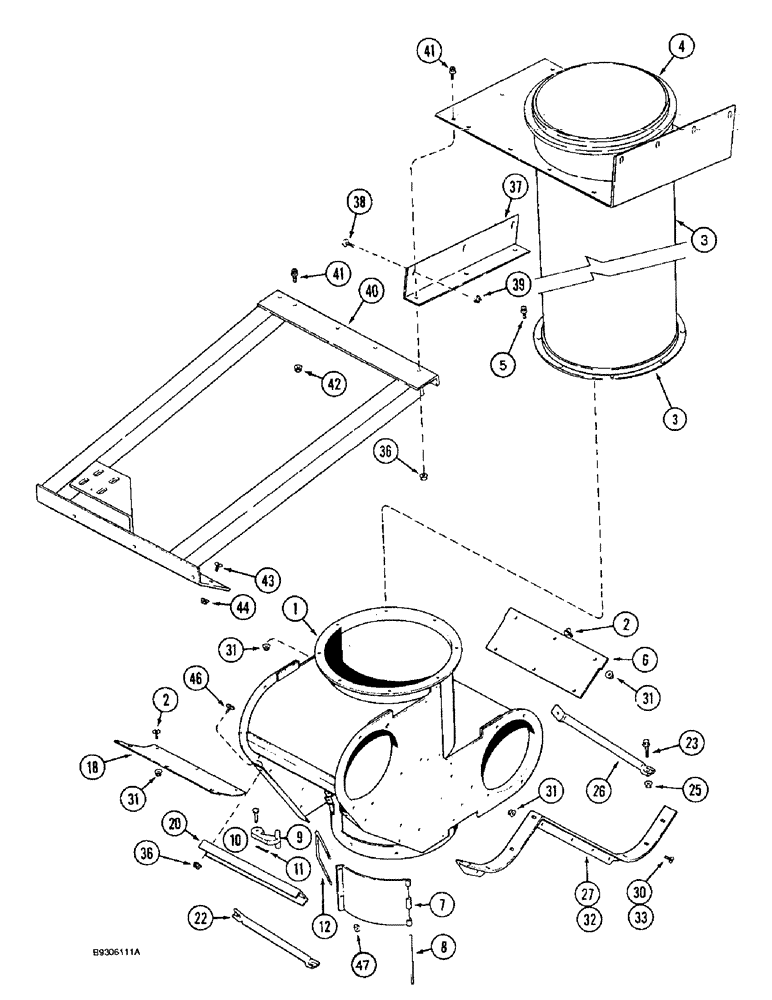

Запчасти Case IH 1644 (9E-20) - LOWER GRAIN TANK, UNLOADER HOUSING (17) - GRAIN TANK & UNLOADER

1

192475C3

HOUSING

unloader, lower

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

1338394C1

TUBE

ASSEMBLY, auger vertical

1шт.

4

178134C2

RING

tube, upper

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

6

191087C1

PLATE

COVER unloader housing, front, bottom

1шт.

7

1970539C1

FLAP

DOOR auger, lower, with decal

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD pivot door

1шт.

9

155909C1

LATCH

door

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

headed, 1/4 x 1-1/4 inch, grade 2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT "U" type, door

1шт.

18

191110C1

COVER

COVER unloader housing, rear, bottom

1шт.

20

192834C1

CHANNEL

support

1шт.

22

192848C1

ROD

SUPPORT rear housing

1шт.

23

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

BOLT hex flange, special, 3/8 NC x 1-1/2 inch

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

192847C1

ROD

SUPPORT front housing

1шт.

27

192828C1

SUPPORT

housing, left hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

10шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

58шт.

32

192829C1

SUPPORT

housing, right hand

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, /16 NC x 3/4 inch

2шт.

36

231-5146

FLANGE NUT,3/8"-16

9шт.

37

1338393C2

ANGLE

SUPPORT vertical

1шт.

38

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

self locking, truss head, Phillips, special, 3/8 NC x 1 inch

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

1338388C1

SUPPORT

unloader cylinder

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

42

231-5146

FLANGE NUT,3/8"-16

3шт.

43

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

7шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

47

231-1444

NUT,1/4"-20, GB

2шт.
