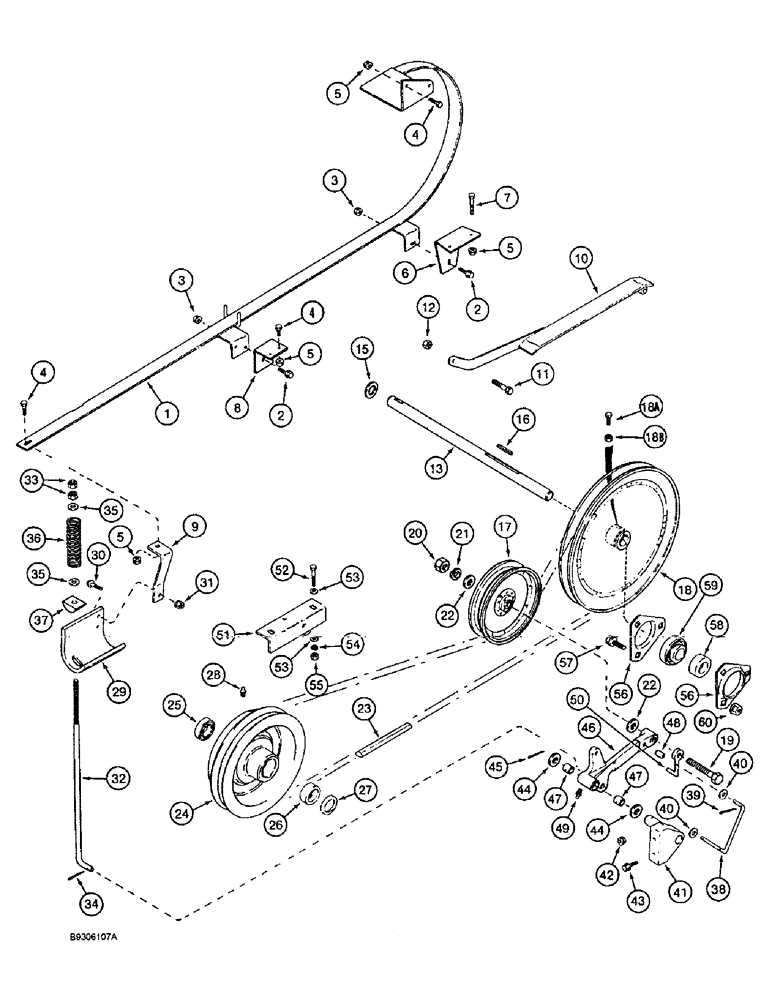

Запчасти Case IH 1644 (9E-10) - GRAIN TANK UNLOADER, BELT DRIVE (17) - GRAIN TANK & UNLOADER

1

195168C4

GUIDE

belt unloader

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

6шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

192870C1

SUPPORT

ANGLE front

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

8

1347453C1

SUPPORT

ANGLE center, belt guide

1шт.

9

1347454C1

SUPPORT

ANGLE lower rear, belt guide

1шт.

10

1989207C3

SUPPORT ASSY.

GUIDE belt upper

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

12

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

1шт.

13

1347494C1

SHAFT

unloader jackshaft, pulley vertical

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Not shown

1шт.

15

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

16

586879R1

KEY

square parallel, 5/16 x 2 inch

1шт.

17

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

drive, 8 inch O.D. tightener, belt

1шт.

18

1994762C2

PULLEY

driven unloader jackshaft, replaces 1994762C1

1шт.

18a

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

18b

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

19

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

BOLT hex, 5/8 NC x 3-3/4 inch

1шт.

20

425-1010

NUT,5/8"-11, G5

1шт.

21

492-11062

BEARING WASHER,5/8"

1шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.

23

1989216C1

V-BELT,22.33 mm W x 3475.89 mm L

Drive, Unloader

1шт.

24

1347378C1

HUB

PULLEY ASSEMBLY, auxiliary pump drive, Includes: Ref. 25 - 27

1шт.

25

658089R91

BALL BEARING,30mm ID x 62mm OD x 16mm W

ball pulley, inner

1шт.

26

191213C91

NEEDLE BEARING,41.275 mm ID x 50.812 mm OD x 25.4 mm

pulley, outer

1шт.

27

466176R92

SEAL

pulley

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

185062C1

SUPPORT

spring

1шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

32

185061C1

ROD

tightener

1шт.

33

425-108

NUT,1/2" - 13, Gr 5

2шт.

34

432-1216

COTTER PIN,3/16" x 1"

1шт.

35

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

36

391745R1

SPRING

arm, tightener

1шт.

37

194652C1

PIVOT

rod

1шт.

38

193820C1

ROD

retainer

1шт.

39

432-816

COTTER PIN,1/8" x 1"

2шт.

40

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

4шт.

41

191464C3

SUPPORT

tightener arm

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

43

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

BOLT hex flange, 5/16 NC x 1-1/4 inch

2шт.

44

495-81039

WASHER,25/32" x 1 1/4" x .120"

flat, 25/32 x 1-1/4 x 7/64 inch

3шт.

45

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

46

185059C93

LEVER ASSY.

ARM, belt tightener, Includes: Ref. 47 - 49

1шт.

47

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

arm, 3/4 ID x 7/8 O.D. x 3/4 inch wide

2шт.

48

1302225C1

BUSHING

arm, 3/8 ID x 1/2 O.D. x 3/4 inch wide

1шт.

49

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

50

194894C1

ROD

belt, upper

1шт.

51

1541743C1

SUPPORT ASSY.

belt guide, upper

1шт.

52

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

53

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

54

492-11038

LOCK WASHER,3/8"

2шт.

55

425-106

NUT,3/8"-16, Cl 5

2шт.

56

180955C1

FLANGED BEARING,0.375"

bearing beater

2шт.

57

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

58

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

ball

1шт.

59

455104R11

COLLAR

locking, bearing

1шт.

60

231-5146

FLANGE NUT,3/8"-16

3шт.
