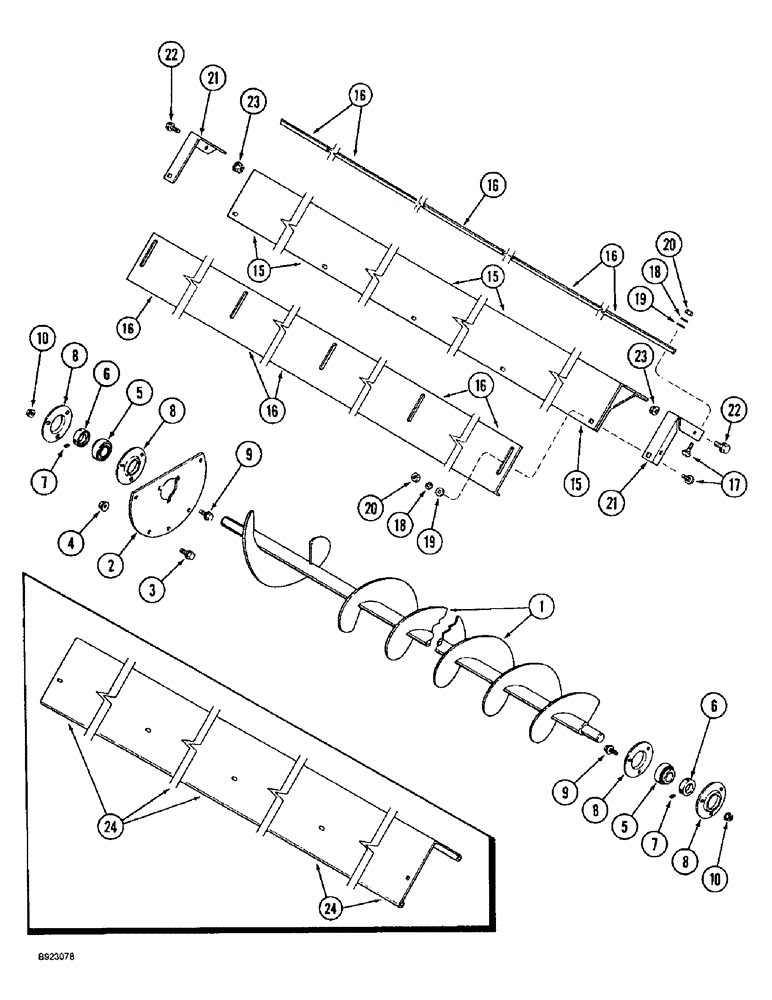

Запчасти Case IH 1644 (9E-06) - GRAIN TANK, BOTTOM AUGERS (17) - GRAIN TANK & UNLOADER

1

192784C2

AUGER

grain tank, lower

2шт.

2

192789C1

RETAINER

lower auger

2шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball, lower auger

4шт.

6

455102R21

COLLAR

locking, bearing, includes set screw lower auger, Includes: Ref. 7

4шт.

7

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set, hex socket headless, 1/4 NC x 1/4 inch, cup point

1шт.

8

462360R1

FLANGED BEARING

bearing auger

8шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

15

1321082C2

COVER

auger

1шт.

16

1321089C1

PLATE

EXTENSION auger cover

3шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

15шт.

18

492-11031

LOCK WASHER,5/16"

15шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

15шт.

20

425-105

NUT,5/16"-18, G5

15шт.

21

1321242C1

SUPPORT

auger cover, end

4шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

1979940C1

COVER

rear cross auger

1шт.
