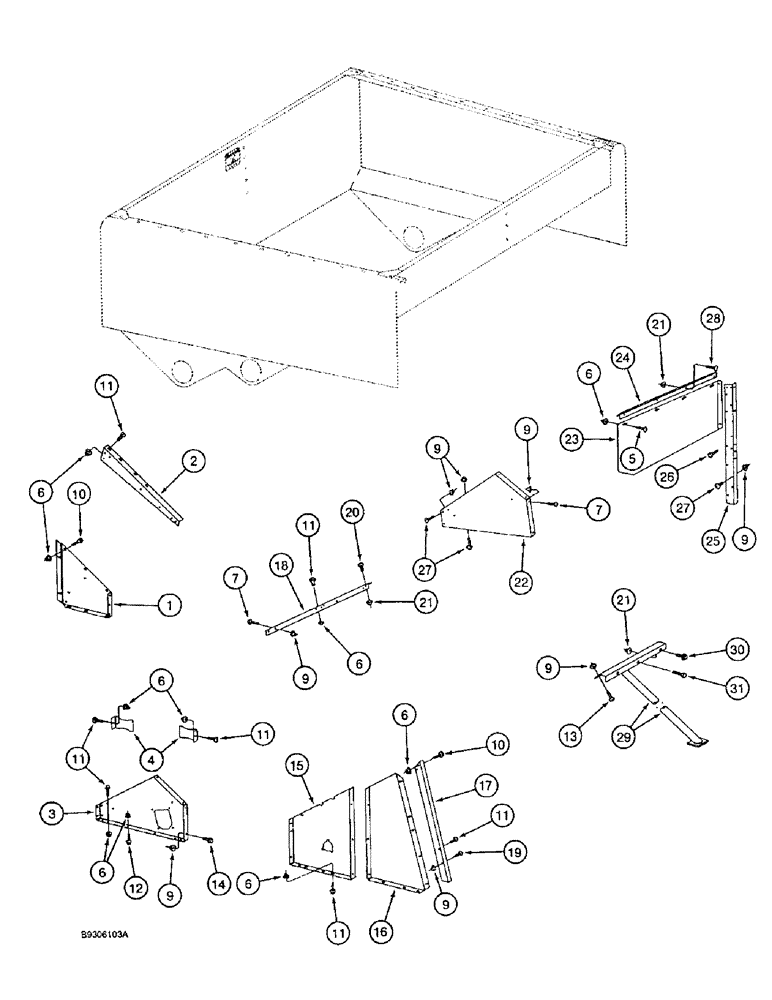

Запчасти Case IH 1644 (9E-03A) - GRAIN TANK LOWER SUPPORTS (17) - GRAIN TANK & UNLOADER

1

192770C3

COVER

SUPPORT grain tank, left hand, front

1шт.

2

192768C2

SUPPORT

grain tank, diagonal, left hand

1шт.

3

192771C2

SUPPORT

grain tank, center, left hand

1шт.

4

193531C1

SUPPORT

filler

4шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

2шт.

14

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

15

1347380C2

SUPPORT

grain tank, left hand, rear fixed, replaces 134738002

1шт.

16

192777C2

SUPPORT

grain tank, left hand rear, replaces 19277C1

1шт.

17

192775C1

SUPPORT

grain tank, vertical, left hand rear

1шт.

18

192773C1

ANGLE

BRACKET grain tank, lower left hand rear

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

2шт.

20

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

22

192772C2

SUPPORT

grain tank, center, right hand

1шт.

23

192474C1

SUPPORT

grain tank, right hand

1шт.

24

192774C1

SUPPORT

grain tank, lower right hand rear

1шт.

25

181392C2

SUPPORT

grain tank, vertical, right hand rear

1шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

16шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

28

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

1шт.

29

186118C1

SUPPORT ASSY.

grain tank, rear

1шт.

30

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.
