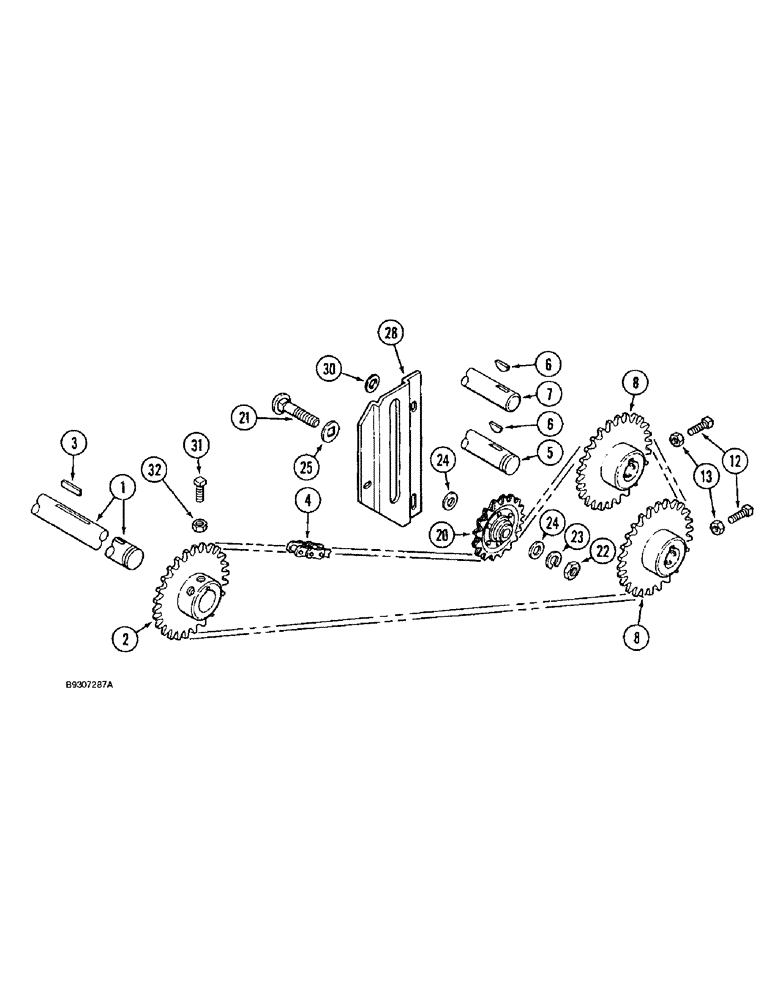

Запчасти Case IH 1644 (9D-28) - TAILINGS ELEVATOR, DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

elevator drive

1шт.

2

192139C2

SPROCKET

drive, 25 teeth

1шт.

3

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

4

1327724C92

CHAIN (AG)

tailings drive, use 155 links of 1791D bulk chain, (2) 1310D connecting links, (1) 1315D offset link and (1) 1309D roller link

1шт.

5

REF

INSTRUCTION

AUGER delivery, see parts list Fig. 9D-16

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

7

191785C1

SHAFT

head elevator

1шт.

8

1345472C1

SPROCKET

chain drive, 27 teeth elevator

2шт.

12

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cup point

2шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

20

631905R91

SPROCKET

idler, 17 teeth

1шт.

21

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT carriage, 5/8 NC x 2-1/2 inch, grade 2

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

492-11062

BEARING WASHER,5/8"

1шт.

24

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

25

498-81009

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

square hole, 21/32 x 1-1/4 x 3/32 inch

2шт.

28

1302069C2

SUPPORT

BRACKET, sprocket

1шт.

30

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

flat, 11/32 x 3/4 x 3/16 inch

3шт.

31

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cup point

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.
