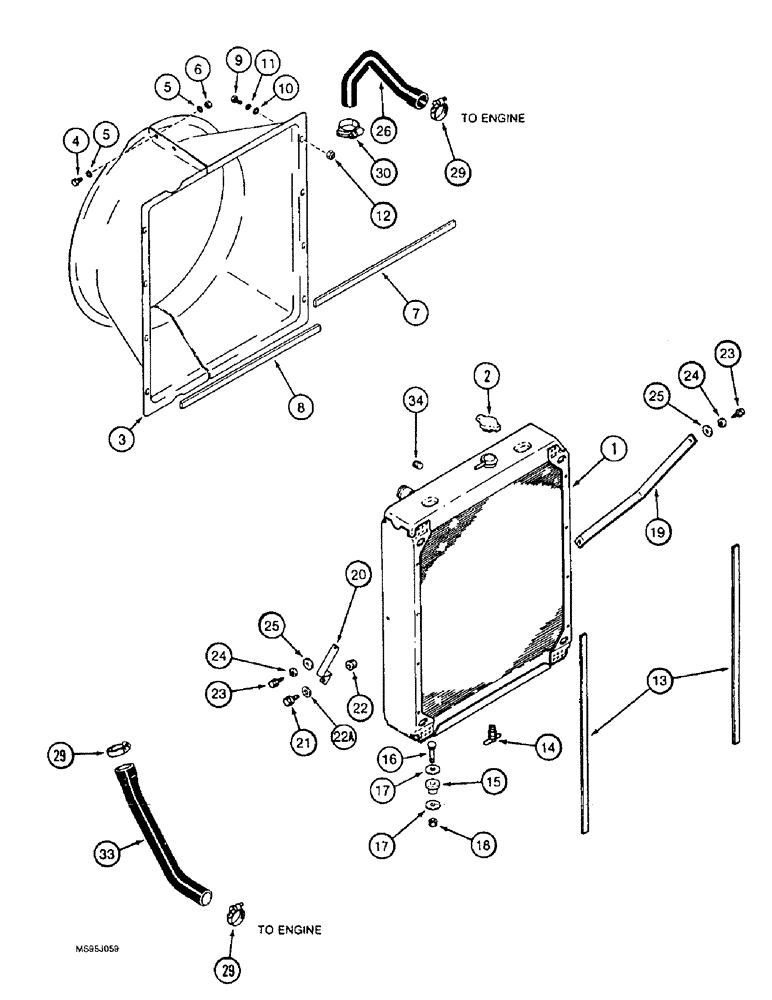

Запчасти Case IH 1644 (2-02) - RADIATOR AND ATTACHING PARTS (01) - ENGINE

1

A189067

RADIATOR

cooling system

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

106200A4

ORIFICE RING

SHROUD fan, includes both halves, Replaces 106200A1, Includes: Ref. 4

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened, Replaces 895-11008, Includes: Ref. 6

4шт.

6

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9, Replaces 829-1408

4шт.

7

1970457C2

SEAL

31 inch (787 mm) long, cut from 1974883CX bulk, see this Figure

1шт.

8

1979476C1

SEAL

28-3/4 inch (730 mm) long, cut from 1974883CX bulk, see this Figure

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

10

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

8шт.

11

492-11031

LOCK WASHER,5/16"

If used

8шт.

12

488837C1

SPRING NUT

speed, 5/16 inch NC, Replaces 131-636

8шт.

13

1970536C1

SEAL

foam, adhesive-backed, 34-1/2 inch (875 mm) long, cut from 195917C1 bulk, see this Figure

2шт.

14

86982771

VALVE

drain, 1/4 inch PT, cock

1шт.

15

R29799

SHOCK ABSORBER

INSULATOR rubber radiator mounting

2шт.

16

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

2шт.

17

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

18

231-1447

NUT,7/16"-14, GB

Replaces 131-51

2шт.

19

1329863C1

SUPPORT

radiator, left hand

1шт.

20

1541868C1

SUPPORT

radiator, right hand

1шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

22a

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

23

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

2шт.

26

1329919C2

HOSE,44.00 mm ID, 50.80 mm ID x 447.9 mm, SAE 20R4 CLASS D1

engine outlet radiator, upper

1шт.

29

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

3шт.

30

214-3248

HOSE CLAMP,57mm - 79mm

Replaces 1979481C1

1шт.

33

1979373C2

LARGE HOSE

HOSE,LARGE engine inlet radiator, lower

1шт.

34

221-841

PLUG

hex socket, 1/4 inch PT

1шт.

1974883CX

SEAL

bulk, adhesive-backed, 1/2 (13) x 1-1/2 (38) x 600 inch (15240 mm) long

1шт.

195917C1

GASKET

SEAL bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
