Запчасти Case IH 1644 (9D-08) - GRAIN ELEVATOR HEAD, HORIZONTAL (16) - GRAIN ELEVATORS & AUGERS

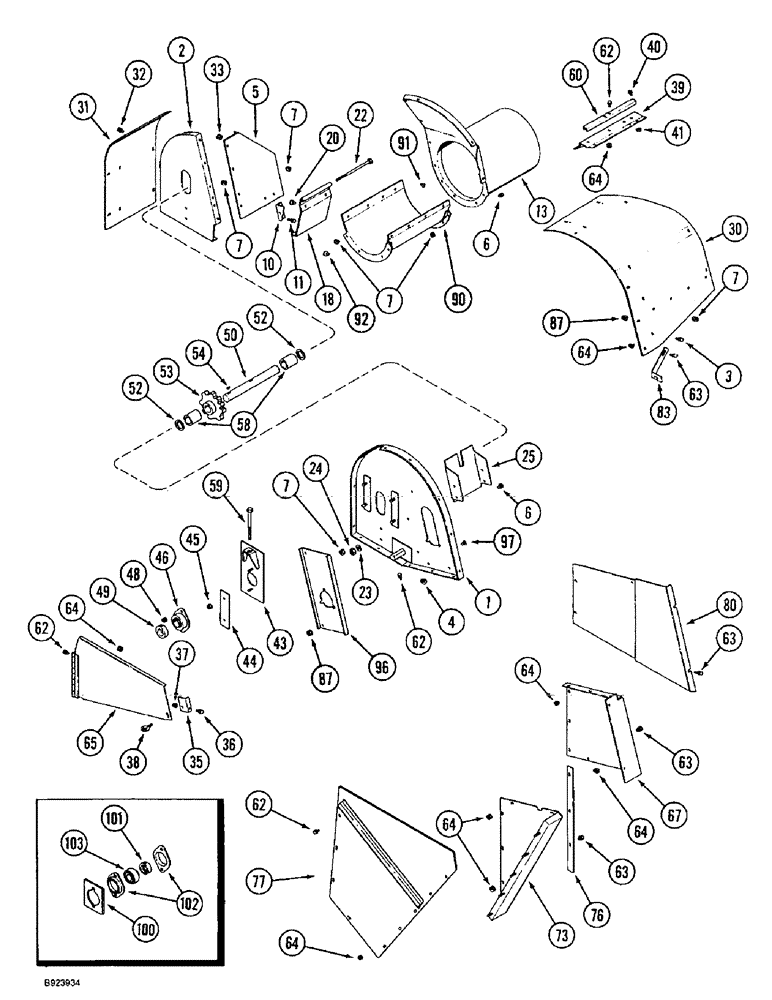

Схема запчастей Case IH 1644 - (9D-08) - GRAIN ELEVATOR HEAD, HORIZONTAL (16) - GRAIN ELEVATORS & AUGERS
63
67
50
83
40
45
7
7
96
35
32
52
63
64
4
25
64
63
64
7
62
58
62
20
2
33
24
13
37
3
87
43
38
62
36
5
63
76
44
18
97
48
54
92
39
59
23
64
62
11
102
52
100
49
6
87
1
53
7
103
7
31
6
46
65
60
91
22
80
64
41
30
101
10
64
90
64
73
77

Артикул

Название

Примечание

Количество

1

1321126C1

PLATE

SIDE head, right hand

1шт.

2

1319901C1

SIDE PLATE

SIDE elevator head, left hand

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

9шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

1321139C1

PLATE

SUPPORT left hand side, head adapter

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

10

1321553C1

BRACKET

support cutoff end

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

13

121369A1

SUPPORT

head front, left hand, includes 131949C1 decal

1шт.

18

1319952C1

PLATE

SECTION cut off head

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

22

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

BOLT hex, 5/16 NC x 7 inch, grade 2

1шт.

23

492-11031

LOCK WASHER,5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

1шт.

25

1317222C1

PLATE

deflector

1шт.

30

1321128C1

COVER

head, front

1шт.

31

1319942C1

COVER

rear, elevator head

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

13шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

13шт.

35

1317792C2

ANGLE

door

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

38

188029C1

LATCH

cover

1шт.

39

1319959C1

SUPPORT

tightener, conveyor

1шт.

40

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

43

1317251C2

SUPPORT

headshaft

2шт.

44

1310040C1

BAR

guide bearing

4шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

46

1317250C91

FLANGED BEARING,31.75mm ID

headshaft

2шт.

48

231-5146

FLANGE NUT,3/8"-16

4шт.

49

557995R11

COLLAR

bearing, with set screw headshaft

2шт.

50

1317429C1

SHAFT

Headshaft sprocket

1шт.

52

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

53

1317192C1

SPROCKET

drive headshaft

2шт.

54

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

58

1317193C2

SPACER

sprocket

2шт.

59

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

hex, special, 1/2 NC x 5-1/2 inch tightener

1шт.

60

1317474C1

CHANNEL

lock, tightener

1шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

63

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

64

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

65

1321265C2

DOOR

head, side

1шт.

67

1321228C1

EXTENSION

head, lower

1шт.

73

1321496C1

SUPPORT

side panel, left hand

1шт.

76

1321155C1

SPACER

spacer

1шт.

77

1979472C1

SHEET

PANEL side, right hand, replaces 1321617C1

1шт.

80

1321618C2

PLATE

SUPPORT cover, auger

1шт.

83

1321832C1

BRACKET

front cover strap

1шт.

87

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

30шт.

90

1321130C1

TROUGH

auger

1шт.

91

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

92

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

96

1321129C1

PLATE

SUPPORT bearing, auger, right hand

1шт.

97

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

100

1979642C1

SPACER

bearing flange

2шт.

101

557995R11

COLLAR

bearing, with set screw

2шт.

102

581469R1

FLANGE,Bearing

bearing retainer

4шт.

103

156011C92

BALL BEARING

ball auger

2шт.

Выбрано товаров: 61
