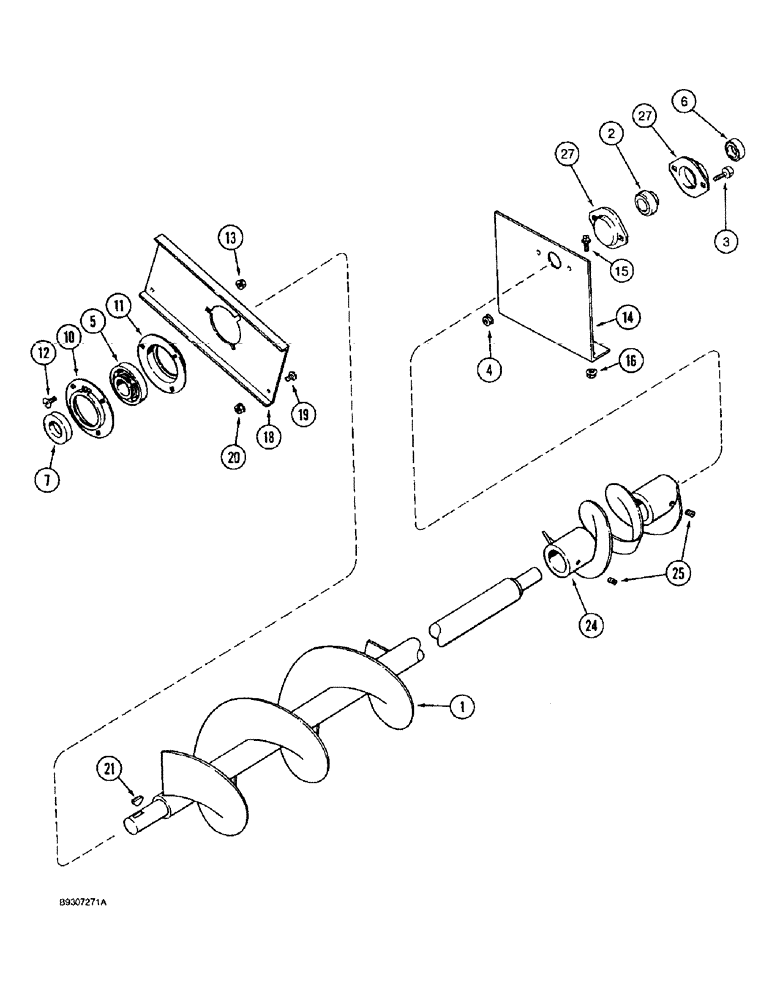

Запчасти Case IH 1644 (9D-02) - HORIZONTAL GRAIN DELIVERY, AND DISTRIBUTOR AUGER (16) - GRAIN ELEVATORS & AUGERS

1

1318912C3

AUGER

delivery, horizontal

1шт.

2

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball auger, left hand

1шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

156011C92

BALL BEARING

ball auger, right hand

1шт.

6

455102R91

COLLAR

locking, bearing, includes set screw, left hand

1шт.

7

557995R11

COLLAR

bearing, with set screw, right hand

1шт.

10

670375R11

FLANGE

FLANGE bearing, right hand

1шт.

11

939461R1

FLANGE

bearing grooved, right hand

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

14

1317947C2

LARGE PLATE

PLATE, LARGE SUPPORT auger bearing, left hand

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

18

1321129C1

PLATE

SUPPORT bearing, auger right hand

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

162103C91

AUGER

distributer

1шт.

25

83-1448

SET SCREW,7/16" - 14 x 1/2"

set, hex socket headless, 7/16 NC x 1/2 inch, cup point

2шт.

27

50591

FLANGE,52mm

bearing

2шт.
