(1-30) - PICTORIAL INDEX, REEL HYDRAULICS

Запчасти Case IH 1644 (1-30) - PICTORIAL INDEX, REEL HYDRAULICS (00) - PICTORIAL INDEX

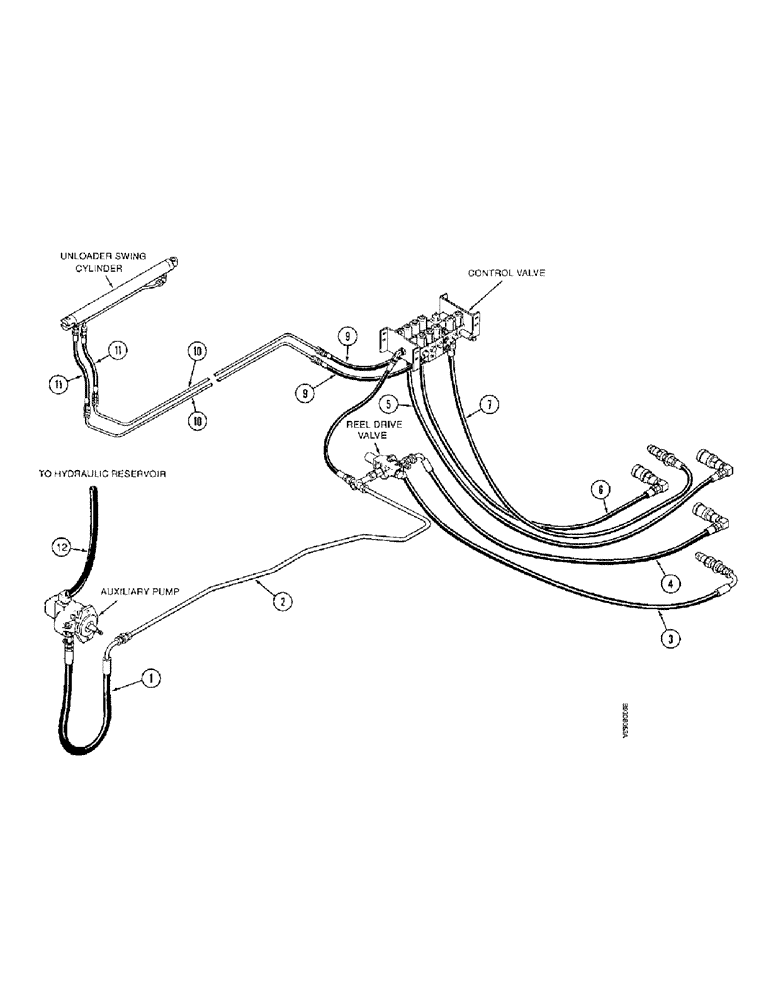

Схема запчастей Case IH 1644 - (1-30) - PICTORIAL INDEX, REEL HYDRAULICS (00) - PICTORIAL INDEX
9
7
11
5
4
10
12
2
1
3
6
9
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Auxiliary Pump to Reel Valve Hose, Figure 8-46

1шт.

2

Reel Drive Valve Supply Tube , Figure 8-46

1шт.

3

Reel Motor Supply Hose, Figure 8-46

1шт.

4

Reel Motor Return Hose, Figure 8-46

1шт.

5

Reel Lift Hose, Figure 8-54

1шт.

6

Reel Fore Hose, Figure 8-54

1шт.

7

Reel Aft Hose, Figure 8-54

1шт.

8

Feeder Clutch Valve Hose, Figure 8-56

1шт.

9

Unloader Swing Cylinder Hoses, Figure 8-68

1шт.

10

Unloader Swing Cylinder Tubes, Figure 8-68

1шт.

11

Unloader Swing Cylinder Hoses, Figure 8-68

1шт.

12

Reel Drive Suction Hose, Figure 8-26

1шт.
