Запчасти Case IH 1644 (9C-12) - CLEANING FAN, DRIVE SPEED CONTROL (15) - BEATER & CLEANING FANS

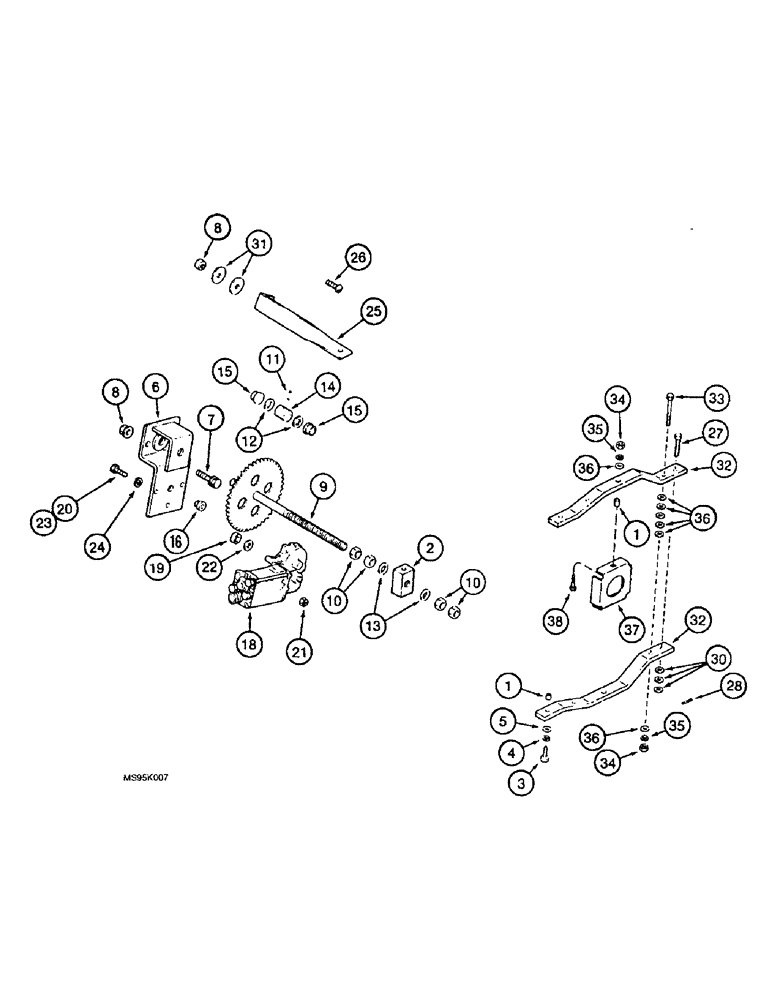

Схема запчастей Case IH 1644 - (9C-12) - CLEANING FAN, DRIVE SPEED CONTROL (15) - BEATER & CLEANING FANS
18
1
12
19
33
10
35
6
5
27
34
10
31
8
25
26
30
36
23
2
9
4
38
35
1
11
20
15
7
15
16
22
36
37
28
32
36
14
3
24
8
13
34
32
21

Артикул

Название

Примечание

Количество

1

1/2 x 1/2 inch block

2шт.

2

181206C1

BLOCK

shaft fan speed control

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

6

181199C2

SUPPORT

speed control motor, replaces 181199C1

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

231-5146

FLANGE NUT,3/8"-16

3шт.

9

181202C1

SHAFT ASSY.

adjusting gear

1шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

38-11216

LOCK PIN,3/16" x 1", Slotted

1шт.

12

495-81177

WASHER,21/32" x 1" x .030"

flat, 21/32 x 1 x 1/32 inch

2шт.

13

1302054C1

WASHER,15.95mm ID x 25.4mm OD x 1.52mm Thk

thrust fan control

2шт.

14

181205C1

SPACER

adjusting gear shaft

1шт.

15

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

16

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

17

126573C1

MOTOR, ELECTRIC

variable speed, if used, not shown, Serial Range: -JJC0097942

1шт.

18

111787A1

MOTOR, ELECTRIC

variable speed, Start Serial: JJC0097942

1шт.

18

111787A2R

REMAN-ELECTRIC MOTOR

1644 CASE IH AXIAL-FLOW COMBINE, variable speed, Start Serial: JJC0097942 (1/93-12/94), Reman for New PN 111787A1

1шт.

18

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

19

113485A1

SPACER

17 mm used with 111787A1 motor only

2шт.

20

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Used to mount 111787A1

2шт.

21

425-104

NUT,1/4"-20, Cl 5

Used to mount 111787A1 motor

2шт.

22

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

flat, 13/32 x 1 x 11/64 inch used to mount 126573C1

3шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used to mount 126573C1 motor

3шт.

24

492-11025

LOCK WASHER,1/4"

(2 - 3)

2шт.

25

186283C1

SUPPORT

fan drive control

1шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

27

439-1624

HEADED PIN,3/8" x 1 1/2"

headed, 3/8 x 1-1/2 inch, grade 2

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

31

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

32

194850C2

SUPPORT

fan control

2шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

425-105

NUT,5/16"-18, G5

3шт.

35

492-11031

LOCK WASHER,5/16"

3шт.

36

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

37

194852C2

SUPPORT

fan driver

1шт.

38

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT carriage, 5/16 NC x 1-1/4 inch, grade 2

2шт.

Выбрано товаров: 39
