Запчасти Case IH 1644 (9C-08) - CLEANING FAN, SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS

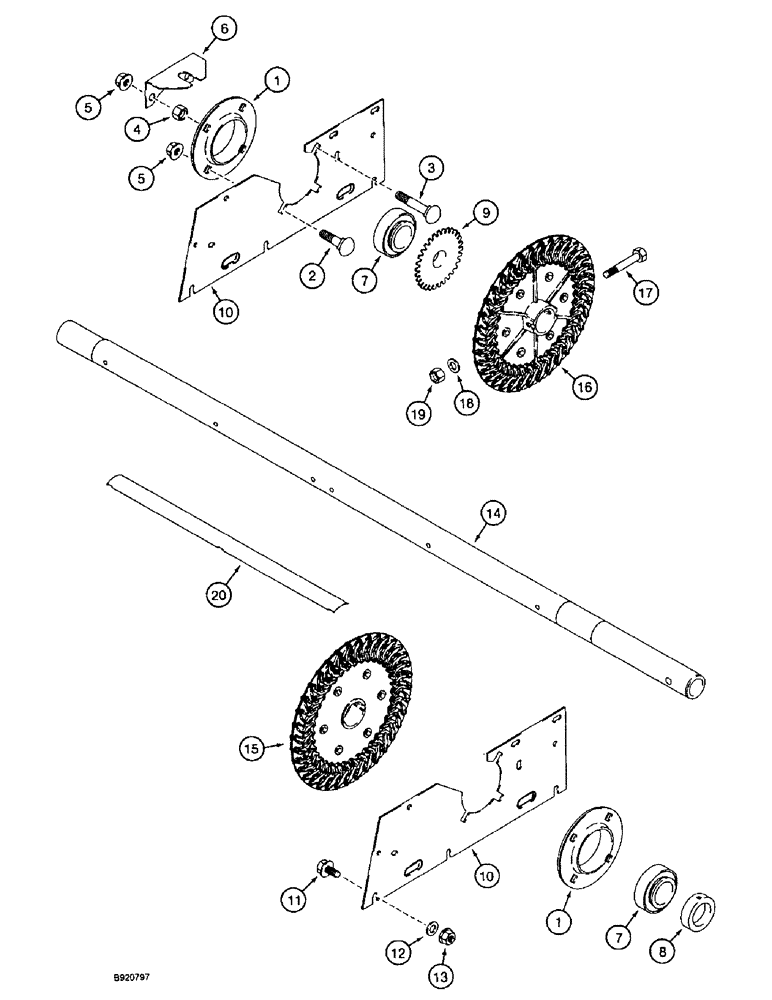

Схема запчастей Case IH 1644 - (9C-08) - CLEANING FAN, SHAFT AND SUPPORTS (15) - BEATER & CLEANING FANS
14
11
1
16
7
10
13
5
15
10
1
18
20
4
8
9
5
7
19
12
2
6
3
17

Артикул

Название

Примечание

Количество

1

76079C1

FLANGE

fan shaft bearing

4шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

6шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 inch

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

6

1541554C1

SUPPORT

BRACKET mounting fan speed pickup

1шт.

7

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

ball fan shaft

2шт.

8

582816R11

COLLAR

bearing lock, includes set screw

1шт.

9

1541555C1

SPROCKET

SPROCKET fan speed tachmeter

1шт.

10

120870A1

SUPPORT

fan shaft bearing, includes decal

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

1541935C2

FAN

ASSEMBLY, cleaning replaces 1541935C1, Includes: Ref. 14 - 20

1шт.

14

1989550C2

SHAFT

cleaning fan replaces 1989550C1

1шт.

15

1541560C1

FAN BLADE

fan blade, right hand

3шт.

16

1541570C1

FAN BLADE

fan blade, left hand

3шт.

17

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

6шт.

18

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

12шт.

19

230-4115

LOCK NUT,5/16"-18, GA

hex, self locking, 5/16 inch NC

6шт.

20

1541631C1

PADDLE

BLADE cleaning fan

72шт.

21

437157R1

SNAP RING,#37, Ext

not shown #37, Ext

3шт.

Выбрано товаров: 22
