Запчасти Case IH 1644 (9C-04) - DISCHARGE BEATER BOTTOM (15) - BEATER & CLEANING FANS

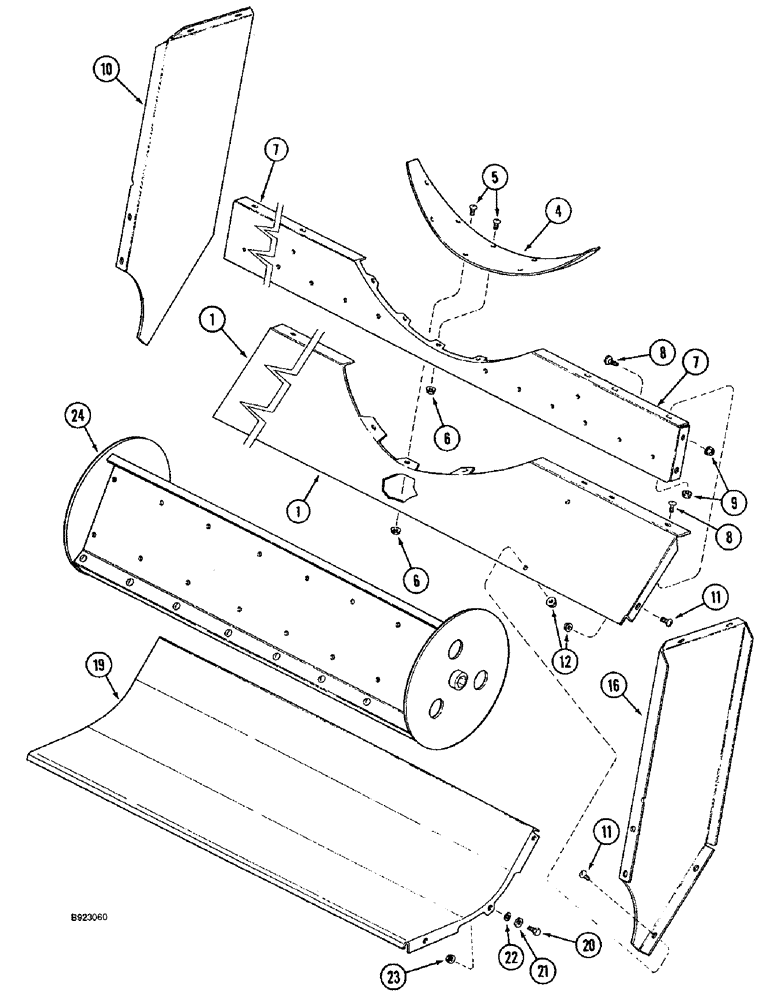

Схема запчастей Case IH 1644 - (9C-04) - DISCHARGE BEATER BOTTOM (15) - BEATER & CLEANING FANS
1
24
5
7
8
6
20
4
8
1
9
16
12
7
11
11
19
10
22
23
21
6

Артикул

Название

Примечание

Количество

1

192028C2

SUPPORT

beater discharge

1шт.

4

193909C2

SUPPORT

beater pan, front lower

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

9шт.

6

231-5146

FLANGE NUT,3/8"-16

9шт.

7

182929C1

SUPPORT

cage, lower rear housing

1шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

10шт.

9

231-5146

FLANGE NUT,3/8"-16

10шт.

10

193452C1

DEFLECTOR

discharge, left hand

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

12шт.

12

231-5146

FLANGE NUT,3/8"-16

12шт.

16

193453C1

DEFLECTOR

discharge, right hand

1шт.

19

195426C3

SUPPORT ASSY.

PAN beater lower, rear

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

232-4116

NUT,3/8"-16, GC

2шт.

24

REF

INSTRUCTION

BEATER ASSEMBLY, discharge, see parts list Figure 9C-2

1шт.

Выбрано товаров: 17
