(1-28) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROL

Запчасти Case IH 1644 (1-28) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROL (00) - PICTORIAL INDEX

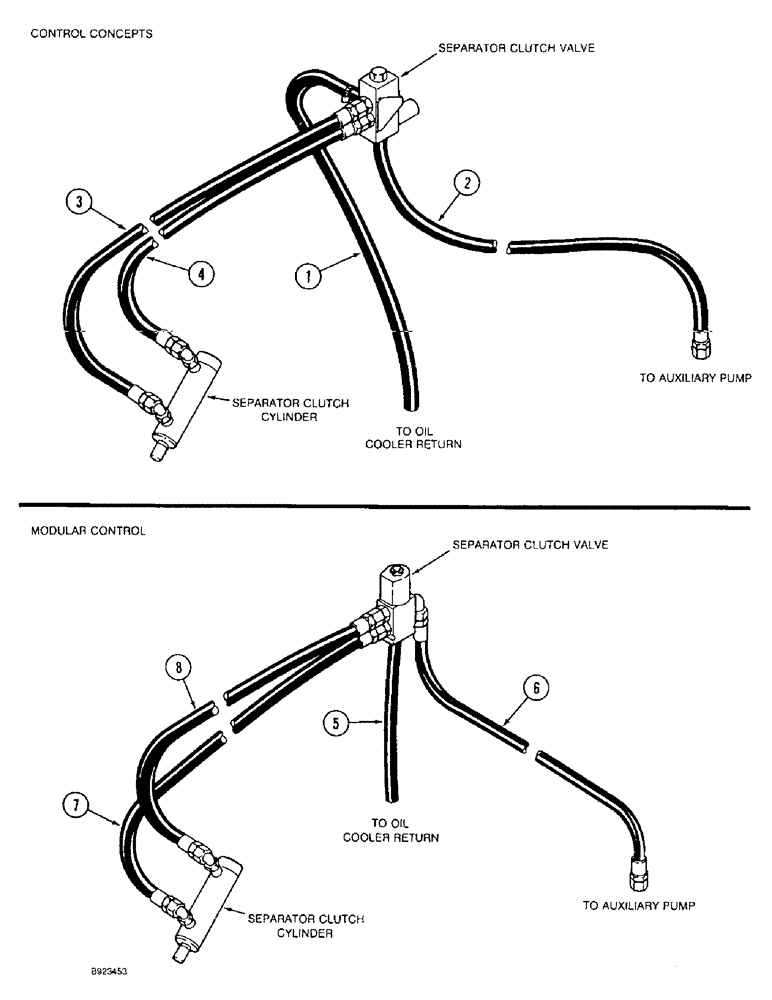

Схема запчастей Case IH 1644 - (1-28) - PICTORIAL INDEX, SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS, MODULAR CONTROL (00) - PICTORIAL INDEX
7
4
5
6
1
3
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Separator Clutch Return Hose, Figure 5-6

1шт.

2

Separator Clutch Pressure Hose, Figure 5-6

1шт.

3

Separator Clutch Disengage Hose, Figure 5-4

1шт.

4

Separator Clutch Engage Hose, Figure 5-4

1шт.

5

Separator Clutch Return Hose, modular control, Figure 8-58

1шт.

6

Separator Clutch Pressure Hose, modular control, Figure 8-58

1шт.

7

Separator Clutch Disengage Hose, modular control, Figure 8-58

1шт.

8

Separator Clutch Engage Hose, modular control, Figure 8-58

1шт.
