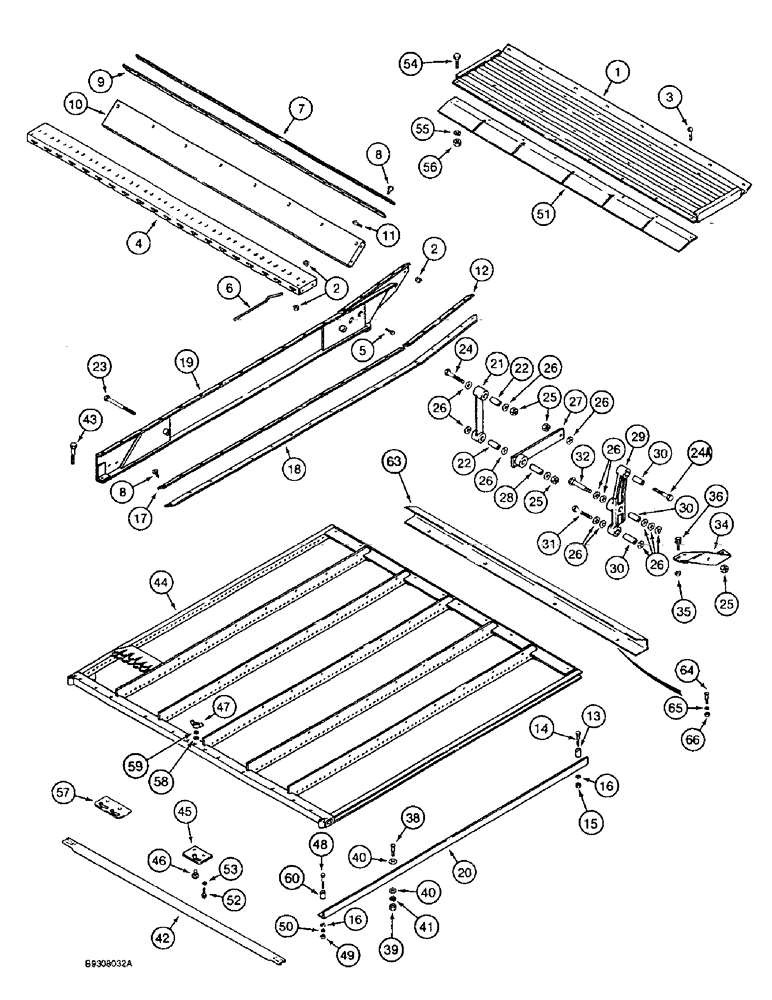

Запчасти Case IH 1644 (9B-44) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

1312154C1

SIEVE

PAN grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 Nc x 1/2 inch

20шт.

4

1312156C1

SUPPORT

chaffer pan

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT hex flange, 5/16 NC x 3/4 inch, grade 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

auger bed, short

20шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

auger bed, long

20шт.

7

192048C2

BAR

SEAL chaffer frame

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

self tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP chaffer frame front

1шт.

10

192044C1

SUPPORT

chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

192052C2

BAR

chaffer frame seal, short

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1 inch chaffer sieve support, front

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

BOLT hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

flat, 13/32 x 1 x 11/64 inch

4шт.

17

1325332C1

BAR

chaffer frame seal, long

2шт.

18

1325331C1

SEALING STRIP

chaffer frame

2шт.

19

1979206C1

RAIL

chaffer, left hand

1шт.

19

1979207C1

RAIL

chaffer, right hand

1шт.

20

1325334C3

SUPPORT

chaffer support, right hand

1шт.

20

1325333C3

SUPPORT

chaffer support, left hand

1шт.

21

1957455C1

ARM

rear hanger, Includes: Ref. 22

2шт.

22

1330324C1

BUSHING

front hanger

2шт.

23

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

BOLT hex, 5/8 NC x 7 inch, grade 8

2шт.

24

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

24a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

25

232-41110

NUT,5/8"-11, GC

10шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

3шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

28шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

flat, 29/32 x 1-1/2 x 7/64 inch

2шт.

27

1330357C1

ARM

shoe, rear, Includes: Ref. 28

2шт.

28

1330324C1

BUSHING

shoe arm

1шт.

29

1957460C2

LEVER

ASSEMBLY, shoe, Includes: Ref. 30

2шт.

30

1330323C2

BUSHING

5/8 x 1-1/2 x 2-57/64 inch shoe lever

3шт.

31

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

BOLT hex, 5/8 NC x 6 inch, grade 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT carriage, 5/8 NC x 5 inch

2шт.

34

1968827C1

SUPPORT

shoe lever, left hand

1шт.

34

1968828C1

SUPPORT

shoe lever, right hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

4шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

39

425-105

NUT,5/16"-18, G5

1шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

flat, 11/32 x 3/4 x 7/64 inch

2шт.

41

492-11031

LOCK WASHER,5/16"

1шт.

42

1325336C2

BAR

PIPE chaffer support, rear

1шт.

43

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

44

1957314C6

GRAIN SIEVE

corn slat chaffer, 1-5/8 inch extended, replaces 1957314C5

1шт.

44

1957316C5

GRAIN SIEVE

adjustable chaffer, 1-1/8 inch extended, replaces 1957316C4

1шт.

44

1957315C6

GRAIN SIEVE

corn slat chaffer, 1-5/8 inch extended, replaces 1957315C5

1шт.

44

1970516C6

GRAIN SIEVE

Petersen extended chaffer, replaces 1970516C5

1шт.

45

120668A1

LARGE PLATE

PLATE, LARGE chaffer level, upper

1шт.

46

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

1шт.

47

86627130

WING NUT,1/4"-20

1/4 inch NC

1шт.

48

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

1шт.

49

429-106

NUT,3/8"-16, G8

hex, 3/8 inch NC, grade 8

1шт.

50

492-11038

LOCK WASHER,3/8"

1шт.

51

1319258C1

COVER

chaffer finger

1шт.

52

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT hex washer head, special, 3/8 NC x 1-1/4 inch

2шт.

53

492-11038

LOCK WASHER,3/8"

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

55

492-11025

LOCK WASHER,1/4"

8шт.

56

425-104

NUT,1/4"-20, Cl 5

8шт.

57

120667A1

PLATE

chaffer lever, lower

1шт.

58

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

59

126177

WING NUT

1/4 inch NC

2шт.

60

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

63

119997A1

DEFLECTOR

sieve

1шт.

64

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

4шт.

65

495-81107

WASHER,.281" x 7/8" x .060"

flat, 9/32 x 7/8 x 3/64 inch

4шт.

66

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.
