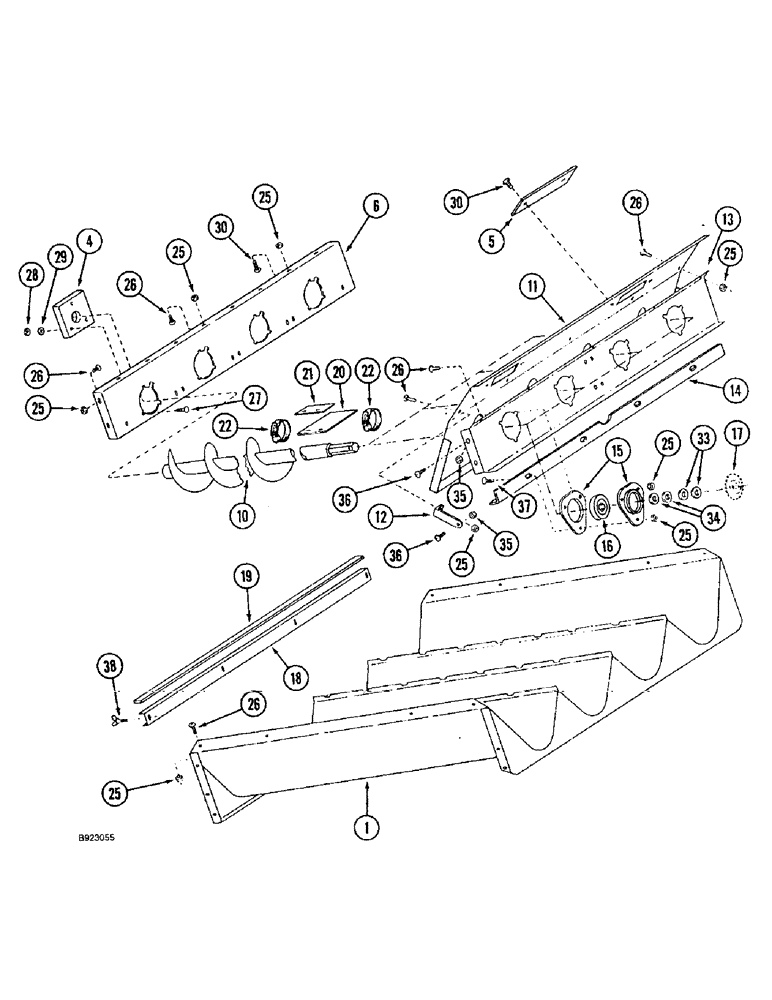

Запчасти Case IH 1644 (9B-34) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

1

185038C5

BOTTOM

TROUGH auger

1шт.

4

193414C2

BOARD

front auger bearing

4шт.

5

1319548C1

BAR

COVER grain sensor

2шт.

6

1345013C3

SUPPORT

center, front auger

1шт.

10

1308541C1

AUGER

right hand rotation

4шт.

11

1321373C1

PLATE

filler, rotor to auger drive

1шт.

12

193554C1

SUPPORT

pan

2шт.

13

1309225C1

SUPPORT

auger drive gear

1шт.

14

188359C1

ANGLE

auger support stiffener

1шт.

15

571424R1

FLANGE

bearing auger

8шт.

16

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

auger drive

4шт.

17

REF

INSTRUCTION

GEAR auger drive bevel, matched set, parts list Figure 9B-36

1шт.

18

1319163C91

COVER

auger trough clean out, Includes: Ref. 19

1шт.

19

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

clean out trough

1шт.

20

1302112C1

STRIP

PLATE auger bed grain spreader

1шт.

21

1302113C1

BAR

grain spreader plate

1шт.

22

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

75шт.

26

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

58шт.

27

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 NC x 2-1/4 inch

12шт.

28

232-4136

LOCK NUT,3/8"-16, GC

12шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

12шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

13шт.

33

495-81191

WASHER,1 5/32" x 2" x .060"

flat, 1-5/32 x 2 x 3/64 inch

8шт.

34

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8")

8шт.

35

231-5146

FLANGE NUT,3/8"-16

7шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

37

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

38

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT wing clean out cover

4шт.
