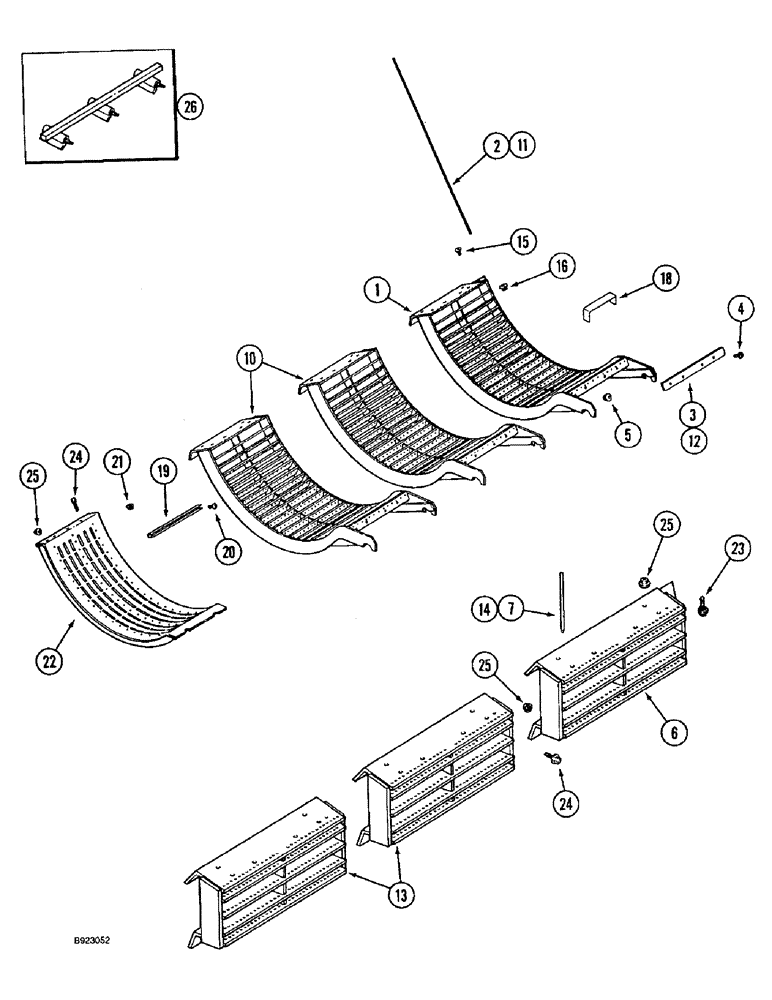

Запчасти Case IH 1644 (9B-28) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE
№
Артикул
Название
Примечание
Количество
1
1309208C3
CONCAVE
ASSEMBLY, front, small wire, Includes: Ref. 2 and 3
1шт.
2
1302602C2
ROD
concave, 3/16 x 29 inch long
30шт.
3
193859C1
PLATE
concave wire retaining
2шт.
1
1302606C5
CONCAVE
ASSEMBLY, front, large wire, hardened, Includes: Ref. 2 and 3
1шт.
2
1302601C2
STEM
ROD concave, 1/4 x 29 inch long
14шт.
3
193859C1
PLATE
concave wire retaining
2шт.
4
1319406C1
SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl
self locking, truss head, Phillips, special, 3/8 NC x 1 inch
1шт.
5
231-5146
FLANGE NUT,3/8"-16
1шт.
6
1318553C1
CONCAVE
ASSEMBLY, small wire extension, Includes: Ref. 7
1шт.
7
1318561C1
PIN
PIN, LARGE small wire
30шт.
6
1318551C1
CONCAVE
ASSEMBLY, large wire extension, Includes: Ref. 7
1шт.
7
1318560C1
LARGE PIN
PIN, LARGE wire
14шт.
10
1309210C3
CONCAVE
ASSEMBLY, No. 2 and 3 small wire (Grain), Includes: Ref. 11 and 12
2шт.
11
1302602C2
ROD
concave, 3/16 x 29 inch long
30шт.
12
193859C1
PLATE
concave wire retaining
2шт.
10
1302607C4
CONCAVE
ASSEMBLY, No. 2 and 3, large wire, (Grain), Includes: Ref. 11 and 12
1шт.
11
1302601C2
STEM
ROD concave, 1/4 x 29 inch long
14шт.
12
193859C1
PLATE
concave wire retaining
2шт.
13
1318554C1
CONCAVE
ASSEMBLY, No. 2 and 3, small wire extension, Includes: Ref. 14
1шт.
14
1318561C1
PIN
PIN, LARGE small wire
30шт.
13
1318552C1
CONCAVE
ASSEMBLY, No. 2 and 3, large wire extension, Includes: Ref. 14
2шт.
14
1318560C1
LARGE PIN
PIN, LARGE wire
14шт.
15
410-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8
BOLT hex serrated flange, 3/ NC x 1 inch, grade 8
1шт.
16
231-5146
FLANGE NUT,3/8"-16
1шт.
1300673C91
PACKAGE
KIT concave filler, small wire, set of 6, Includes: Ref. 18
1шт.
18
1309425C1
CHANNEL
concave filler, small wire
6шт.
1300716C91
CHANNEL
KIT concave filler, large wire, set of 6, Includes: Ref. 18
1шт.
18
1309424C1
CHANNEL
concave filler, large wire
6шт.
19
191536C1
CHANNEL
grate adjusting corn
7шт.
19
191536C1
CHANNEL
grate adjusting grain
21шт.
20
135270
SERRATED SCREW,5/16" - 18 x 3/4"
slotted truss head, 5/16 NC x 3/4 inch
1шт.
21
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
22
191538C3
GRATE ASSY.
slotted
3шт.
22
191538C3
GRATE ASSY.
slotted corn, if equipped
1шт.
22
1302562C1
CONCAVE
keystock
1шт.
22
1319750C1
GRATE
smooth, sunflower seed
1шт.
23
410-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8
BOLT hex serrated flange, 3/8 NC x 1 inch, grade 8
1шт.
24
410-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8
BOLT hex serrated flange, 3/8 NC x 1-1/4 inch, grade 8
1шт.
25
231-5146
FLANGE NUT,3/8"-16
1шт.
26
1324046C3
BAR
concave, interrupter, small wire
1шт.
