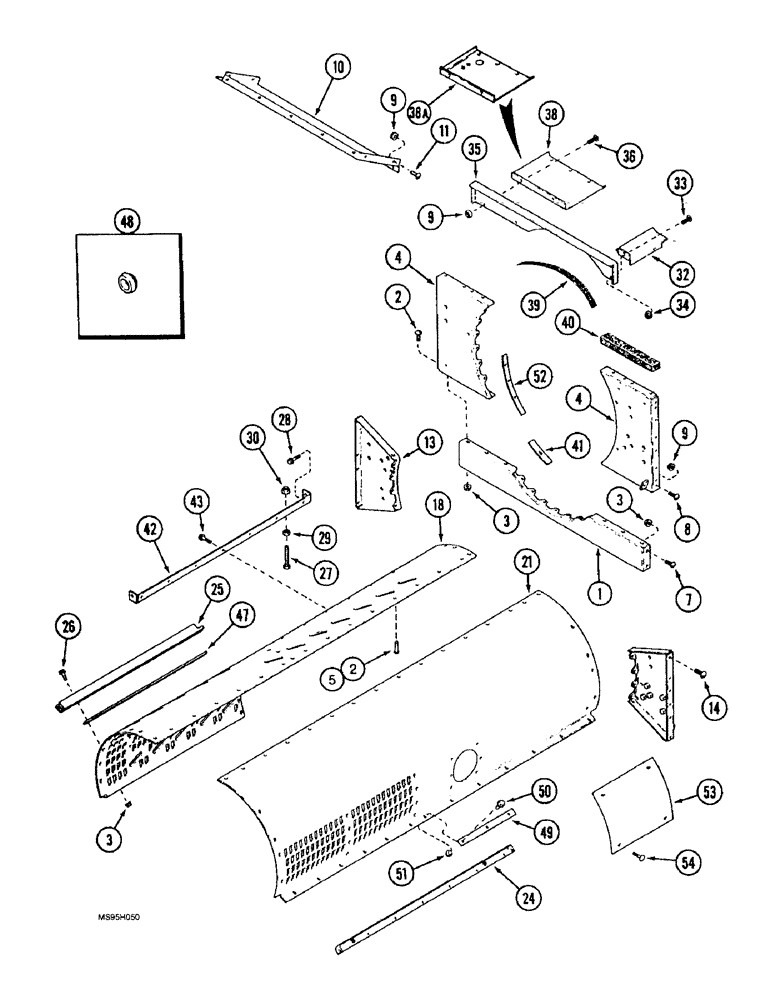

Запчасти Case IH 1644 (9B-22) - CAGE, FRONT (14) - ROTOR, CONCANVES & SIEVE

1

192297C2

SUPPORT

lower seal

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

199484C1

GEAR

SUPPORT rotor cage, left hand, front

1шт.

4

1338045C2

SUPPORT

rotor cage, right hand, front

1шт.

5

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT round head, special, 3/8 NC x 1-1/4 inch

6шт.

7

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

193152C1

SUPPORT

grain tank, front

1шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

9шт.

13

1338056C1

SUPPORT

rotor cage, left hand, intermediate

3шт.

13

1338044C1

SUPPORT

rotor cage, right hand, intermediate

1шт.

14

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

18шт.

18

1318829C1

CAGE

SUPPORT rotor, left hand, solid

1шт.

21

1318419C2

CAGE

SUPPORT rotor, right hand

1шт.

24

188333C1

SUPPORT

cage, right hand

1шт.

25

1309191C1

SUPPORT

cage, left hand

1шт.

26

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT hex flange, special, 3/8 NC x 1 inch

15шт.

27

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

hex, 1/2 NC x 3-1/2 inch concave adjusting

2шт.

28

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

hex flange, special, 1/2 NC x 1 inch

2шт.

29

25933R1

JAM NUT,Jam, 1/2"-13, G8

hex jam, 1/2 inch NC

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

32

193862C1

SUPPORT

gear housing inner extension

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

soltted truss head, 5/16 NC x 3/4 inch

3шт.

34

488837C1

SPRING NUT

speed, 5/16 inch NC

2шт.

35

186169C1

SUPPORT

grain tank to cage, upper

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

10шт.

38

186168C1

SUPPORT

side panel to cage, forward, no longer available, order Ref. 38A, 186168A4

1шт.

38a

186168C4

SHEET

SUPPORT side panel to cage, replaces 186168C1 Ref. 38

1шт.

39

191498C1

SEALING STRIP

SEAL, 20-13/16 inch (528 mm) long, grain tank support

1шт.

40

318103R2

SEAL

9-1/2 inch (243 mm) long, cut from 73220C1 bulk

2шт.

41

186797C2

SUPPORT

PLATE filler rear, cage

1шт.

42

185386C1

SUPPORT

cage, left hand

1шт.

43

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT hex flange, special, 3/8 NC x 1 inch

1шт.

43

135320A1

SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT round head, special, 3/8 NC x 1-1/4 inch

19шт.

47

183323C1

STRAP

cage grate

1шт.

48

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

1/4 inch ID grain tank to cage support

1шт.

48

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

rubber, 1/2 inch ID grain tank to cage support

1шт.

48

195803C1

GROMMET

3/8 inch housing, inner sheet hole

1шт.

49

195803C1

GROMMET

BAR cage reinforcement, front

1шт.

50

186785C2

REINFORCEMENT

BOLT hex flange, special, 1/2 NC x 1 inch

1шт.

51

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

NUT hex serrated flange, 1/2 inch NC

1шт.

52

1318899C1

SUPPORT

rotor cage, left hand, front

1шт.

53

1979540C1

COVER

rotor separator, upper, right hand

2шт.

54

1324105C1

BOLT,Spcl, T-Hd, 3/8" - 16 x 38mm, HT

flat raised head, special

8шт.

73220C1

FILLING STRIP

SEAL bulk, adhesive backed, 1/2 (13) x 3/4 (19) x 48 inch (1219 mm) long

1шт.
