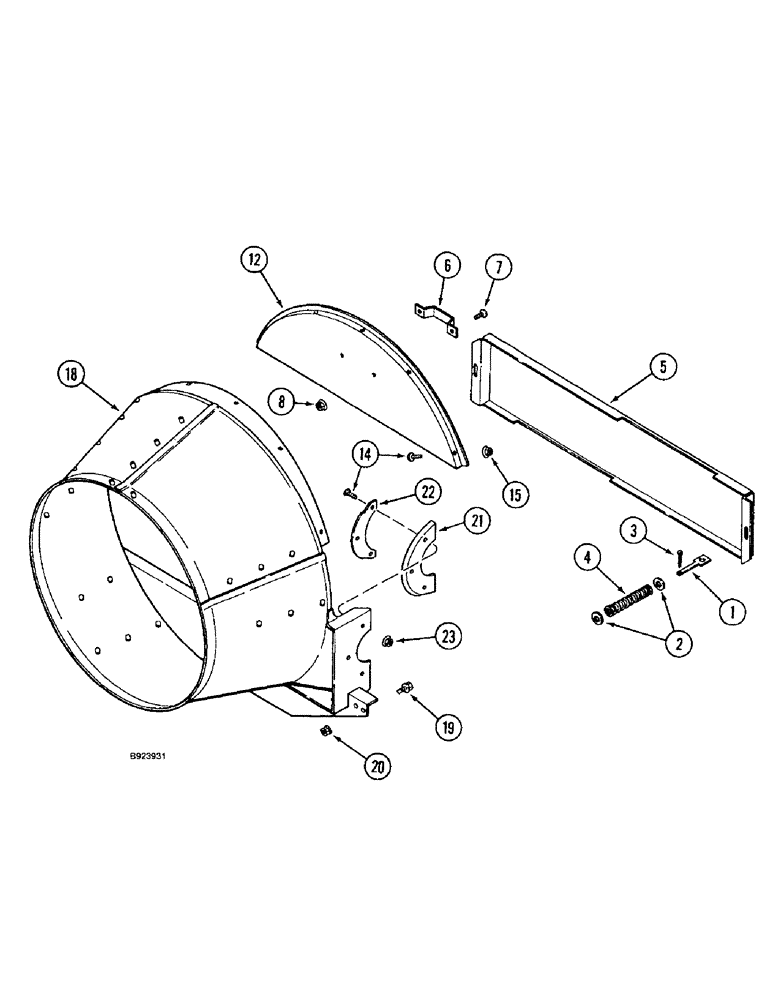

Запчасти Case IH 1644 (9B-20) - CONE (14) - ROTOR, CONCANVES & SIEVE

1

188029C1

LATCH

separator, front door

2шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

3

432-816

COTTER PIN,1/8" x 1"

2шт.

4

M296

SPRING

front door latch

2шт.

5

193436C3

INSPECTION DOOR

separator front

1шт.

6

160638C1

HANDLE

door rotor, front

1шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

12

1300208C91

DOOR

ASSEMBLY, access, rotor front

1шт.

179749C2

PRODUCT GRAPHIC

DECAL Danger, do not open until engine and all mechanisms have stopped

1шт.

13

1302515C1

DOOR

rotor, front, support, without decal, not shown

1шт.

14

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

5шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

18

1317770C3

CONE

transition corn and grain, replaces 1317770C2

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

4шт.

20

231-5146

FLANGE NUT,3/8"-16

4шт.

21

195202C1

SEAL

feeder

2шт.

22

195409C1

PLATE

with weld bolt, seal backup

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.
