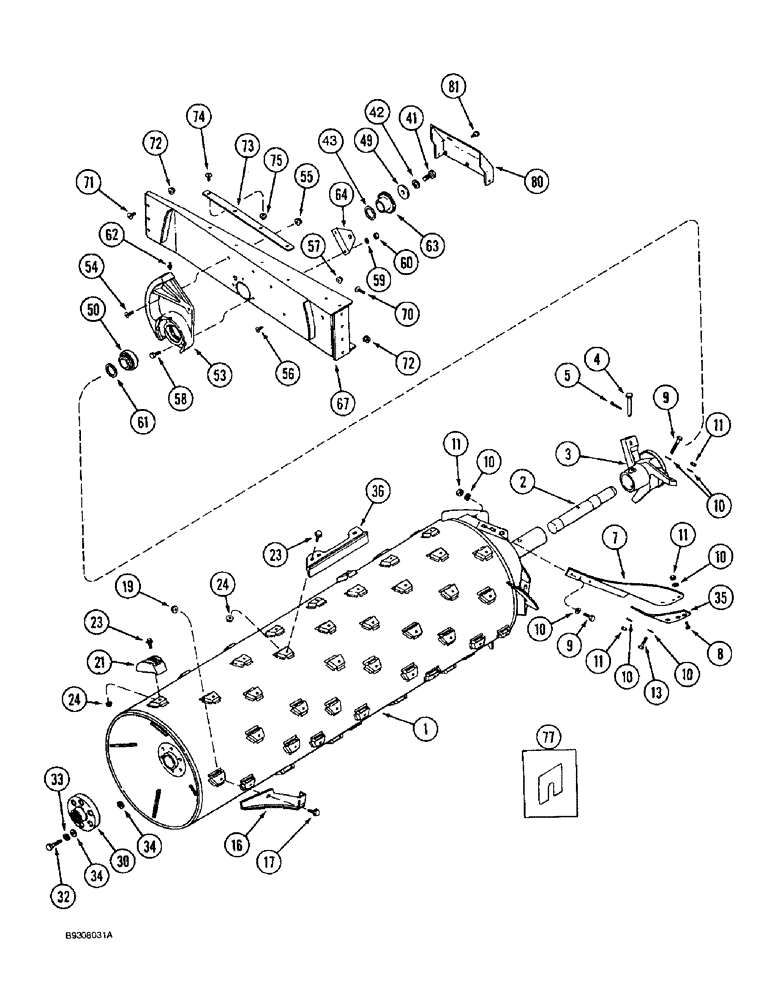

Запчасти Case IH 1644 (9B-16) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1347121C2

ROTOR

ASSEMBLY, threshing, without spiked bars, Includes: Ref. 2 - 43

1шт.

1

1317405C91

ROTOR

ASSEMBLY, threshing, Edible Beans and Rice, no longer available, replaced by 1317405C92 on larger combines for rice only, Includes: Ref. 2 - 43, Serial Range: -JJC0098060

1шт.

1

104347A1

ROTOR

ASSEMBLY, threshing, without spiked bars, Edible Beans and corn, Includes: Ref. 2 - 43

1шт.

2

191545C1

SHAFT

rotor, front

1шт.

3

191546C2

IMPELLER

rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT rotor blade, set of 3, replaces 1057446C1, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE rotor

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket, 1/2 NC x 1-1/2 inch

9шт.

9

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

11

199528A1

NUT

hex, self locking, 1/2 inch, NC grade 8

24шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

16

1317690C1

ANGLE

kicker

3шт.

16

1968967C1

KIT

ANGLE kicker, chrome

3шт.

17

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 inch NC, gtade 8

6шт.

21

1309336C1

BAR

rasp, without spike used on 1347121C2 rotor, Edible Bean

48шт.

21

1309336C1

BAR

rasp, without spike used on 104347A1 rotor, Edible Bean and Corn, Includes: Ref. 23 and 24

42шт.

21

1968743C1

BAR

rasp, without spike, chrome rotor, Includes: Ref. 23 and 24

33шт.

21

1968970C1

BAR

rasp, with spike, chrome

21шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 inch NC, grade 8

1шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

1309185C1

SUPPORT

PLATE wear, chrome

3шт.

36

1318976C1

BAR

separator, not chromed

3шт.

36

1968969C1

BAR

separator, chrome

3шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

BOLT hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 3-3/4 x 1/16 inch

1шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi position tachometer

1шт.

64

1301239C1

BRACKET

rotor tachometer

1шт.

67

193163C5

SUPPORT

front bearing

1шт.

70

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

4шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

73

1308967C1

BAR

front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

77

1324208C1

SHIM KIT

KIT shim rotor rasp

1шт.

80

182845C4

SHIELD

sensor

1шт.

81

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.
