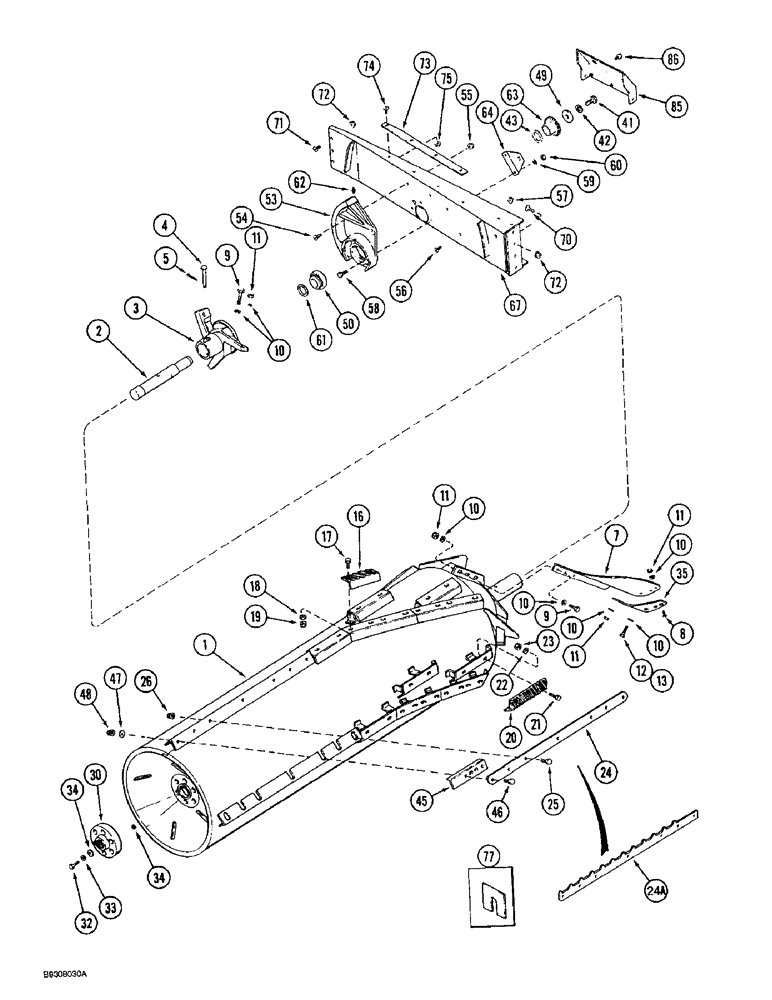

Запчасти Case IH 1644 (9B-12) - ROTOR, CORN AND GRAIN (14) - ROTOR, CONCANVES & SIEVE

1

1302214C96

ROTOR

ASSEMBLY, threshing, Includes: Ref. 2 - 35

1шт.

2

191545C1

SHAFT

rotor, front

1шт.

3

191546C2

IMPELLER

rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT rotor blade, set of 3, replaces 1957446C1, Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE rotor

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket, 1/2 NC x 1-1/2 inch

9шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

39шт.

11

199528A1

NUT

hex, self locking, 1/2 inch NC, grade 8

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

16

1308829C2

BAR

helical rasp support

12шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

16

1324583C2

BAR

helical rasp support, chrome

12шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

16a

1994891C1

BAR

helical smooth, not shown

12шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

19

232-4136

LOCK NUT,3/8"-16, GC

24шт.

20

1308668C1

RASP BAR

straight, rasp

9шт.

20

1324582C1

BAR

straight, rasp, chrome

9шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

20a

1994890C1

RASP BAR

straight, smooth, not shown

9шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

18шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

18шт.

23

232-4136

LOCK NUT,3/8"-16, GC

18шт.

24

1303038C2

BAR

rotor, rear straight

3шт.

24

1324580C1

BAR

rotor, rear straight, chrome

3шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

24a

1302103C3

BAR

rotor, with teeth, rear, straight

3шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

21шт.

26

231-5146

FLANGE NUT,3/8"-16

21шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

12шт.

35

183253C2

BAR

PLATE wear

3шт.

35

1309185C1

SUPPORT

PLATE wear, chrome

3шт.

Not a part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

BOLT hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

45

183335C3

SUPPORT

BRACKET rotor extension

3шт.

46

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

47

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

6шт.

48

231-5146

FLANGE NUT,3/8"-16

6шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi position tachometer

1шт.

64

1301239C1

BRACKET

rotor attachment

1шт.

67

193163C5

SUPPORT

front bearing

1шт.

70

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

4шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

73

1308967C1

BAR

front door hold down rotor

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

1324031C1

PACKAGE

KIT grain rotor separator angle bar support, Includes: Ref. 77

1шт.

1324208C1

SHIM KIT

KIT shim rotor rasp, Includes: Ref. 77

1шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.010 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.030 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.053 inch

28шт.

77

NSS

NOT SOLD SEPARAT

SHIM, 0.093 inch

28шт.

85

182845C4

SHIELD

sensor

1шт.

86

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.
