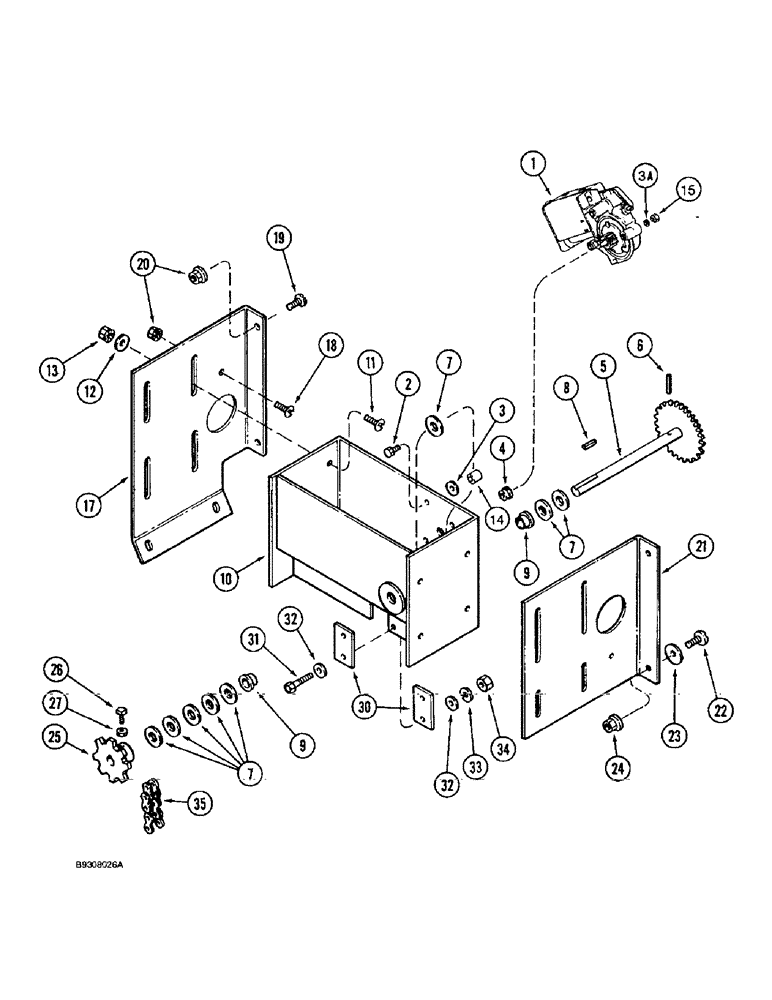

Запчасти Case IH 1644 (9B-08) - ROTOR DRIVE, SPEED ADJUSTMENT (14) - ROTOR, CONCANVES & SIEVE

1

126573C1

MOTOR, ELECTRIC

variable speed, Serial Range: -JJC0097942

1шт.

1

111787A1

MOTOR, ELECTRIC

variable speed, Start Serial: JJC0097942

1шт.

1

111787A2R

REMAN-ELECTRIC MOTOR

1644 CASE IH AXIAL-FLOW COMBINE, variable speed, Start Serial: JJC0097942 (1/93-12/94), Reman for New PN 111787A1

1шт.

1

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used with 126573C1

3шт.

2

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Used with 111787A1, Ref. 1 motor

2шт.

3

495-81137

WASHER,13/32" x 1" x .224"

flat, 13/32 x 1 x 16/64, inch used with 126573C1 Ref. 1 motor

3шт.

3a

492-11025

LOCK WASHER,1/4"

Used with 111787A1 Ref. 1 motor

2шт.

4

55825C1

BUSHING,8.03mm ID x 12.74mm OD x 9.65mm L

electric motor

1шт.

5

194338C1

GEAR

rotor gear

1шт.

6

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

5/32" x 1 1/4", Slotted

1шт.

7

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

8

Q5024

KEY,3/16" Sq x 1", Par

1шт.

9

55826C1

BUSHING,15.9mm ID x 20.7mm OD x 12.7mm L

gear shaft

2шт.

10

183227C1

SUPPORT ASSY.

motor with three motor mounting holes, used with 126573C1

1шт.

10

183227C2

SUPPORT

motor with 5 motor mounting holes, used with 111787A1

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

12

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

8шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

113485A1

SPACER

17 mm, used with 111787A1 motor

2шт.

15

425-104

NUT,1/4"-20, Cl 5

Used with 111787A1 motor

2шт.

17

188203C3

SUPPORT

rotor adjusting, left hand

1шт.

18

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

20

231-5146

FLANGE NUT,3/8"-16

6шт.

21

194336C2

SUPPORT

rotor adjusting, RH

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

23

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

194337C1

SPROCKET

control, 8 teeth

1шт.

26

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

set, square head, 1/4 NC x 3/4 inch, cup point

2шт.

27

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

1302173C1

PAD

motor support

2шт.

31

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

NSS

NOT SOLD SEPARAT

CHAIN ASSEMLY, variable drive

1шт.

Use 31 links of No. 2040 chain, (1) connecting link 457113R91 and (2) offset links 457114R91

1шт.
