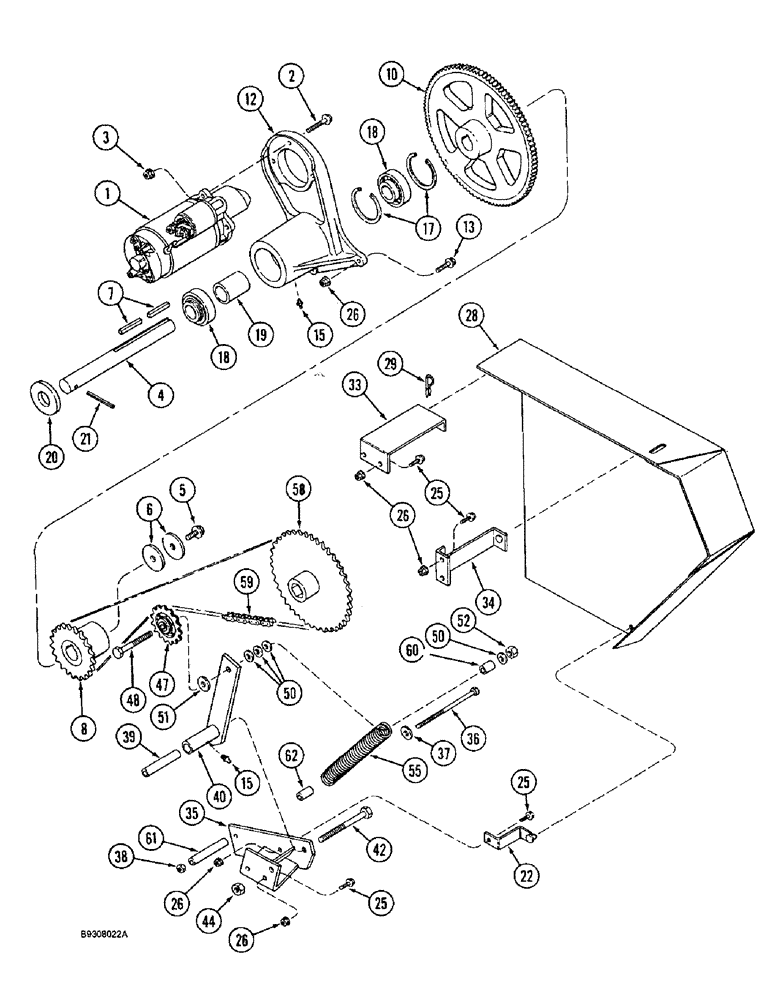

Запчасти Case IH 1644 (9A-44) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

245927C91

STARTING MOTOR

ASSEMBLY, feeder reverser, see parts list Figure 4-46

1шт.

1

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

1

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

231-5146

FLANGE NUT,3/8"-16

3шт.

4

1321534C1

SHAFT

reverser

1шт.

5

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 inch

1шт.

6

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

flat, 17/32 x 2 x 7/64 inch

2шт.

7

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

8

1329717C1

SPROCKET

drive, 20 tooth

1шт.

10

1321537C91

FLYWHEEL

motor reverser

1шт.

12

1321539C1

HOUSING

shaft reverser

1шт.

13

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

BOLT hex flange, special, 3/8 NC x 1-1/2 inch

2шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

100-21315

SNAP RING,3.156", Int, #315

2шт.

18

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

ball

2шт.

19

1321523C1

SPACER

bearing

1шт.

20

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

flat, 39 x 78 x 7 mm, hardened

1шт.

21

38-33248

PIN,1/2" x 3", Coiled

1/2" x 3", Coiled

1шт.

22

1979317C1

SUPPORT ASSY.

shield

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special, 3/8 NC x 1 inch

1шт.

26

231-5146

FLANGE NUT,3/8"-16

1шт.

28

120866A1

GUARD

SHIELD feeder reverser, includes decal

1шт.

29

480523R1

HAIR PIN COTTER

1шт.

33

1329840C1

BRACKET

support, rear

1шт.

34

1329838C2

BRACKET

support, front

1шт.

35

1979299C2

SUPPORT

idler bar

1шт.

36

25253R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

hex, 3/8 NC x 7 inch, grade 8

1шт.

37

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch

1шт.

38

232-4136

LOCK NUT,3/8"-16, GC

1шт.

39

1979303C1

SPACER

TUBE

1шт.

40

1979305C1

ARM

SUPPORT idler

1шт.

42

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

1шт.

44

232-4118

NUT,1/2"-13, GC

1шт.

47

629972R91

DRIVE SPROCKET,15T

idler, 15 teeth

1шт.

48

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 inch

1шт.

50

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

4шт.

51

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

52

232-41110

NUT,5/8"-11, GC

1шт.

55

1330032C1

SPRING

return, idler

1шт.

58

1329720C2

SPROCKET

driven, 40 teeth

1шт.

59

1321524C94

CHAIN,60, 76 Links x 19.05mm = 1447.8mm

57 inch long, 76 links

1шт.

60

UA17298

SPACER,7/8" Tube x 1 1/16"

7/8 x 1-1/16 inch

1шт.

61

1979304C1

SPACER

spring

1шт.

62

154397C1

SPACER,5/8" Tube x 1 1/4"

tubular, 5/8 O.D. x 1-1/4 inch long

1шт.

111714A1

LINK,Connecting

KIT connecting link, includes link, O-rings, link plate, pin, lube pak and instructions not shown

1шт.
