Заказать запчасти

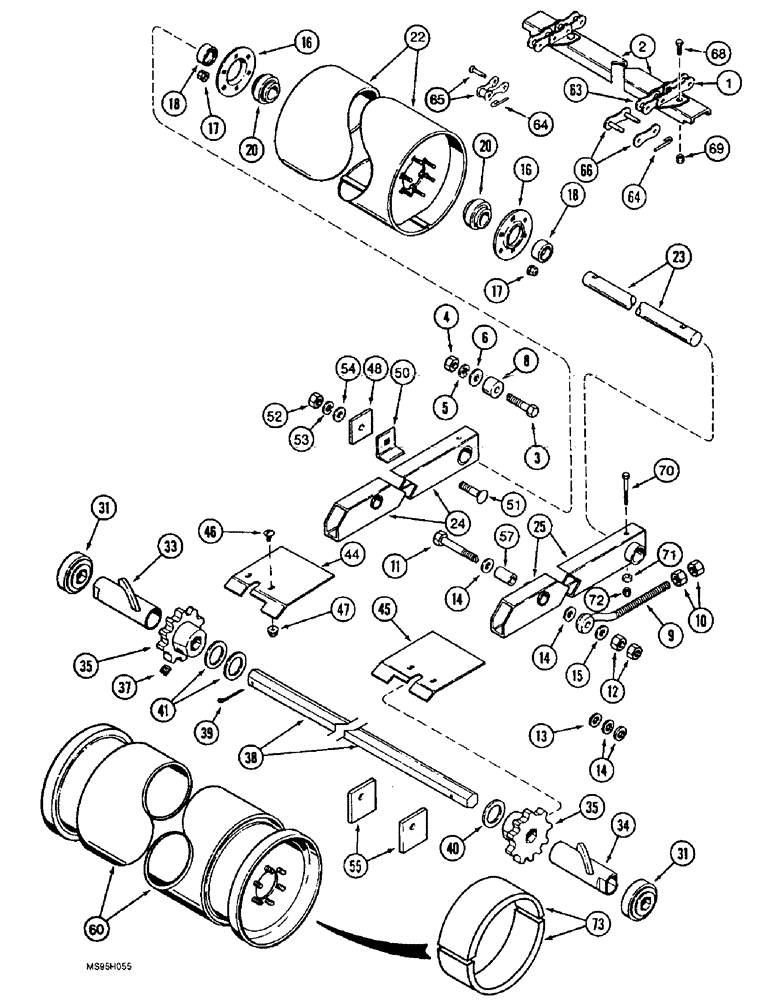

Запчасти Case IH 1644 (9A-34) - FEEDER, CONVEYOR (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
117869A1
CHAIN,Feeder
ASSEMBLY, conveyor, with 10 smooth slats, 47 inch feeder, corn and grain, A557
1шт.
1
117864A1
CHAIN,Feeder
ASSEMBLY, conveyor, with 10 serrated slats, 47 inch feeder, corn and grain, A557
1шт.
1
117871A1
CHAIN,Feeder
ASSEMBLY, conveyor, with smooth slats, 54-1/2 inch feeder, corn and grain, A557
1шт.
2
118268A1
SLAT
ASSEMBLY, smooth, includes channel and hardware, 47 or 54-1/2 inch feeder, corn and grain
1шт.
2
118270A1
SLAT
ASSEMBLY, serrated, includes channel with angle and hardware, 54-1/2 or 60 inch feeder
1шт.
3
189709C1
BOLT,Hex, 1/2" - 13 x 3"
hex, special clamp, chain
2шт.
4
425-108
NUT,1/2" - 13, Gr 5
2шт.
5
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
6
495-81162
WASHER,17/32" x 1 1/2" x .179"
flat, 17/32 x 1-1/2 x 11/64 inch
2шт.
8
197211C1
SPACER
stop drum
2шт.
9
176508C1
BOLT,5/8" - 11 x 228.60mm
tightening, special
2шт.
10
425-1010
NUT,5/8"-11, G5
1шт.
11
187218C1
BOLT
hex, special, 5/8 NC x 4-1/2 inch drum support arm
2шт.
12
425-1010
NUT,5/8"-11, G5
4шт.
13
495-81026
WASHER,21/32" x 1 1/2" x .060"
flat, 21/32 x 1-1/2 x 3/64 inch
1шт.
16
1330461C1
FLANGED BEARING
bearing drum
4шт.
17
1306680C1
FLANGE NUT
hex flange, self locking, special 3/8 inch NC
12шт.
18
557995R11
COLLAR
bearing, with set screw
2шт.
20
619738R91
BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"
ball drum, conveyor
2шт.
22
1957437C1
DRUM
conveyor, w/out stone retarder
1шт.
23
187207C2
SHAFT,31.75mm OD x 909.3mm L
SHAFT drum feeder
1шт.
24
1338287C3
ARM
drum, LH, used on models with smooth slats and with or without stone retarder, replaces 1338291C2, Ref. 24
1шт.
25
1338288C3
ARM
drum, RH, used on models with smooth slats and with or without stone retarder, replaces 1338292C2, Ref. 25
1шт.
31
179665C91
BALL BEARING,38.1mm Hex x 85mm OD x 30mm W
ball shaft
2шт.
33
178780C2
SPACER
sprocket, left hand
1шт.
34
178781C2
SPACER
sprocket, right hand
1шт.
35
1970248C1
SPROCKET ASSY.
chain conveyor
2шт.
37
197643C1
SET SCREW
set sprocket
1шт.
38
1320160C3
SHAFT
conveyor
2шт.
39
432-2040
COTTER PIN,5/16" x 2 1/2"
5/16" x 2 1/2"
2шт.
40
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
flat, 1-25/32 x 2-1/2 x 7/64
1шт.
41
495-81092
WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk
flat, 1-25/32 x 2-1/2 x 3/64 inch
1шт.
1300464C91
PACKAGE
KIT stripper, feeder pivot, Includes: Ref. 44 - 47
1шт.
Stripper plate in kit has a welded wear bar
1шт.
44
185818C1
STRIPPER ASSY.
pivot, left hand
1шт.
45
185819C1
STRIPPER ASSY.
pivot, right hand
1шт.
46
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
slotted truss head, special, 3/8 NC x 3/4 inch
4шт.
47
231-5146
FLANGE NUT,3/8"-16
4шт.
50
1345418C1
ANGLE
stop bar upper
2шт.
52
425-1010
NUT,5/8"-11, G5
2шт.
53
492-11062
BEARING WASHER,5/8"
2шт.
54
498-81008
SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole
square hole, 21/32 x 1-1/4 x 1/16 inch
2шт.
55
187225C1
BAR
upper stop adjusting with stone retarder
2шт.
57
187217C1
SPACER,7/8" Tube x 1 13/16"
2шт.
60
1957439C3
ROLLER
conveyor with stone retarder
1шт.
63
1989692C1
LINK,A557, 3 Links
attaching, 3 link section, includes brackets, does not include chain mounting hardware
1шт.
64
1329837C2
PIN,2.63mm OD
S type, roller, A557 chain
1шт.
65
1324835C1
OFFSET LINK
offset, includes pin A557 chain
1шт.
66
1324294C1
LINK,40.893mm Pitch
connecting, includes pin conveyor, A557 chain
1шт.
68
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
A557 chain
1шт.
69
1306680C1
FLANGE NUT
hex flange, self locking, special, 3/8 inch NC, A557 chain
1шт.
70
326-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8
2шт.
72
231-1446
NUT,3/8" - 16, Gr 5
2шт.
112047A2
KIT
KIT filler strip, consists of (4) strips, use to service 1957439C3
1шт.
73
112046A2
PROTECTION STRIP
filler
4шт.
Выбрано товаров: 60
