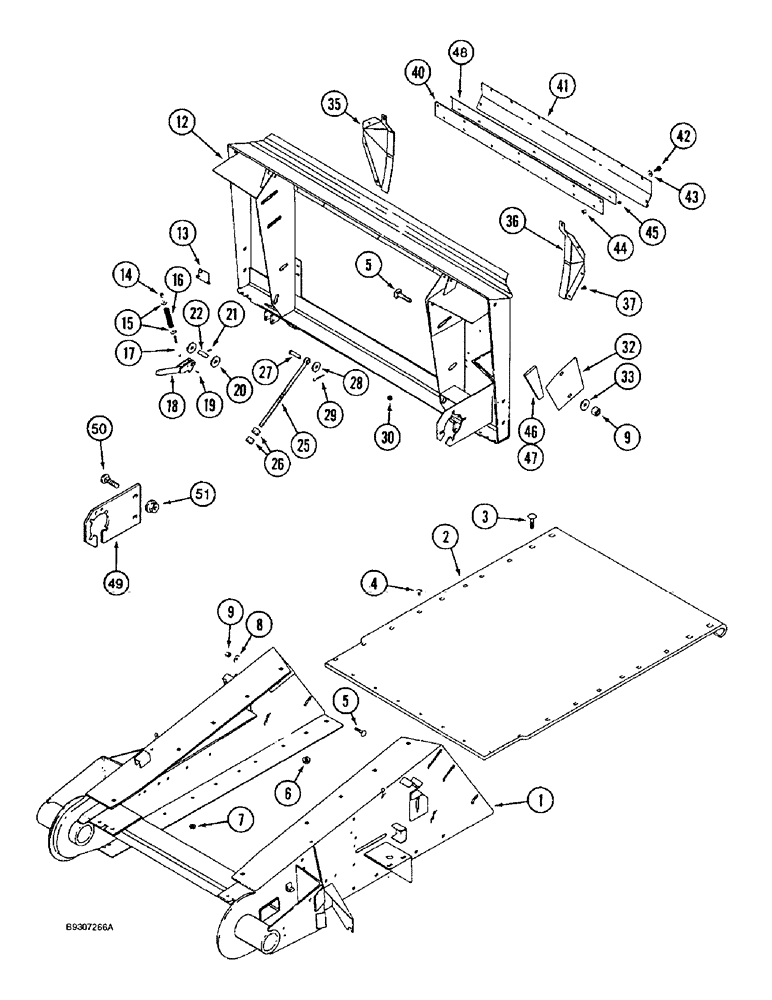

Запчасти Case IH 1644 (9A-28) - FEEDER, HOUSING AND ADAPTER (13) - FEEDER

1

120871A2

HOUSING

feeder, includes decal, 47 inch, replaces 120871A1, Includes: Ref. 1A

1шт.

1

120873A2

HOUSING

feeder, includes decal, 54-1/2 inch, replaces 120873A1, Includes: Ref. 1A

1шт.

1a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Not shown

1шт.

2

1324576C1

PLATE

lower support, 47 inch feeder

1шт.

2

185820C1

SHEET

lower support, perforated 47 inch feeder

1шт.

2

1324578C1

PLATE

lower support, 54-1/2 inch feeder

1шт.

2

1313970C1

PANEL

lower support, perforated 54-1/2 inch feeder

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special (6 - 8)

6шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

5/8 NC x 1-3/4 inch

5шт.

6

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 inch NC, grade 8

8шт.

7

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

hex flange, special, 3/8 inch NC (4 - 6)

4шт.

8

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

9

231-14110

LOCK NUT,5/8"-11, GB

hex, self lockiing, NC

6шт.

12

1989330C2

SHIELD

ADAPTER feeder

1шт.

13

1338021C1

PIN,7.94mm OD

retaining lock, latch

2шт.

14

231-1435

LOCK NUT,5/16"-18, GB

Hex, self locking

2шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

367833R1

SPRING

rod latch

2шт.

17

177138C1

ROD

latch

2шт.

18

179024C1

HINGE

HANDLE lock latch

2шт.

19

18518R1

LOCK PIN,1/8" x 1", Slotted

2шт.

20

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

4шт.

21

138-2005

PIN,1/4" x 1", Coiled

2шт.

22

177141C1

PIN,15.88mm OD x 41mm L

pivot handle

2шт.

25

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYE adjusting

2шт.

26

329-108

NUT,1/2"-13, G8

2шт.

27

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

headed, 1/2 x 2-1/4 inch

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

32

1327737C2

PLATE

COVER side feeder

2шт.

33

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

35

184853C1

DEFLECTOR

front, left hand

1шт.

36

184854C1

DEFLECTOR

front, right hand

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

10шт.

40

1319474C1

BAND

COVER top, feeder

1шт.

41

1319479C1

COVER

adapter, feeder

1шт.

42

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

43

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

5шт.

43

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

7шт.

44

232-4115

LOCK NUT,5/16"-18, GC

5шт.

44

231-5345

FLANGE NUT,Flg, 5/16"-18

hex flange, self locking, 5/16 inch NC

7шт.

45

1321640C1

GROMMET

cover adapter

2шт.

46

1327752C1

FOAM INSULATION

side, left hand

1шт.

47

1327753C1

FOAM INSULATION

side, right hand

1шт.

48

109253A1

LARGE PLATE

PLATE, LARGE STRIP feeder cover

1шт.

49

1957434C1

SUPPORT

jackshaft bearing, left hand

1шт.

50

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

2шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
