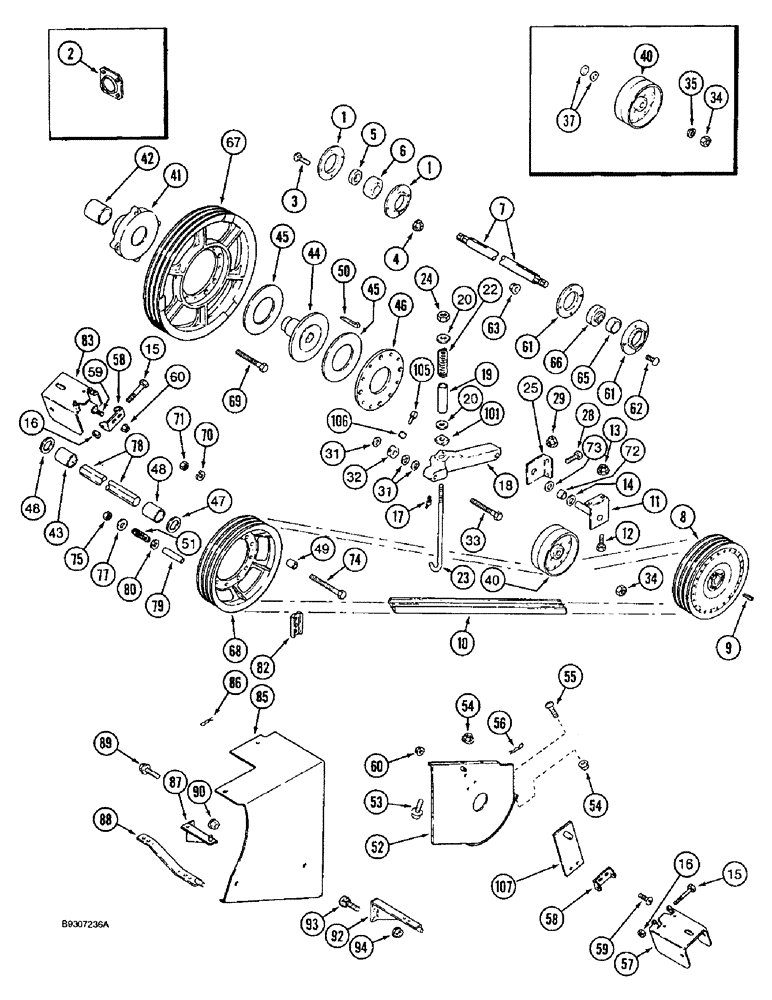

Запчасти Case IH 1644 (9A-24) - FEEDER, JACKSHAFT DRIVE (13) - FEEDER

1

663562R1

FLANGE

bearing left hand round design

2шт.

2

1307583C1

FLANGED BEARING

bearing left hand, square design

2шт.

3

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

455112R11

COLLAR

locking, bearing

1шт.

6

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

ball, left hand, jackshaft

1шт.

7

1319482C2

SHAFT

cross jackshaft

1шт.

8

1321645C1

PULLEY

driven, 13-1/2 inch O.D. feeder

1шт.

9

Q1376

KEY

square tapered, 3/8 x 2-1/4 inch

1шт.

10

1313095C2

V-BELT,131.69" L

Drive, 47 Inch Feeder

1шт.

10

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Drive

1шт.

11

182322C1

SUPPORT

pivot idler

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

15

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

BOLT hex, 1/4 NC x 4-1/2 inch

2шт.

16

231-4144

NUT,1/4"-20, GB

2шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree 1/4-28 special taper, x 13/16 inch

1шт.

18

1321982C1

ARM

tightener

1шт.

19

176581C1

SPACER

spring, adjusting bolt

1шт.

20

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

flat, 17/32 x 1-3/4 x 3/32 inch

2шт.

22

PO3A

SPRING

tightener bolt

1шт.

23

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

idler draw

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

182323C1

SUPPORT

idler

1шт.

28

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

31

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

flat, special, 41/64 x 1-1/4 x 1/8 inch

1шт.

32

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

pulley, 17 x 35 x 15 mm

1шт.

33

135260A1

BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5

BOLT hex, special, 5/8 NC x 5 inch special

1шт.

33

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch, if used

1шт.

34

425-1010

NUT,5/8"-11, G5

If used

1шт.

34

232-41110

NUT,5/8"-11, GC

1шт.

35

492-11062

BEARING WASHER,5/8"

1шт.

37

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

40

176579C1

IDLER

drive tightener 8 inch O.D.

1шт.

41

1305220C91

HUB ASSY.

clutch outer

1шт.

42

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

hub

1шт.

43

1305393C1

SPACER

2-35/64 inch long feeder pivot shaft, left hand

1шт.

44

1305154C2

HUB

slip clutch

1шт.

45

181579C1

DISC

DISC friction clutch

2шт.

46

185955C1

PLATE

friction

1шт.

47

584608R1

SPACER

3-3/8 inch long

1шт.

48

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

48

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

49

1305375C1

SPACER

drive lug

4шт.

50

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

51

1305692C2

SPRING

slip clutch, 10 w/rock trap (8 - 10)

8шт.

52

1345355C1

GUARD ASSY.

SHIELD support, front

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

55

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

56

480523R1

HAIR PIN COTTER

1шт.

57

1345358C1

GUARD

SHIELD jackshaft end

1шт.

58

1345199C1

SUPPORT

HINGE shield, feeder jackshaft

2шт.

59

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

60

231-5146

FLANGE NUT,3/8"-16

4шт.

61

619333R1

FLANGED BEARING

bearing, right hand

2шт.

62

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

carriage, 1/2 NC x 1 inch

4шт.

63

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

65

664598R11

COLLAR

lock, bearing

1шт.

66

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

ball, right hand, jackshaft

1шт.

67

1305297C1

PULLEY

driven, 22-9/16 inch O.D.

1шт.

68

1305288C1

PULLEY

drive, 16-11/16 inch O.D. feeder

1шт.

69

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

4шт.

70

492-11038

LOCK WASHER,3/8"

4шт.

71

329-106

NUT,3/8"-16, G8

4шт.

72

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Support pin

1шт.

73

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

74

1315319C1

BOLT,Hex, 3/8" - 16 x 6", Gr 8

hex, special, 3/8 x 6 inch, grade 8

8шт.

75

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

8шт.

77

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

78

1320160C3

SHAFT

conveyor feeder

1шт.

79

1305370C3

SPACER

spring clutch

8шт.

80

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

8шт.

81

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

flat, 1-25/32 x 2-1/2 x 7/64 inch not shown

5шт.

82

1315316C1

SUPPORT

spring slip clutch, with rock trap

2шт.

83

1345357C1

GUARD

SHIELD jackshaft end, left hand

1шт.

85

1321841C1

GUARD

SHIELD jackshaft drive, 47 inch feeder

1шт.

85

1321866C1

GUARD

SHIELD jackshaft drive, 54-1/2 inch feeder

1шт.

86

480523R1

HAIR PIN COTTER

4шт.

87

1327779C1

SUPPORT

shield, upper rear

1шт.

88

1321851C1

SUPPORT

shield, lower rear

1шт.

89

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 NC x 3/4 inch

3шт.

90

231-5146

FLANGE NUT,3/8"-16

3шт.

92

1321853C1

SUPPORT

shield, lower front

1шт.

93

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

94

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

101

194652C1

PIVOT

rod

1шт.

105

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

106

425-105

NUT,5/16"-18, G5

2шт.

107

1957636C1

HOLDER

BRACKET shield retainer

1шт.
