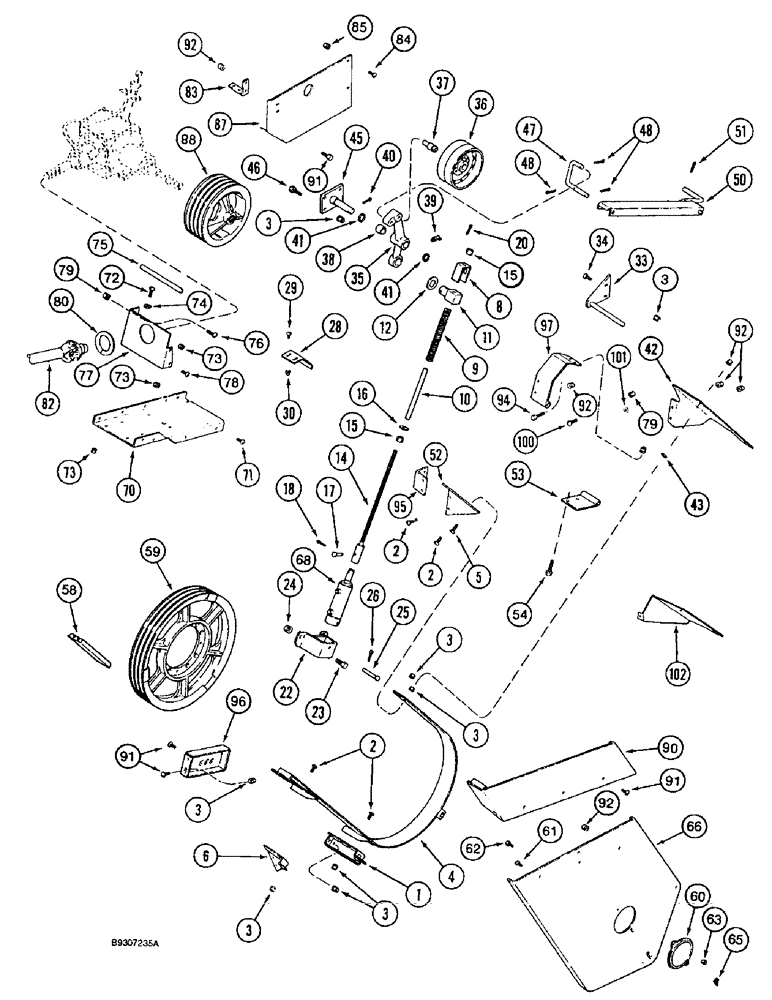

Запчасти Case IH 1644 (9A-20) - FEEDER DRIVE (13) - FEEDER

1

188043C2

SUPPORT

lower belt guard

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

194380C2

GUIDE

belt

1шт.

5

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

6

188045C2

SUPPORT ASSY.

belt guard, rear

1шт.

8

194357C2

CHANNEL

CLIP tightener, special

1шт.

9

PO23

SPRING

tightener rod

1шт.

10

194356C1

TUBE

SPACER spring rod

1шт.

11

186890C4

PIVOT

spring rod replaces 186890C3

1шт.

12

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

flat, 1-17/32 x 2-1/2 x 3/64 inch

1шт.

14

194216C2

ROD

tightener, feeder drive

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

16

495-81163

WASHER,17/32" x 1 1/2" x .120"

flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

17

23304R1

CLEVIS PIN,3/8" x 1 9/16"

1шт.

18

432-612

COTTER PIN,3/32" x 3/4"

1шт.

20

432-1240

COTTER PIN,3/16" x 2 1/2"

1шт.

22

194369C2

SUPPORT

cylinder

1шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

25

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

3/8 x 3-/4 inch, grade 2

1шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

28

194383C3

BRACKET

support, upper

1шт.

29

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

195109C1

ROD ASSY.

BRACKET belt trap

1шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

192105C93

LEVER

ASSEMBLY, idler, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER idler

1шт.

36

174757C1

PULLEY

idler, 8 inch O.D.

1шт.

37

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

pulley

1шт.

38

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1 ID x 1-1/4 O.D. x 1-1/8 inch wide

2шт.

39

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

40

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

41

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

flat, 1-1/32 x 1-1/2 x 1/16 inch

6шт.

42

1321886C1

COVER

belt, upper

1шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

45

185414C2

SUPPORT

pivot

1шт.

46

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

47

192111C1

ROD

retainer

1шт.

48

432-1216

COTTER PIN,3/16" x 1"

3шт.

50

194358C1

GUIDE

belt retainer w/out rock trap

1шт.

50

1989323C2

SUPPORT

GUIDE belt retainer w/rock trap

1шт.

51

432-1216

COTTER PIN,3/16" x 1"

1шт.

52

192131C3

SUPPORT

belt guard upper

1шт.

53

194364C2

HINGE

pivot

1шт.

54

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

58

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

Drive, Without rock trap

1шт.

58

1315168C1

V-BELT,22.23 mm W x 4228.70 mm L

Drive Feeder, with Rock Trap

1шт.

59

1305297C1

PULLEY

driven, 22-9/16 inch O.D. feeder

1шт.

60

188315C1

DOOR

access, belt drive cover

1шт.

61

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

63

231-1444

NUT,1/4"-20, GB

1шт.

65

86627130

WING NUT,1/4"-20

1/4 inch NC

1шт.

66

186189C93

GUARD

SHIELD belt, includes decal

1шт.

188199C1

PRODUCT GRAPHIC

DECAL Caution, Disengage separator clutch and shut off engine before removing shield

1шт.

68

REF

INSTRUCTION

CYLINDER ASSEMBLY, feeder, parts list Figure 8-64

1шт.

69

100-11150

SNAP RING,#150, Ext

Spring rod, not shown

1шт.

70

194521C1

SUPPORT

gear case

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

73

231-5146

FLANGE NUT,3/8"-16

6шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

SEAL, 10 - 5/8 inch (270 mm) long

1шт.

76

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

self locking, truss head, Phillips, special, 3/8 NC x 1 inch

2шт.

77

191399C1

SUPPORT

gear housing, rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

5шт.

79

231-5146

FLANGE NUT,3/8"-16

7шт.

80

191496C1

SEALING STRIP

SEAL, 11-7/8 inch (300 mm) long

1шт.

82

REF

INSTRUCTION

JOINT ASSEMBLY, drive, parts list Figure 9A-8

1шт.

83

186081C1

ANGLE

upper shield

1шт.

84

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

85

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

87

186080C2

SUPPORT

shield, upper

1шт.

88

191603C2

PULLEY

drive, 12 inch O.D.

1шт.

90

1315085C1

GUARD

SHIELD extension, belt w/rock trap

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special 3/8 NC x 3/4 inch

1шт.

92

231-5146

FLANGE NUT,3/8"-16

1шт.

94

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

1шт.

95

1315075C1

ANGLE

SUPPORT shield rear extension

1шт.

96

1315083C1

SUPPORT

shield lower extension, w/rock trap

1шт.

97

189332C5

SUPPORT belt guide, upper models w/rock trap, replaces 189332C3

1шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

101

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

flat, 13/32 x 1-1/4 x 31/64 inch

1шт.

102

1989328C1

COVER

drive belt, upper

1шт.
