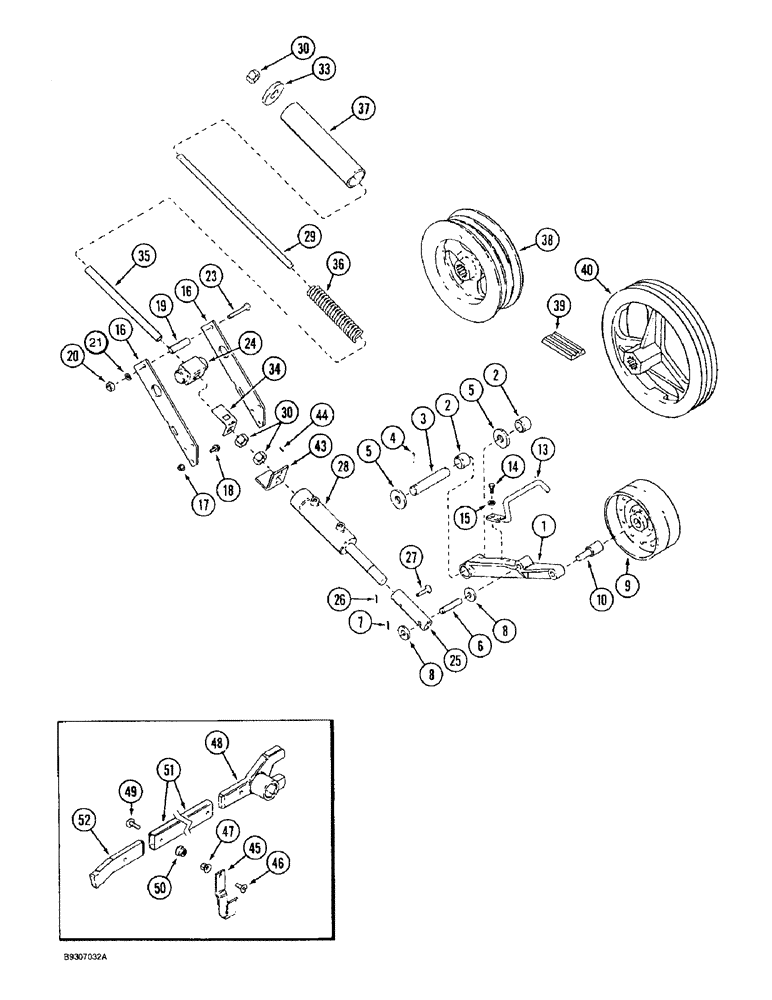

Запчасти Case IH 1644 (9A-14) - SEPARATOR, DRIVE PULLEY AND IDLER (13) - FEEDER

1

195457C92

LEVER

ASSEMBLY, drive belt clutch, Includes: Ref. 2 and 3

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

1 ID x 1-1/4 O.D. x 1-1/8 inch wide drive belt clutch lever

2шт.

3

1315229C2

PIN,25.4mm OD x 135mm L

pivot separator clutch arm

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

495-81176

WASHER,21/32" x 1" x .060"

flat, 21/32 x 1 x 3/64 inch

2шт.

6

195459C1

PIN

lever clutch, drive belt

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

8

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

7шт.

9

174757C1

PULLEY

idler, 8 inch O.D. separator belt

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

drive belt idler pulley

1шт.

13

193284C1

ROD

belt guide clutch pulley

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

194220C1

BAR

cylinder anchor

2шт.

17

231-5146

FLANGE NUT,3/8"-16

6шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

19

196676C1

SPACER

cylinder anchor bar

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch

1шт.

24

186747C3

PIVOT

separator drive arm, replaces 186747C2

1шт.

25

195432C1

TUBE,25.4 mm ID, 34.92 mm OD

BUSHING cylinder extension

1шт.

26

432-612

COTTER PIN,3/32" x 3/4"

1шт.

27

427-6178

CLEVIS PIN,9.53mm OD x 45.24mm L

Hardened

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY, separator clutch, parts list Figure 8-64

1шт.

29

1303058C1

ROD

separator drive tightener

1шт.

30

425-1010

NUT,5/8"-11, G5

3шт.

33

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

flat, 21/32 x 2 x 7/64 inch

1шт.

34

186748C1

BRACKET

drive tightener rod

1шт.

35

186744C1

TUBE,16.7 mm ID, 22.2 mm OD, 289.1 mm Length

SLEEVE tightener rod, inner

1шт.

36

186745C1

SPRING

belt tightener rod

1шт.

37

186746C1

TUBE

HOUSING belt tightener outer, drive

1шт.

38

191461C1

PULLEY,110mm OD

drive, 11 inch O.D. separator

1шт.

39

191241C2

BELT

Drive, 130 inch over center

1шт.

40

191452C2

PULLEY

driven, 14-3/4 inch O.D. separator jackshaft

1шт.

43

186749C1

BRACKET

Tightener rod, Separator

1шт.

44

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

45

1979908C1

CLIP

rocking wrench

2шт.

46

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

48

1979527C1

WRENCH-HOOK

rocking

1шт.

49

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

50

231-5146

FLANGE NUT,3/8"-16

2шт.

51

1979526C2

HANDLE

SUPPORT wrench, rocking

1шт.

52

1979751C2

BAR

rotor rocker

1шт.
