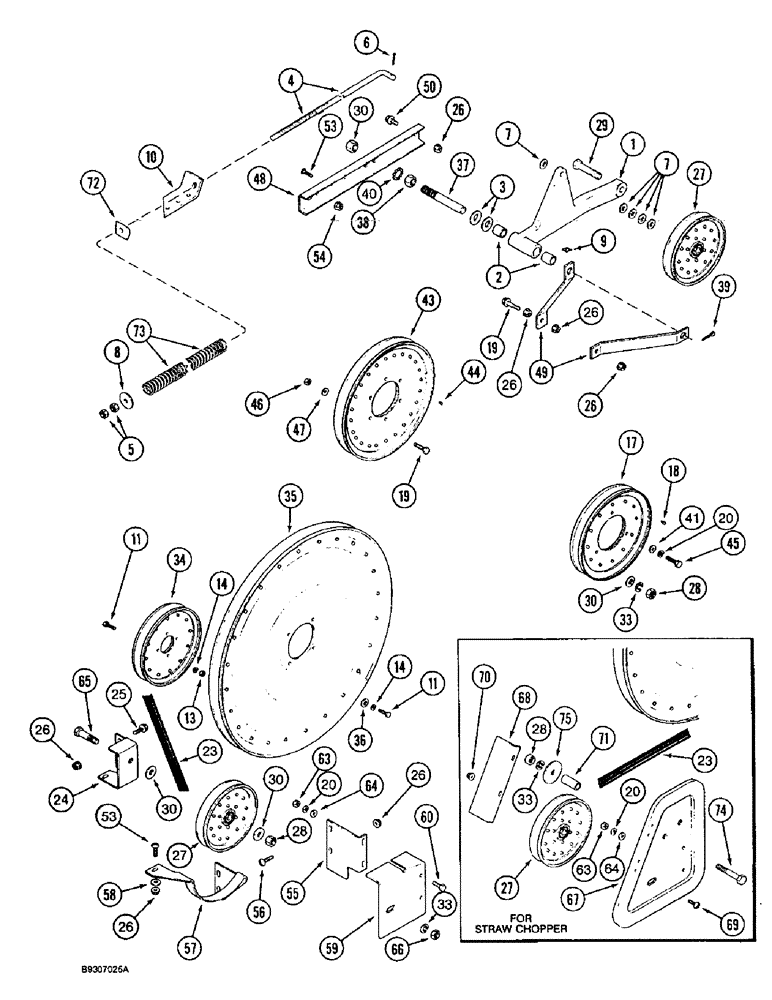

Запчасти Case IH 1644 (9A-04) - BELT DRIVE, RIGHT-HAND SIDE (13) - FEEDER

1

193447C91

ARM

elevator jackshaft idler, Includes: Ref. 2

1шт.

2

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

lever fan jackshaft drive

2шт.

3

495-11081

WASHER,3/4", SAE

1шт.

4

191531C2

ROD

idler lever elevator drive

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

432-1216

COTTER PIN,3/16" x 1"

1шт.

7

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

8

495-81162

WASHER,17/32" x 1 1/2" x .179"

flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

1315483C1

BRACKET

SUPPORT elevatoe drive rod

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

13

425-105

NUT,5/16"-18, G5

7шт.

14

492-11031

LOCK WASHER,5/16"

15шт.

17

193948C1

PULLEY,39.61mm W x 254mm OD

drive, 9-3/4 inch O.D. cleaning unit, Includes: Ref. 18

1шт.

18

47-49

RIVET,FH, 1/4" x 9/16"

flat head solid, 1/4 x 9/16 inch

16шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

20

492-11038

LOCK WASHER,3/8"

7шт.

23

181055C1

BELT,0.879" W x 200.99" L

Drive, Over center, Combine with straw chopper

1шт.

23

186509C2

BELT,0.879" W x 255.99" L

Drive, Over center, Combine without straw chopper

1шт.

24

188253C2

SUPPORT

elevator drive fixed idler

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self locking, special 3/8 NC x 1 inch

4шт.

26

231-5146

FLANGE NUT,3/8"-16

12шт.

27

673214R91

PULLEY

7-5/16 inch (186 mm) O.D. elevator drive and fixed idler

2шт.

28

425-1010

NUT,5/8"-11, G5

3шт.

29

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

30

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

5шт.

33

492-11062

BEARING WASHER,5/8"

2шт.

34

195161C1

PULLEY

drive, 8-3/8 inch O.D. beater drive

1шт.

35

193682C1

PULLEY

driven, 25 inch O.D. shaker shaft

1шт.

36

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

37

188298C2

STUD

PIN pivot, jackshaft arm

1шт.

38

425-1012

NUT,3/4"-10, G5

2шт.

39

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

40

493-41078

LOCK WASHER,Ext Tooth, 3/4"

external tooth lock, 3/4 inch

1шт.

41

495-81137

WASHER,13/32" x 1" x .224"

flat, 13/32 x 1 x 15/64 inch

3шт.

43

183325C1

PULLEY

driven, 13 inch O.D. jackshaft, Includes: Ref. 44

1шт.

44

104235

RIVET,FH, 3/16" x 1/2"

24шт.

45

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

46

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

3шт.

47

495-81129

WASHER,13/32" x 3/4" x .120"

flat, 13/32 x 3/4 x 7/64 inch

6шт.

48

186588C2

CHANNEL

pivot arm support

1шт.

49

182676C2

SUPPORT

elevator pivot

2шт.

50

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

53

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

4шт.

54

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

55

1302352C2

SUPPORT

GUIDE upper, elevator belt

1шт.

56

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 inch

2шт.

57

1302068C2

GUIDE

lower, elevator belt

1шт.

58

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

flat, 13/32 x 1 x 11/64 inch

3шт.

59

1302350C1

SHIELD

elevator fixed idler, combine with straw chopper

1шт.

60

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

63

425-106

NUT,3/8"-16, Cl 5

4шт.

64

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

65

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

66

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

1шт.

67

1302353C1

GUARD

SHIELD elevator fixed idler, combine without straw chopper

1шт.

68

1302351C1

DEFLECTOR

elevator rear shield, combine without straw chopper

1шт.

69

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

2шт.

70

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

71

564737R1

SPACER,7/8" Tube x 2 1/16"

21/32 x 7/8 x 2-1/16 inch

1шт.

72

194652C1

PIVOT

rod arm

1шт.

73

155311C1

SPRING

arm rod

1шт.

74

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

75

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

flat, 21/32 x 2-1/2 x 7/64 inch

1шт.
