Запчасти Case IH 1644 (9H-34) - DECALS, CAUTION, DANGER, WARNING (12) - CHASSIS

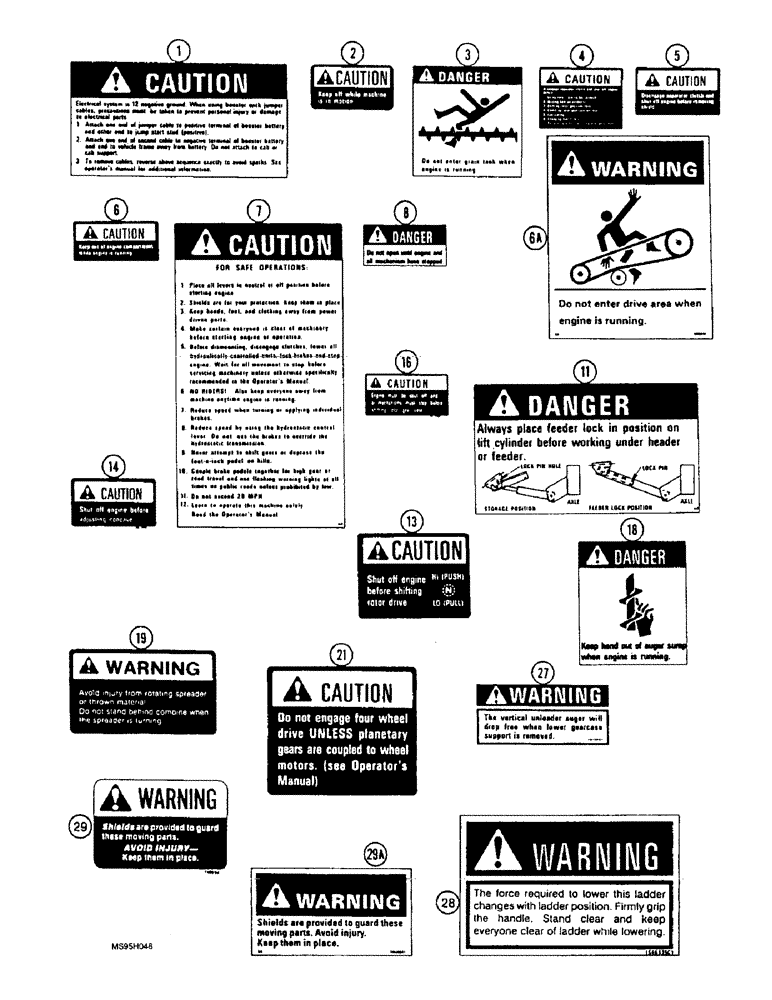

Схема запчастей Case IH 1644 - (9H-34) - DECALS, CAUTION, DANGER, WARNING (12) - CHASSIS
6a
1
13
2
16
18
29a
7
29
27
19
5
6
11
3
28
8
21
4
14

Артикул

Название

Примечание

Количество

1

245693C1

DECAL

caution, electrical system is 12 negative ground

1шт.

1

245695C1

DECAL

caution, electrical system is 12 negative ground (French)

1шт.

1

245694C1

DECAL

caution, electrical system is 12 negative ground (Spanish)

1шт.

1

245696C1

DECAL

caution, electrical system is 12 negative ground (German)

1шт.

2

2754442R1

PRODUCT GRAPHIC

DECAL caution, keep off while machine is in motion

2шт.

2

1300076C1

DECAL

caution, keep off while machine is in motion (French)

2шт.

2

222847C1

DECAL

caution, keep off while machine is in motion (Spanish)

2шт.

2

1300338C1

DECAL

caution, keep off while machine is in motion (German)

2шт.

3

1319494C1

PRODUCT GRAPHIC

DECAL danger, do not enter grain tank, 102 x 121 mm

3шт.

3

1319919C1

DECAL

danger, do not enter grain tank, 102 x 121 mm (French)

3шт.

3

1319923C1

DECAL

danger, do not enter grain tank, 102 x 121 mm (Spanish)

3шт.

3

1319921C1

DECAL

danger, do not enter grain tank, 102 x 121 mm (German)

3шт.

3

1319495C1

PRODUCT GRAPHIC

DECAL danger, do not enter grain tank, 152 x 149 mm

2шт.

3

1319920C1

DECAL

danger, do not enter grain tank, 152 x 149 mm (French)

2шт.

3

1319924C1

DECAL

danger, do not enter grain tank, 152 x 149 mm (Spanish)

2шт.

3

1319922C1

DECAL

danger, do not enter grain tank, 152 x 149 mm (German)

2шт.

4

188198C1

PRODUCT GRAPHIC

DECAL caution, disengage separator clutch and shut off engine

1шт.

4

1300126C1

DECAL

caution, disengage separator clutch and shut off engine (French)

1шт.

4

1300371C1

DECAL

caution, disengage separator clutch and shut off engine (Spanish)

1шт.

4

1300370C1

DECAL

caution, disengage separator clutch and shut off engine (German)

1шт.

5

188199C1

PRODUCT GRAPHIC

DECAL caution, disengage separator clutch and shut off engine before removing shield

2шт.

5

1300127C1

DECAL

caution, disengage separator clutch and shut off engine before removing shield (French)

2шт.

5

1300331C1

DECAL

caution, disengage separator clutch and shut off engine before removing shield (Spanish)

2шт.

5

1300330C1

DECAL

caution, disengage separator clutch and shut off engine before removing shield (German)

2шт.

6

188200C1

PRODUCT GRAPHIC

DECAL caution, keep out of engine compartment, replaced by Ref. 6A

2шт.

6a

181597A1

WARNING DECAL

Do not enter drive area when engine is running, Replaces Ref 6, (English)

2шт.

6

1300128C1

DECAL

caution, keep out of engine compartment (French)

2шт.

6

1300333C1

DECAL

caution, keep out of engine compartment (Spanish)

2шт.

6

1300332C1

DECAL

caution, keep out of engine compartment (German)

2шт.

7

2753929R5

DECAL

caution, for safe operation

1шт.

7

1300134C3

DECAL

caution, for safe operation (French)

1шт.

7

1300391C3

DECAL

caution, for safe operation (Spanish)

1шт.

7

1300390C3

DECAL

caution, for safe operation (German)

1шт.

8

179749C2

PRODUCT GRAPHIC

DECAL danger, do not open until engine and all mechanism have stopped

7шт.

8

1300048C1

DECAL

danger, do not open until engine and all mechanism have stopped (French)

7шт.

8

1300323C1

DECAL

danger, do not open until engine and all mechanism have stopped (Spanish)

7шт.

8

1300322C1

DECAL

danger, do not open until engine and all mechanism have stopped (German)

7шт.

11

189922C3

DECAL

danger, always place fedder lock in position

2шт.

11

1300130C2

DECAL

danger, always place fedder lock in position (French)

2шт.

11

1300377C2

DECAL

danger, always place fedder lock in position (Spanish)

2шт.

11

1300376C2

DECAL

danger, always place fedder lock in position (German)

2шт.

13

188815C1

DECAL

caution, shut off engine before shifting rotor drive

2шт.

13

1300339C1

DECAL

caution, shut off engine before shifting rotor drive (French)

1шт.

13

1300341C1

DECAL

caution, shut off engine before shifting rotor drive (Spanish)

1шт.

13

1300340C1

DECAL

caution, shut off engine before shifting rotor drive (German)

1шт.

14

185035C1

PRODUCT GRAPHIC

DECAL caution, shut off engine before adjusting concave

1шт.

14

130058C1

HYD TUBE

DECAL caution, shut off engine before adjusting concave (French)

1шт.

14

1300353C1

DECAL

caution, shut off engine before adjusting concave (Spanish)

1шт.

14

1300352C1

DECAL

caution, shut off engine before adjusting concave (German

1шт.

16

185442C1

DECAL

caution, engine must be shut off

2шт.

16

1300114C1

DECAL

caution, engine must be shut off (French)

1шт.

16

1300385C1

DECAL

caution, engine must be shut off (Spanish)

1шт.

16

1300384C1

DECAL

caution, engine must be shut off (German)

1шт.

18

1327760C1

DECAL

danger, keep hand out of auger sump

1шт.

18

1329722C1

DECAL

danger, keep hand out of auger sump (French)

1шт.

18

1329723C1

DECAL

danger, keep hand out of auger sump (Spanish)

1шт.

18

1329724C1

DECAL

danger, keep hand out of auger sump (German)

1шт.

19

1327761C1

DECAL

warning, avoid injury from rotating spreader or thrown material

1шт.

19

1329725C1

DECAL

warning, avoid injury from rotating spreader or thrown material (French)

1шт.

19

1329726C1

DECAL

warning, avoid injury from rotating spreader or thrown material (Spanish)

1шт.

19

1329727C1

DECAL

warning, avoid injury from rotating spreader or thrown material (German)

1шт.

21

1310710C1

DECAL

caution, do not engage four wheel drive

1шт.

21

1300613C1

DECAL

caution, do not engage four wheel drive (French)

1шт.

21

1300689C1

DECAL

caution, do not engage four wheel drive (Spanish)

1шт.

21

1300614C1

DECAL

caution, do not engage four wheel drive (German)

1шт.

27

1541591C1

DECAL

warning, the vertical unloader auger will drop free

1шт.

27

1541608C1

DECAL

warning, the vertical unloader auger will drop free (French)

1шт.

27

1541604C1

DECAL

SPARE PART warning, the vertical unloader auger will drop free (Spanish)

1шт.

27

1541605C1

DECAL

warning, the vertical unloader auger will drop free (German)

1шт.

28

1546335C1

WARNING DECAL

The force required to lower this ladder changes

1шт.

28

107046A1

DECAL

warning, the force required to lower this ladder changes (French)

1шт.

28

107047A1

DECAL

warning, the force required to lower this ladder changes (Spanish)

1шт.

28

107048A1

DECAL

warning, the force required to lower this ladder changes (German)

1шт.

29

ZA740950

DECAL

warning, shields are provided, replaced by 144385A1 Ref. 29A, (English)

3шт.

29a

144385A1

WARNING DECAL

Shields are provided to guard these moving parts, replaces Ref. 29, (English)

3шт.

29

1326076C1

DECAL

warning, shields are provided (French)

3шт.

29

1326077C1

DECAL

warning, shields are provided (Spanish)

3шт.

29

1326078C1

DECAL

warning, shields are provided (German)

3шт.

30

181597A1

WARNING DECAL

Do not enter drive area when engine is running, Not shown (English)

1шт.

Выбрано товаров: 79
