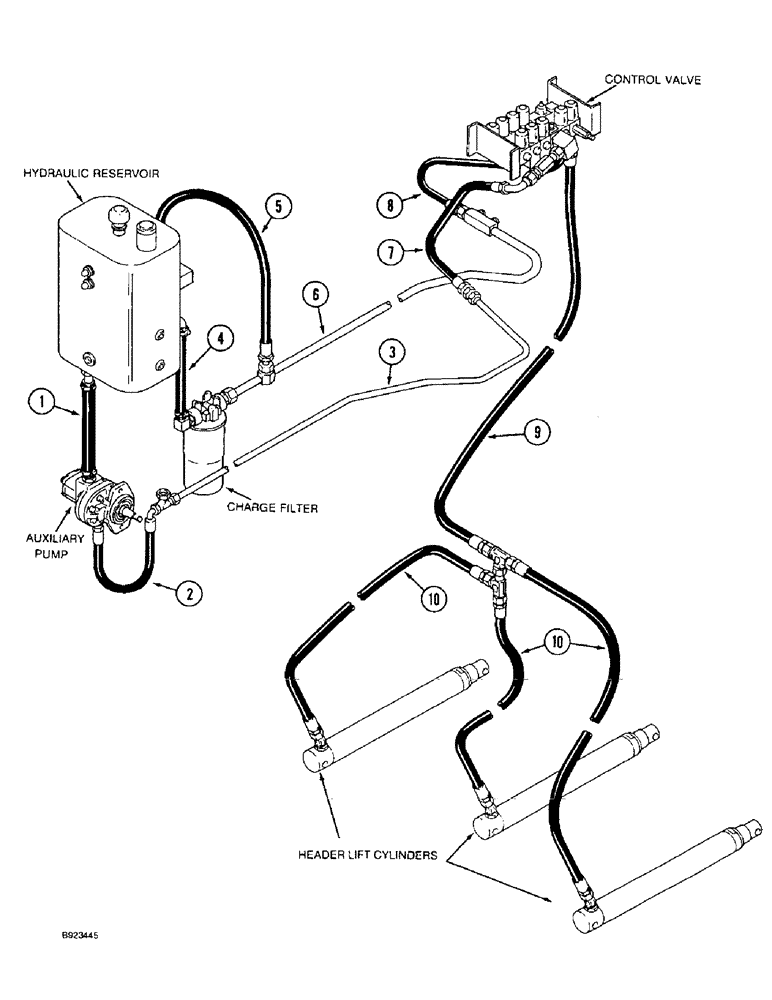

Запчасти Case IH 1644 (1-16) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Header Lift Suction Hose, Figure 8-18

1шт.

2

Auxiliary Pump Pressure Hose, Figure 8-18

1шт.

3

Header Lift Pressure Tube, Figure 8-18

1шт.

4

Reservoir to Filter Return Hose, Figure 8-20

1шт.

5

Relief Valve Drain Hose, Figure 8-20

1шт.

6

Valve Return Tube, Figure 8-20

1шт.

7

Lift Pressure Hose, Figure 8-18

1шт.

8

Valve Drain Hose, Figure 8-20

1шт.

9

Header Lift Cylinder Supply Hose, Figure 8-24, 8-26

1шт.

10

Header Lift Cylinder Hose, Figure 8-24, 8-26

1шт.
