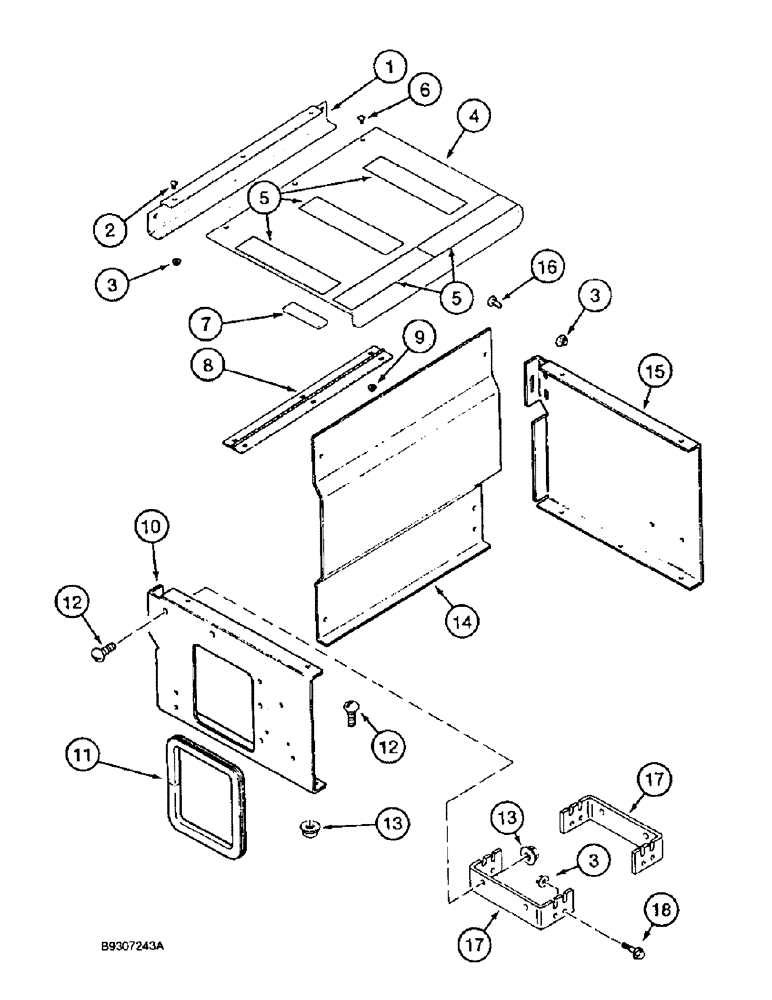

Запчасти Case IH 1644 (9H-20) - VALVE BOX (12) - CHASSIS

1

1989346C1

CHANNEL

valve box, top

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head 5/16 NC x 1/2 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

1989344C2

COVER ASSY

valve box upper

1шт.

5

D55216

PAD,2" x 9"

5шт.

6

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

6шт.

7

1989553C1

CATCH

magnetic

2шт.

8

1989347C1

HINGE

valve box support

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

10

1338306C1

SHEET

SUPPORT valve box, rear

1шт.

11

1989613C1

SEAL

TRIM edge 20-1/2 inch (521 mm) long, cut from 1330108CX bulk trim see below, valve box support

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special 3/8 NC x 3/4 inch

1шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.

14

1338304C2

SHEET ASSY.

SUPPORT valve box, left hand

1шт.

15

1338305C3

SUPPORT

valve box, front

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head 5/16 NC x 1/2 inch

4шт.

17

1989373C3

SUPPORT

valve stack

2шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.
