Запчасти Case IH 1644 (9H-18) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

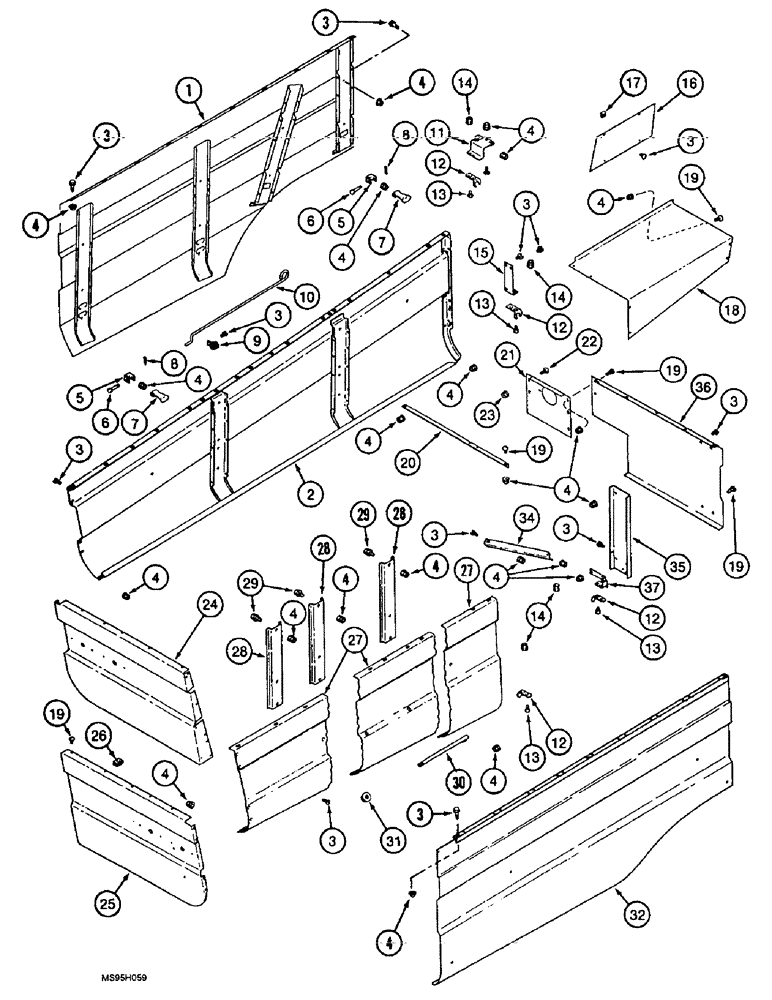

Схема запчастей Case IH 1644 - (9H-18) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS
6
4
8
19
9
27
18
20
3
4
8
4
14
3
4
17
23
4
3
5
26
37
19
3
24
3
32
6
26
4
25
13
35
12
4
13
14
14
12
4
4
19
28
4
3
4
11
19
5
4
3
31
4
30
3
28
29
4
28
22
7
7
4
3
4
4
3
12
21
13
27
13
10
19
12
2
1
34
16
29
3
15

Артикул

Название

Примечание

Количество

1

139776A3

DOOR ASSY.

left hand, forward replaces 186789C1 support

1шт.

2

193733C3

PANEL

SHIELD rear trim, left hand replaces 193733C2 shield support

1шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

63шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

98шт.

5

188103C1

BRACKET

BRACKET hood anchor

4шт.

6

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

4шт.

7

494307C1

LATCH

hold down, latch

4шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

9

363660R1

CLIP

CLAMP trim panel brace

2шт.

10

183444C1

ROD

tank lower door, left hand

1шт.

10

183242C1

ROD

tank lower door, right hand

1шт.

11

182834C2

SUPPORT

latch, left hand front

1шт.

12

764071C1

BRACKET

HOOK latch

4шт.

13

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

8шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

15

188156C2

SUPPORT

trim rear catch

1шт.

16

188160C2

SUPPORT ASSY.

PLATE cab, lower right hand front

1шт.

17

488837C1

SPRING NUT

speed 5/16 inch NC

2шт.

18

193443C2

SUPPORT

feeder drive, upper

1шт.

19

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head 5/16 NC x 3/4 inch

31шт.

20

194604C3

ANGLE BAR

shield support

1шт.

21

194452C2

SUPPORT

gear case, front

1шт.

22

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

2шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

193811C4

SUPPORT

tail lamp, left hand

1шт.

25

193812C5

SHEET

SUPPORT tail lamp, right hand replaces 193812C4 support

1шт.

26

488837C1

SPRING NUT

speed 5/16 inch NC

6шт.

27

193734C7

PANEL

SHIELD rear trim, right hand replaces 193734C5 shields

1шт.

28

1319563C1

SUPPORT

handle

2шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

30

1251832C2

HANDLE

assist

1шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

32

139777A3

HOOD

DOOR right hand, forward replaces 186790C1 support

1шт.

34

194639C1

ANGLE

right hand front shield support

1шт.

35

194640C3

CONDUIT

SUPPORT shield, right hand front

1шт.

36

1346947C2

SHEET ASSY.

SUPPORT lower, right hand front

1шт.

37

1345118C1

SUPPORT

BRACKET front right hand latch

1шт.

Выбрано товаров: 37
