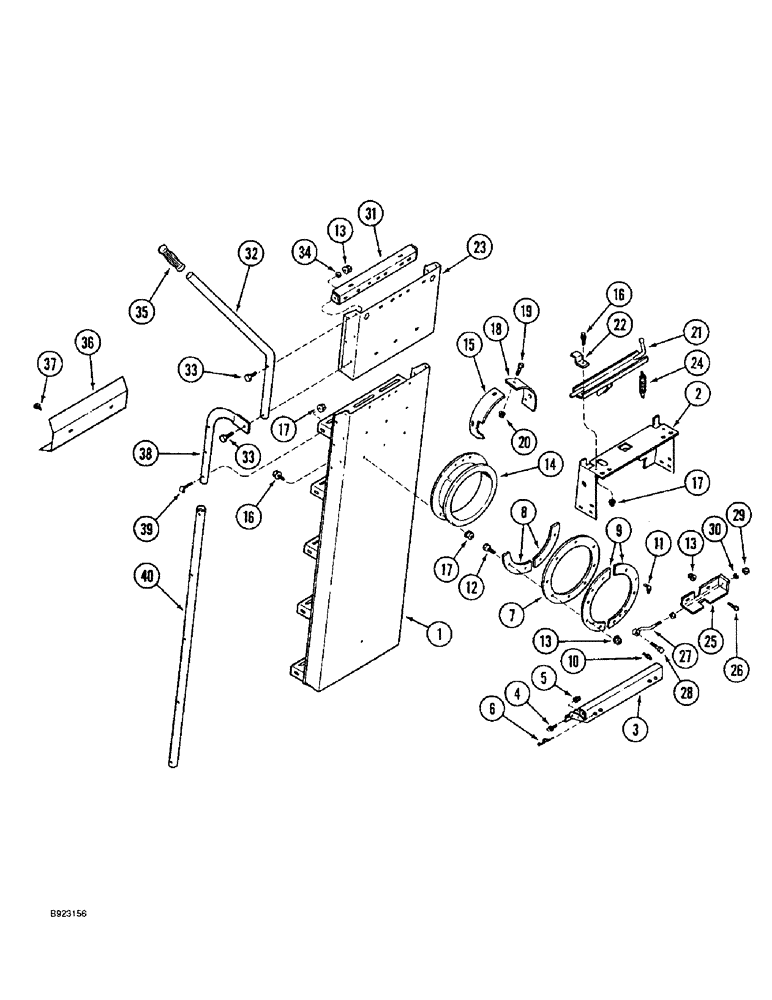

Запчасти Case IH 1644 (9H-14) - PIVOTING LADDER (12) - CHASSIS

1

1317520C91

LADDER

pivoting with decal

1шт.

2

187941C1

SUPPORT

pivot extension

1шт.

3

187949C2

SUPPORT

pivot extension center lever

1шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

6

1978738C1

HAIR PIN COTTER

2шт.

7

187951C1

RETAINER

pivot outer

1шт.

8

187952C1

RETAINER

pivot ring

2шт.

9

187953C1

RETAINER

pivot ring lube

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

2шт.

12

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

9шт.

13

231-5146

FLANGE NUT,3/8"-16

12шт.

14

187955C3

FLANGE

ladder pivot

1шт.

15

187984C3

SUPPORT

ladder latch

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

18

1301172C3

SUPPORT

ladder latch adjusting

1шт.

19

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

20

231-5315

FLANGE NUT,Flg, 5/16"-18

2шт.

21

187957C1

LEVER

ladder pivot latch

1шт.

22

187962C1

SUPPORT

latch hinge

2шт.

23

1318805C2

SUPPORT

CHANNEL ladder extension

1шт.

24

398763R2

SPRING

latch return

1шт.

25

1301262C2

STOP

SUPPORT latch

1шт.

26

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

27

1301260C1

EYEBOLT,3/8" - 16 x 72.91mm

special, latch adjusting

1шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

183544C2

SUPPORT

ladder pivot

2шт.

32

1324845C1

ROD

HANDLE pivot ladder

1шт.

33

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

34

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

1шт.

35

1324841C2

GRIP

handle pivot ladder lever

1шт.

36

1321370C1

SUPPORT

pivoting ladder, upper

1шт.

37

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

self tapping, hex washer head 1/4 NC x 3/8 inch

2шт.

38

1317397C1

ROD

HANDRAIL ladder support, upper

2шт.

39

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

curved head 5/16 NC x 1-1/2 inch

10шт.

40

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

HANDRAIL ladder support, lower

2шт.
