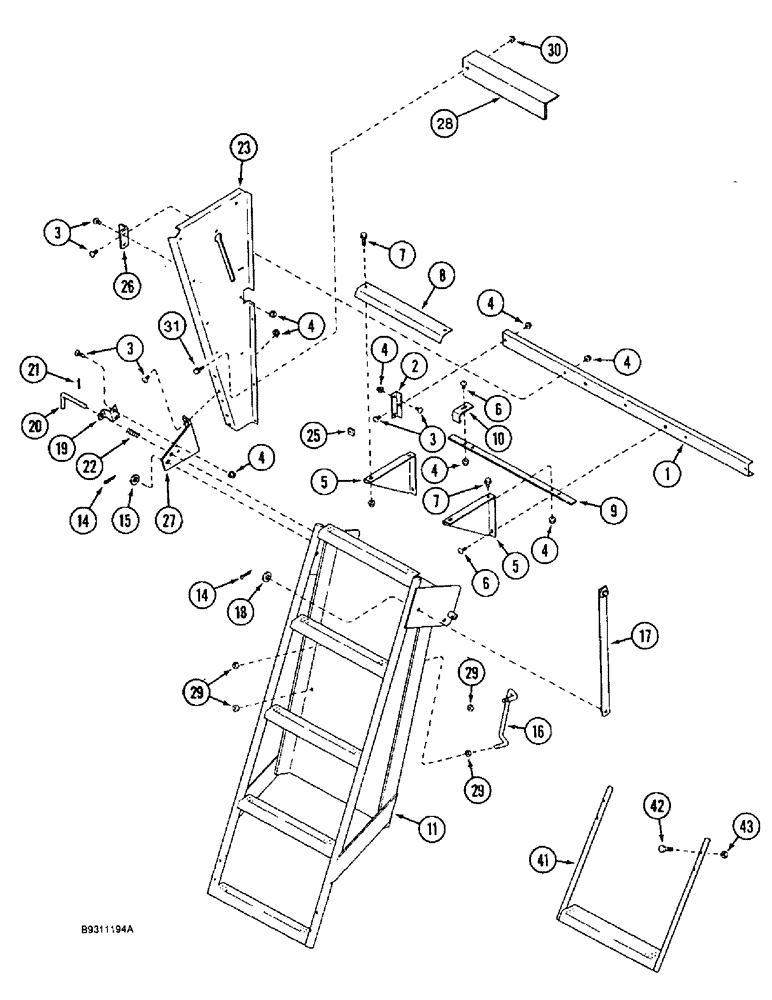

Запчасти Case IH 1644 (9H-10) - SERVICE LADDER, EXTENSION (12) - CHASSIS

1

185399C2

CHANNEL

ladder upper support

1шт.

2

194311C1

ANGLE

BRACKET mounting, upper support ladder

2шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head 5/16 NC x 3/4 inch

24шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

5

1347489C1

SUPPORT

BRACKET upper step ladder

2шт.

6

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head 5/16 NC x 1 inch

3шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

8

1327607C1

PLATE

STEP angle, upper ladder

1шт.

9

1319722C1

BAR

upper step support

1шт.

10

1321975C1

BRACKET

ladder stop

1шт.

11

1319766C93

LADDER

rear service, includes decal replaces 1319766C91 ladder

1шт.

14

432-1212

COTTER PIN,3/16" x 3/4"

4шт.

15

495-11066

WASHER,5/8", SAE

flat 21/32 x 1-5/16 x 3/32 inch

6шт.

16

1329715C1

HANDLE

ladder

1шт.

17

1321698C1

LINK

ladder slip

1шт.

18

495-81024

WASHER,17/32" x 1 1/4" x .060"

flat 17/32 x 1-1/4 x 1/16 inch

2шт.

19

1319739C1

BRACKET

ladder pin

1шт.

20

1319740C1

PIN

ladder support

1шт.

21

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1/8" x 13/16", Slotted

1шт.

22

540815R1

SPRING

lock pin ladder

1шт.

23

185404C4

SIDE PLATE

BRACE ladder, left hand

1шт.

24

185405C4

SIDE PLATE

BRACE ladder, right hand not shown

1шт.

25

488837C1

SPRING NUT

speed 5/16 inch NC

4шт.

26

1327997C1

ANGLE

BRACKET mounting, channel upper step

2шт.

27

1319738C1

BRACKET

ladder pivot

2шт.

28

111044A1

LARGE PLATE

PLATE, LARGE SUPPORT ladder front opening

1шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.
