Запчасти Case IH 1644 (9H-08) - SEPARATOR SIDES (12) - CHASSIS

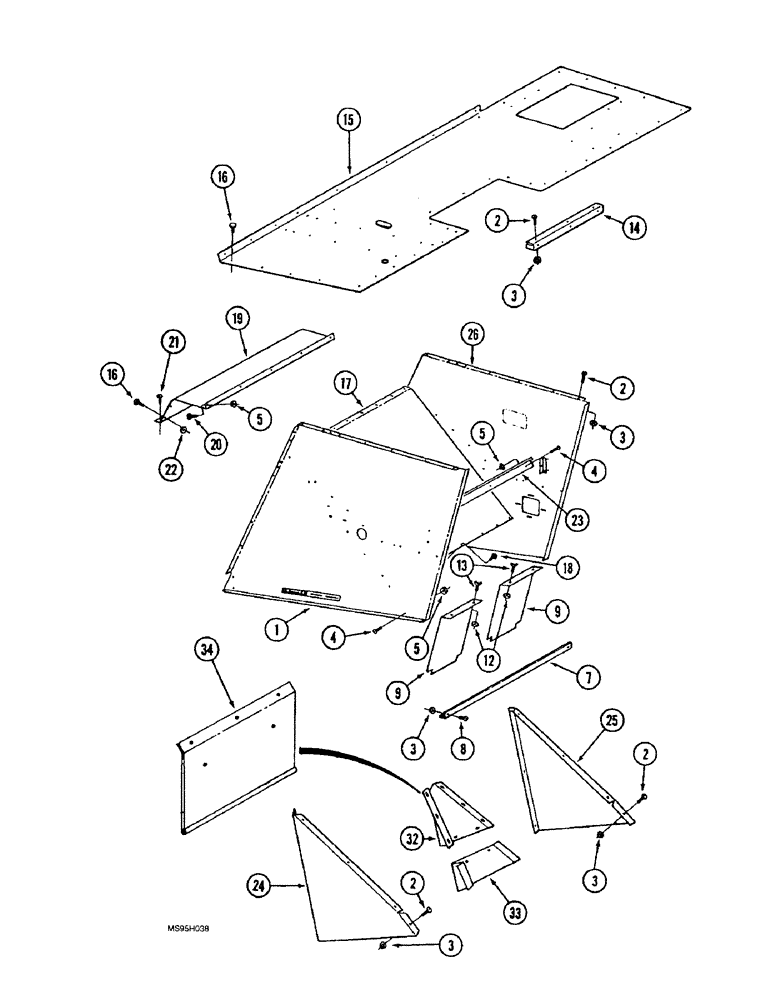

Схема запчастей Case IH 1644 - (9H-08) - SEPARATOR SIDES (12) - CHASSIS
15
26
9
33
8
9
4
16
25
1
23
3
2
22
34
24
3
12
20
2
2
7
13
19
18
32
3
5
17
4
14
3
3
21
16
2
5
5

Артикул

Название

Примечание

Количество

1

192378C9

SHEET

SIDE separator, left hand replaces 192378C7 side

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head 5/16 NC x 3/4 inch (13-23)

13шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(57-67)

57шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

6шт.

5

231-5146

FLANGE NUT,3/8"-16

14шт.

7

192309C2

ANGLE

rear support

1шт.

8

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head 5/16 NC x 1 inch

3шт.

9

1300294C91

SUPPORT

hood rear access, includes decals

2шт.

12

488837C1

SPRING NUT

speed 5/16 inch NC

4шт.

13

183-123

THUMB SCREW

thumb with shoulder 5/16 NC x 3/4 inch rear hood support

4шт.

14

186971C1

ANGLE

rear deck support

1шт.

15

1317744C3

HOOD

SUPPORT rear deck

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head 5/16 NC x 1/2 inch

32шт.

17

1324988C3

DEFLECTOR

straw discharge replaces 1324988C2 deflector

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

19

1541957C1

SHEET

SUPPORT engine deck

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special 3/8 NC x 3/4 inch

8шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

5шт.

22

488837C1

SPRING NUT

speed 5/16 inch NC

5шт.

23

194305C1

ANGLE

deflector stiffener

1шт.

24

1302105C1

DEFLECTOR

SUPPORT corner, left hand

1шт.

25

1302106C1

DEFLECTOR

SUPPORT corner, right hand

1шт.

26

195620A1

SHEET

SIDE separator, right hand replaces 185281C5 support, Includes: Ref. 27

1шт.

27

185442C1

DECAL

caution, engine must be shut off not shown

1шт.

32

1319485C1

DEFLECTOR

rear hood if used

1шт.

33

1321019C1

DEFLECTOR

guard if used

1шт.

34

115497A1

DEFLECTOR

rotor discharge rear hood

1шт.

Выбрано товаров: 27
