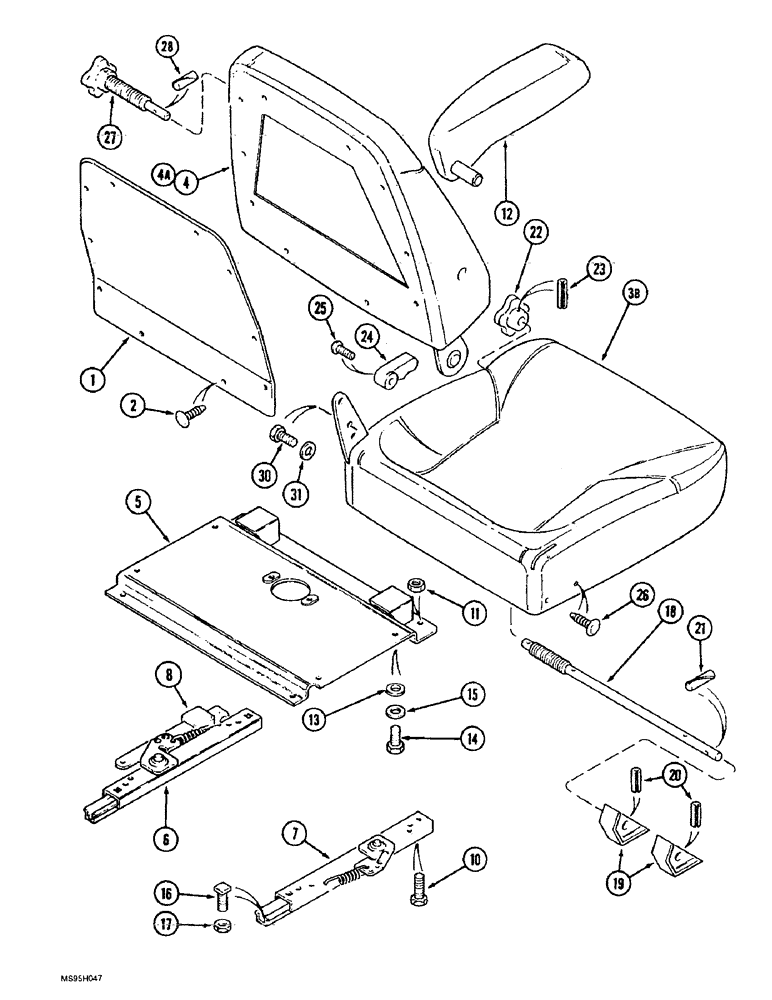

Запчасти Case IH 1644 (9G-32) - AIR SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY operators air suspension, also includes Refs. on Figure 9G-34, Includes: Ref. 1 - 3

1шт.

1

1974713C2

PACKAGE

KIT backrest cover and retainers, Includes: Ref. 2

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

2

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

3

136336A1

CUSHION, SEAT

cushion pad only, cloth with horizontal center lines, replaces 1974701C2, not shown

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

3b

132885A1

CUSHION

seat pad only, cloth, Includes: Ref. 4 - 12

1шт.

4

1974702C2

PACKAGE,SERVICE

CUSHION backrest, includes 44 retainer rings

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

4a

NSS

NOT SOLD SEPARAT

PAD backrest

1шт.

4b

NSS

NOT SOLD SEPARAT

RING hog, not shown

25шт.

5

134180A1

PLATE

seat adapter, replaces 1999904C1 plate

1шт.

1344248C1

SLIDE

KIT double locking slide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE locking, with handle, left-hand

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE locking, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB fore/aft, no longer available, order 1999691C1 kit

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

self-locking, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT armrest, left-hand

1шт.

13

1959679C1

SPACER

tubular, Includes: Ref. 14 - 31

4шт.

14

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

17

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

8шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT seat tilt

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

19

NSS

NOT SOLD SEPARAT

CAM seat tilt

2шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

2шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

21

NSS

NOT SOLD SEPARAT

PIN spiral

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB seat tilt, order 1999691C1 kit

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB seat, backrest tilt, order 1999691C1 kit

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW machine, oval head cross recess, 6 x 12 mm, order 1999691C1 kit

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

26

NSS

NOT SOLD SEPARAT

CLIP retaining

4шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

27

NSS

NOT SOLD SEPARAT

KNOB lumbar control, no longer available, order 1999691C1 kit

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

28

38-11016

LOCK PIN,5/32" x 1", Slotted

Order 199969C1 kit

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

29

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.

30

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

1344004C4

SEAT ASSY.

KIT seat cushion and backrest, without suspension, cloth, replaces 1344004C3, Includes: Ref. 1, 2, 3, 4, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, and 30

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob includes Ref. 8, 22, 23, 24, 25, 27, and 28 above

1шт.
