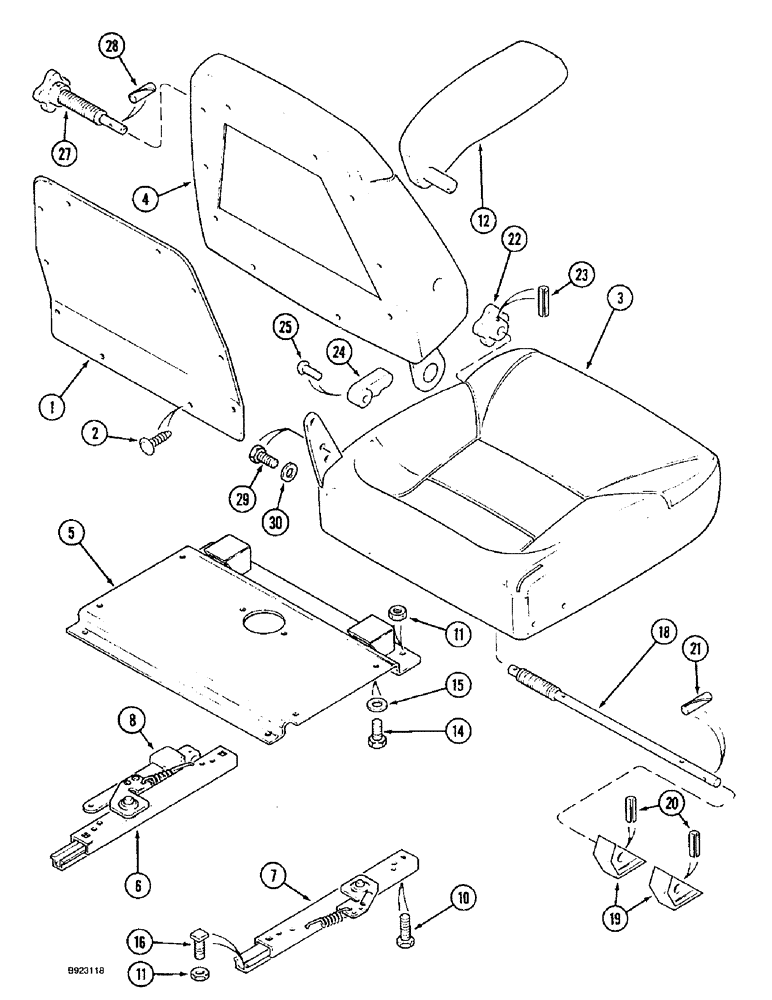

Запчасти Case IH 1644 (9G-26) - MECHANICAL SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990651C1

SEAT

ASSEMBLY mechanical suspension, also includes Refs. on Figure 9G-28 and 9G-30, Includes: Ref. 1 - 31

1шт.

1

1981820C1

PACKAGE, REPAIR

KIT back cover service, Includes: Ref. 2

1шт.

Part of P/N 1981813C3 Seat and Backrest Cushion Kit

1шт.

2

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

3

136335A1

CUSHION, SEAT

PAD seat, replaces 1981815C2 cushion

1шт.

Part of P/N 1981813C3 Seat and Backrest Cushion Kit

1шт.

4

127369A1

BACKREST COVER

CUSHION

1шт.

Part of P/N 1981813C3 Seat and Backrest Cushion Kit

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT backrest cushion

1шт.

Part of P/N 1981813C3 Seat and Backrest Cushion Kit

1шт.

5

1999781C1

SEAT SUPPORT

PLATE slide adapter, replaced by 136316A1 Ref. 5A plate

1шт.

5a

136316A1

LARGE PLATE

PLATE, LARGE adapter seat, not shown, replaces 1999781C1 Ref. 5 plate

1шт.

1344248C1

SLIDE

KIT double locking, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE locking, left handle

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE locking, right handle

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB fore/aft

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

hex, self-locking, 5/16 inch NC

8шт.

12

1981818C1

ARMREST

KIT armrest, left-hand

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

1981813C3

PACKAGE, REPAIR

KIT seat and backrest cushion, Includes: Ref. 1, 3, 4, and 18 - 30

1шт.

1343826C2

SHAFT ASSY.

tilt, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT seat tilt

1шт.

19

NSS

NOT SOLD SEPARAT

CAM seat tilt

2шт.

20

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

2шт.

21

NSS

NOT SOLD SEPARAT

PIN spiral

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

23

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB seat, backrest tilt

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW machine, oval head cross recess, 6 x 12 mm

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

27

1999691C1

PACKAGE,SERVICE

KIT seat knob upper, Includes: Ref. 8, 22, 23, 24, 25 and 28

1шт.

28

NSS

NOT SOLD SEPARAT

PIN roll, 5/32 x 1 inch

1шт.

Part of P/N 1999691C1 Seat Knob Kit

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

31

1999779C1

STRIPPER PACKAGE

KIT christmas tree, backrest, package of 4, not shown

1шт.
