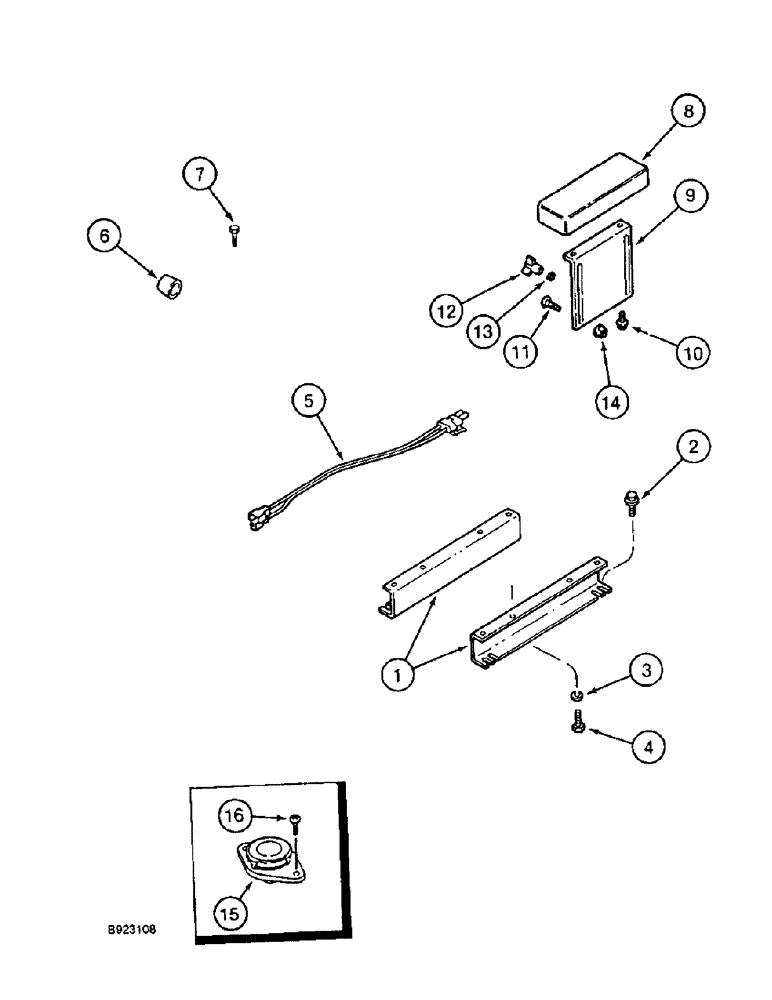

Запчасти Case IH 1644 (9G-22) - OPERATORS SEAT, MOUNTING (10) - CAB & AIR CONDITIONING

1

1979726C3

SUPPORT

BRACKET seat supporting

2шт.

2

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

self-locking, hex flange, special, 5/16 NC x 3/4 inch

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

1345209C1

HARNESS

seat switch

1шт.

6

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

7

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

Seat mounting

4шт.

8

1301216C3

ARMREST

seat

1шт.

9

192999C1

SUPPORT

arm rest mounting

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

12

196970C1

KNOB

arm rest

2шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

14

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

2шт.

15

1983395C1

IGNITION SWITCH

seat

1шт.

16

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.
