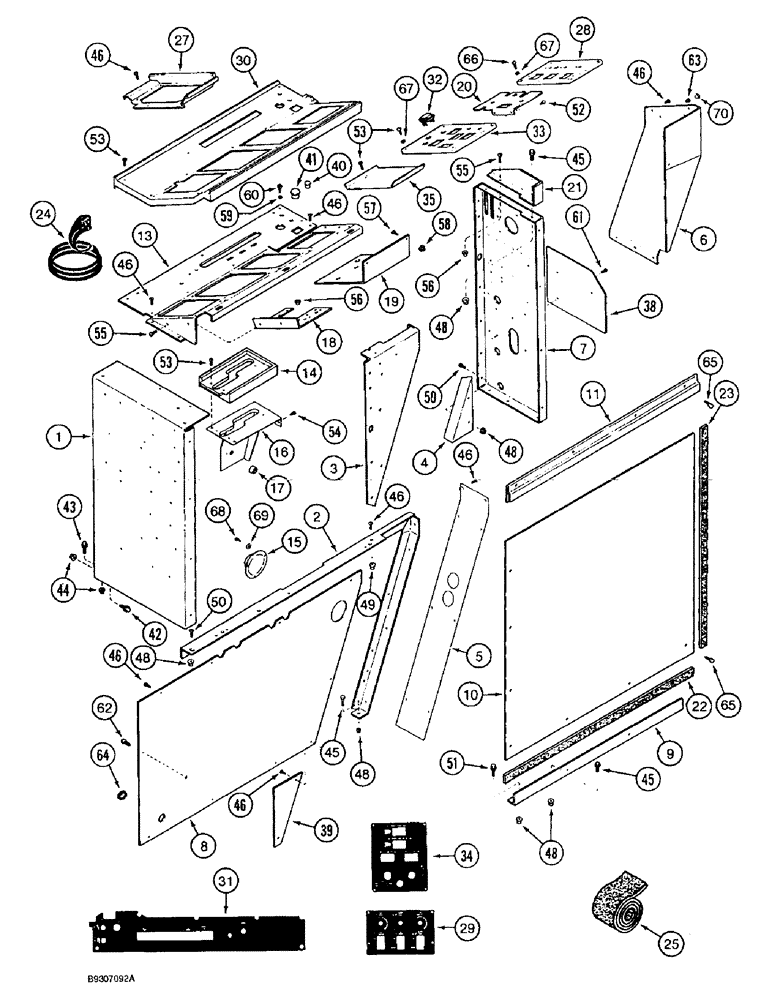

Запчасти Case IH 1644 (9G-16) - CAB, RIGHT-HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

1321966C3

SUPPORT

console, rear right hand

1шт.

2

193031C3

SUPPORT

FRAME console right hand, front

1шт.

3

195992C2

SUPPORT

console extension, right hand

1шт.

4

195991C1

SUPPORT

console extension, lower right hand

1шт.

5

1317106C1

SUPPORT

console exrension, front right hand

1шт.

6

1283101C2

SUPPORT

console exrension, lower front right hand

1шт.

7

1987556C2

COVER

SUPPORT console, front

1шт.

8

111614A1

LARGE PLATE

PLATE, LARGE inner right hand console

1шт.

9

193033C2

ANGLE

lower outer, right hand console

1шт.

10

1301218C2

COVER

PLATE outer right hand console

1шт.

11

1301334C1

SUPPORT

outer cover, right hand

1шт.

13

1301210C6

SUPPORT

upper console, right hand

1шт.

14

198988C1

COVER

hydrostatic drive support console

1шт.

15

1994886C1

COVER

inner plate propultion control

1шт.

16

1994841C1

SUPPORT

hydrastatic drive

1шт.

18

1280162C3

SUPPORT

fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT rear lamp machine control

1шт.

20

1280422C1

BRACKET

SUPPORT rear lamp front control

1шт.

21

1327501C1

SUPPORT

front panel

1шт.

22

1301228C1

STRIP

SEAL adhesive backed 26-11/16 inch (678 mm) long, cut from 105917C2 bulk

2шт.

23

187788C1

SEALING STRIP

SEAL adhesive backed, 27-13/64 inch (691mm) long, cut from 195917C2 bulk, right hand console cover

2шт.

24

1338050C1

STRIP

TRIM edge, 2 inch (51 mm) long, cut from 1330108CX bulk, rear support

1шт.

25

101301A1

TAPE insulation, 24 inch (610 mm) long, cut from 1954475C1 bulk, 2 for L.H. 1 for R.H.

1шт.

27

1280125C1

FRAME

control panel front

1шт.

28

1280158C2

PANEL

control front

1шт.

29

1280159C1

DECAL

header control panel

1шт.

30

87366C1

COVER

instrument panel, right hand console

1шт.

31

1327827C2

DECAL

right hand console instructions

1шт.

32

245334C1

PLUG

panel switch cover, right hand side

3шт.

195917C1

GASKET

SEAL bulk, foam, adhesive backed, 600 inch (15240 mm) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM edge, bulk 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.

33

1276211C1

PANEL

machine control

1шт.

34

1280167C2

DECAL

control panel (English)

1шт.

34

1957290C1

DECAL

control panel (French)

1шт.

34

1957291C1

DECAL

control panel (German)

1шт.

34

1957292C1

DECAL

control panel (Spanish)

1шт.

35

187573C1

COVER

fuse panel

1шт.

38

1327985C1

PLATE

hole cover, right hand front

1шт.

39

91705C1

PLATE

BAR right hand lower console

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

41

183617C1

PLUG

right hand console

1шт.

42

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

43

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

10шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

Polyseal

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

49

1254276C1

PUSH-ON NUT

push on type, 5/16 inch pal fastener

1шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

51

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

52

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

self tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

53

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self tapping, oval Phillips No. 10-16 x 3/4 inch

1шт.

54

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

self tapping, pan Phillips 1/4 NC x 1/2 inch

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

slotted truss head, 1/4 NC x 3/4 inch

3шт.

56

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

4шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

59

495-81117

WASHER,.344" x 1" x .120"

flat, 11/32 x 1 x 7/64 inch

3шт.

60

260-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self tapping, pan Phillips No. 10-16 x 3/4 inch

4шт.

61

261-1378

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

self tapping, pan Phillips 1/4 NC x 1/2 inch

3шт.

62

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

self tapping, hex washer head, 5/16 NC x 1 inch

1шт.

63

353-403

PLUG,Dome, .437" hole, Nylon

3шт.

64

353-254

PUSH BUTTON,1 1/4"

1-7/32 inch

1шт.

65

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

self tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

66

265-13516

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

self tapping, oval Phillips No. 10-16 x 1 inch

4шт.

67

1329968C1

WASHER

oval head, finishing No. 10

4шт.

68

260-1358

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

3шт.

69

395-31022

WASHER,#10

flat, 7/32 x 1/2 x 1/16 inch

3шт.

70

1321784C1

PLUG

nylon, 5/16 inch

2шт.
